Installation
20221495F 71

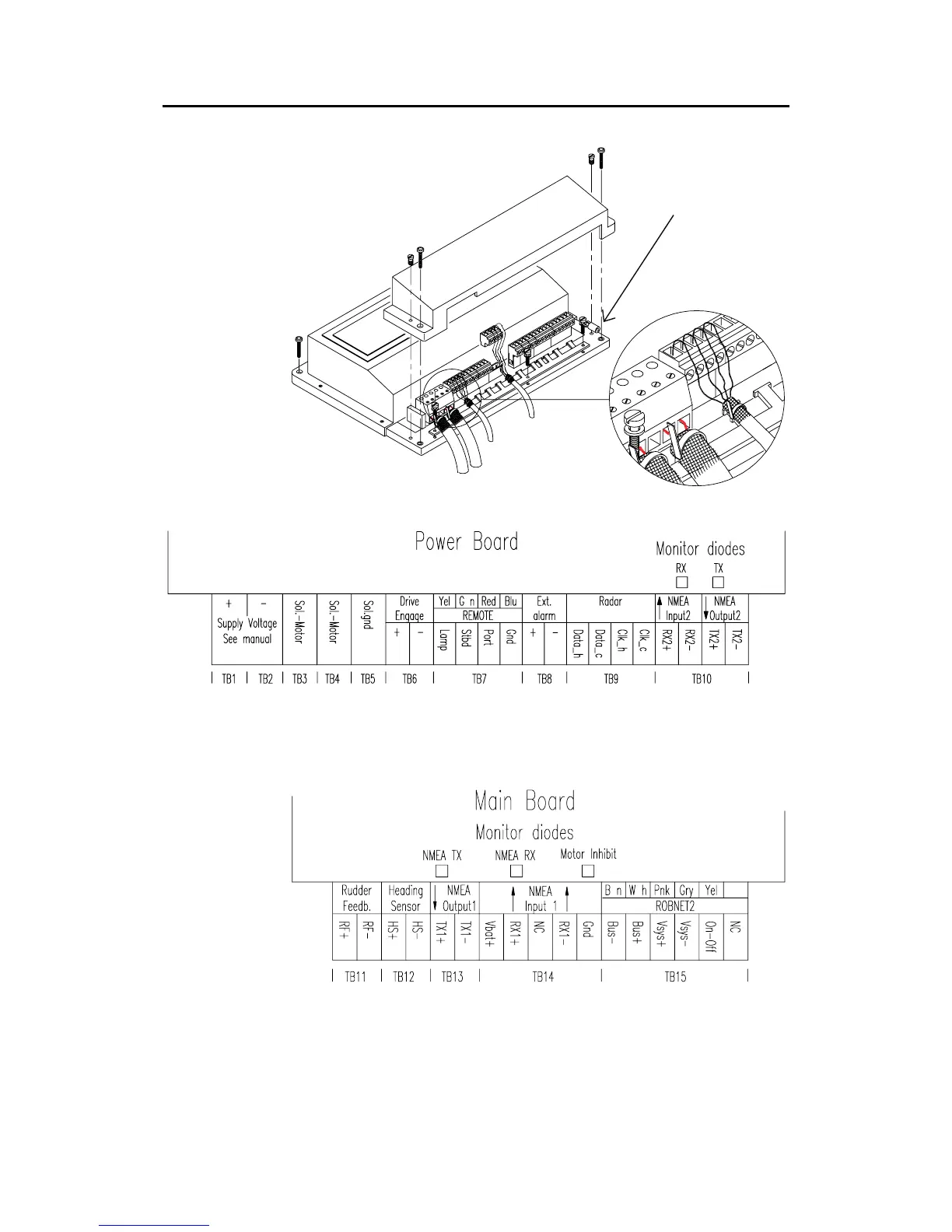

Power Board terminals
Main Board terminals
N
ote!
The Mains input
is not polarity
p
rotected on
A
C40.
Ground terminal
TB8, TB9 and TB10 are not
on the AC10 Power Board
