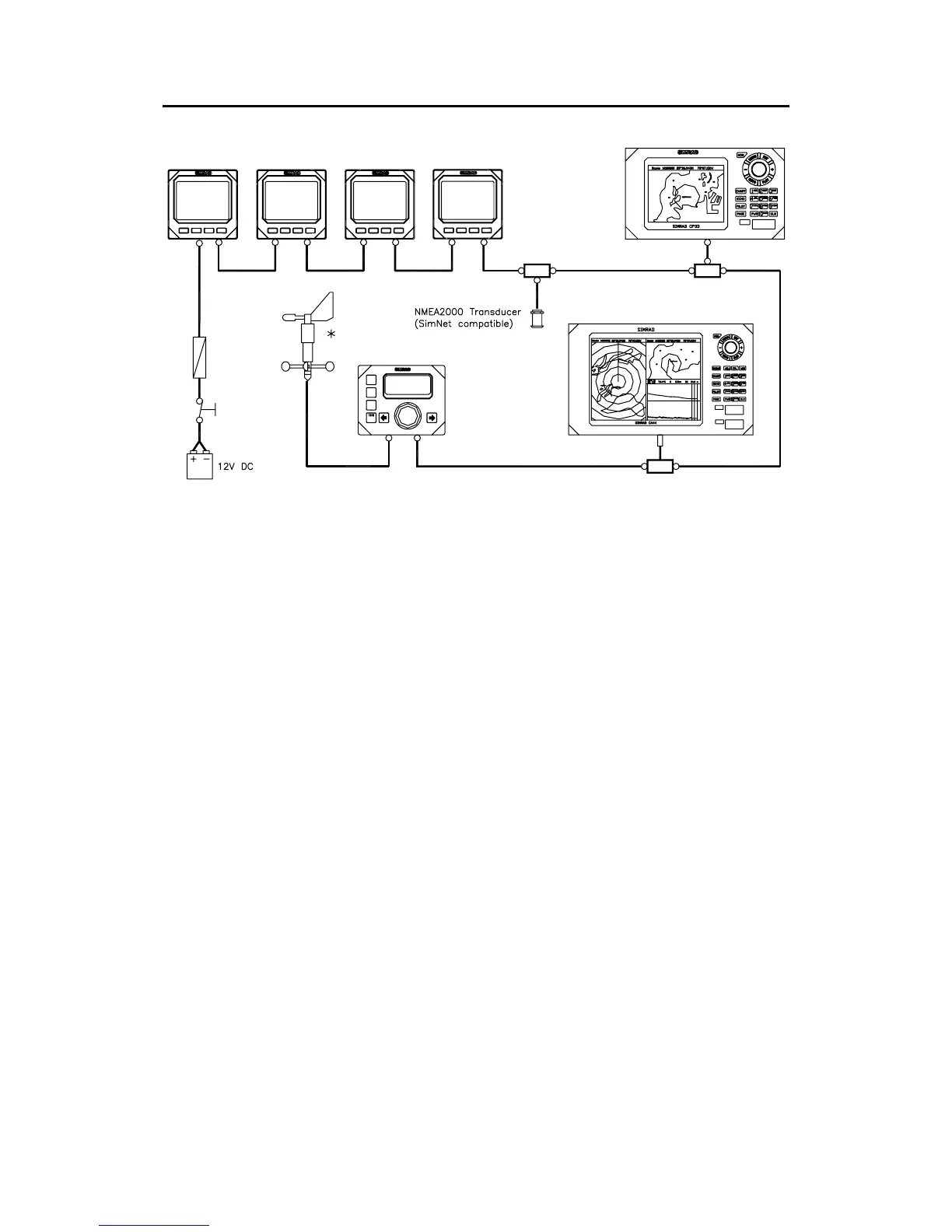

Figure 3-19 SimNet network, medium system
Notes !
1. Maximum total length of SimNet cable is 40 m (130 ft.)
excluding the 30 m (99 ft.) of masthead cable.
2. The wind transducer (*) has a built in terminator
3. If there is no wind transducer connected, a SimNet
terminator must be connected instead.
