Simrad HS52 GPS compass and DGPS navigator
14 20222360 / E

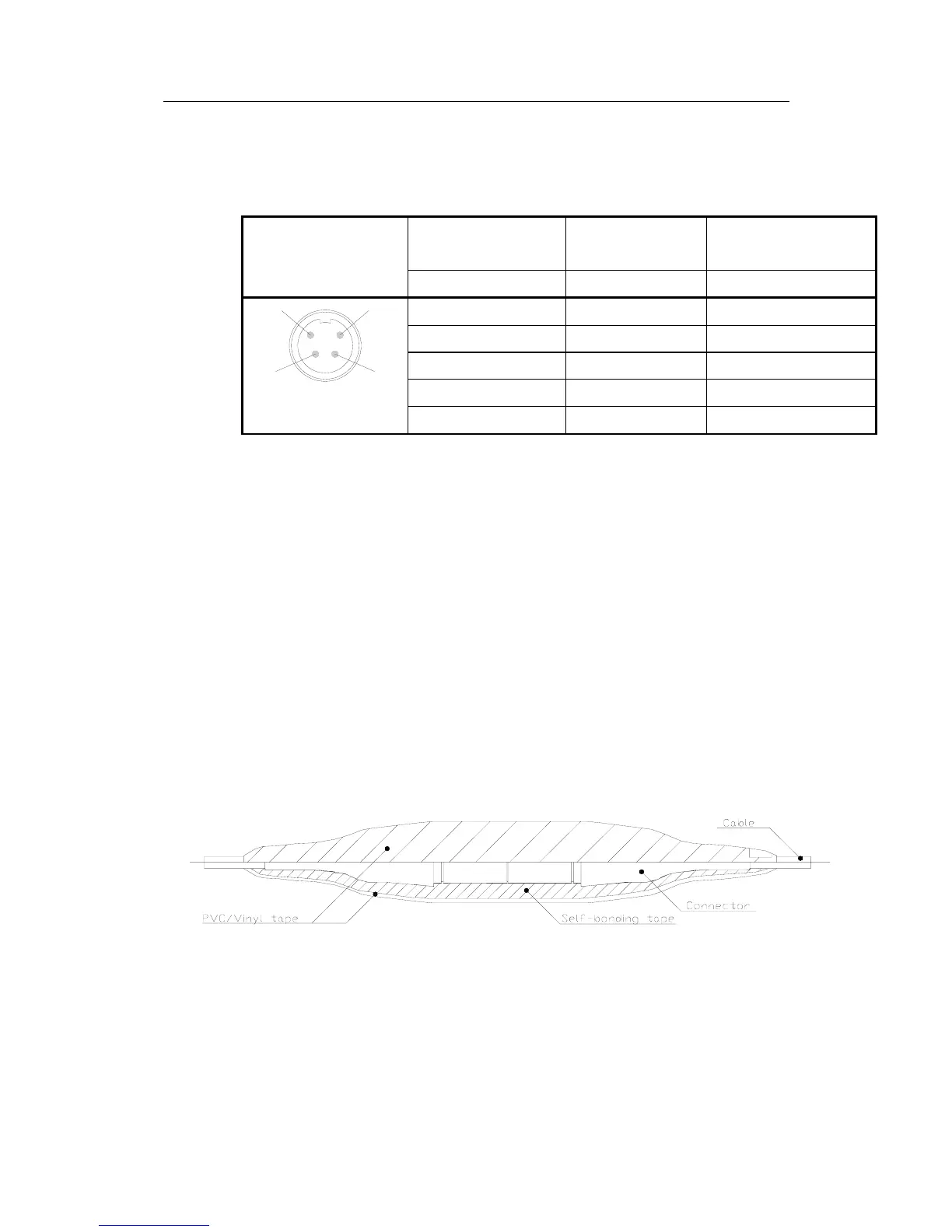

If the Sensor unit connector needs to be reconnected to the
cable, the wiring for the cable within the Sensor unit connector
is as follows:
Sensor Unit
Connector
Cable Wire
Signal Description
Pin no. No.
Connector housing Screen Shield
4 3 Receive
3 2 +24 VDC
2 4 Transmit
1
2
4
3
FRONT VIEW
1 1 Power ground
Waterproofing of Connectors
The Sensor unit connector junction has to be sealed with self-
bonding tape and PVC/Vinyl tape for waterproofing. Proceed as
follows:
1. Coil the self-bounding tape from one cable end to the other
as shown in the figure below. Use at least two layers with
tape. After coiling, make a bonding by pressure of fingers.
2. Coil at least two layers of PVC/Vinyl tape without stretching
as shown in the figure below. After coiling, make a bonding
by pressure of fingers.
