INSTALLATION
20222360 / E 31
Note! The advanced setup submenus are reserved for users with
dedicated responsibility for the Simrad HS52 product on board
the vessel.
Data Output
The Processing unit has two individually configurable output
serial lines.
On output line Data output 1 two RS-232 and two 422 serial
lines are available. The signal cables can be connected to both
terminal block P202 and P203.
On Data output 2 one RS-232 and one 422 serial lines are
available. The signal cables are to be connected to terminal
block P204.
Note! All six serial lines may be used simultaneously!

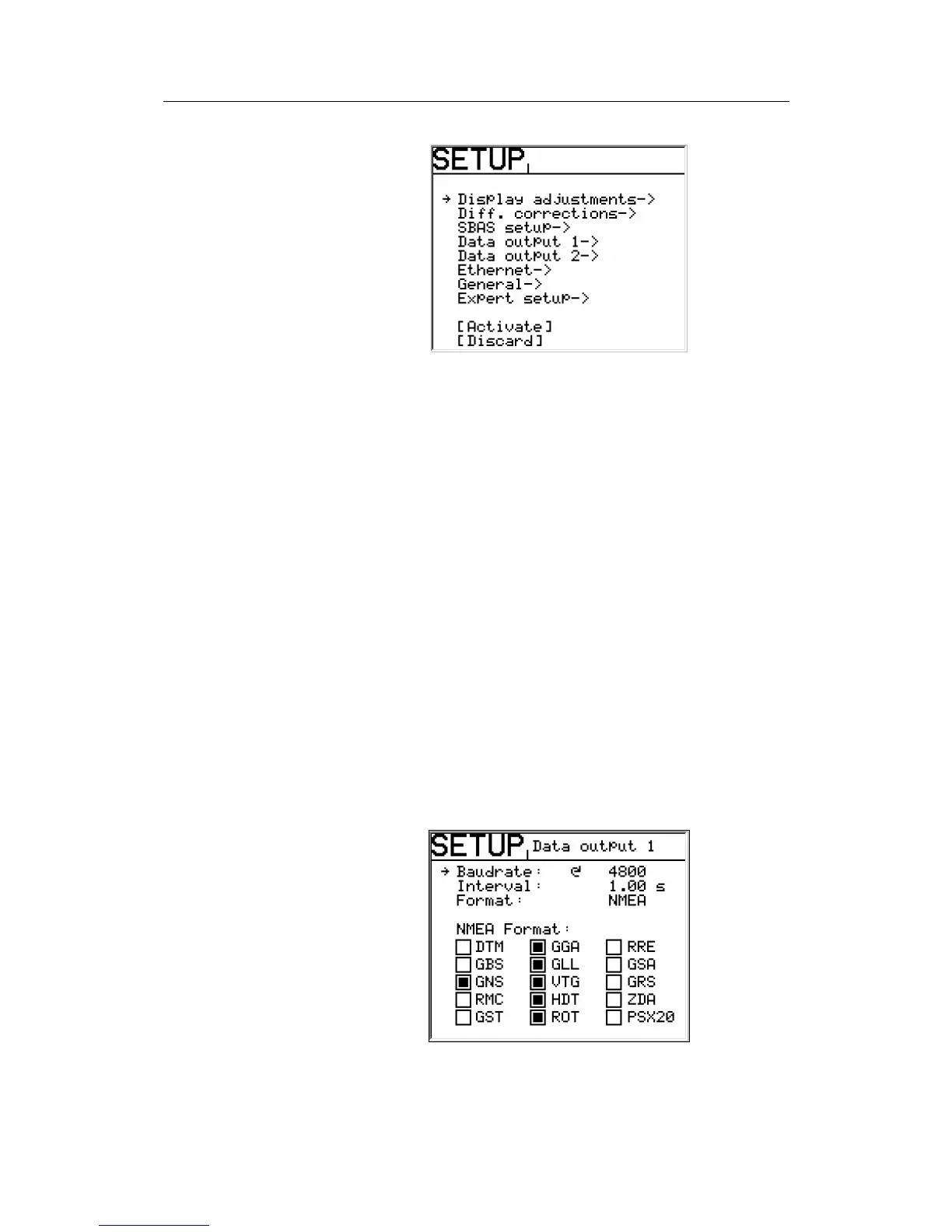

The setup of baud rate, interval and output formats for each port
is performed in the Data output 1 and Data output 2 submenu.
The signal has always none parity, 8 data bits, 1 stop bits and no
handshake.
