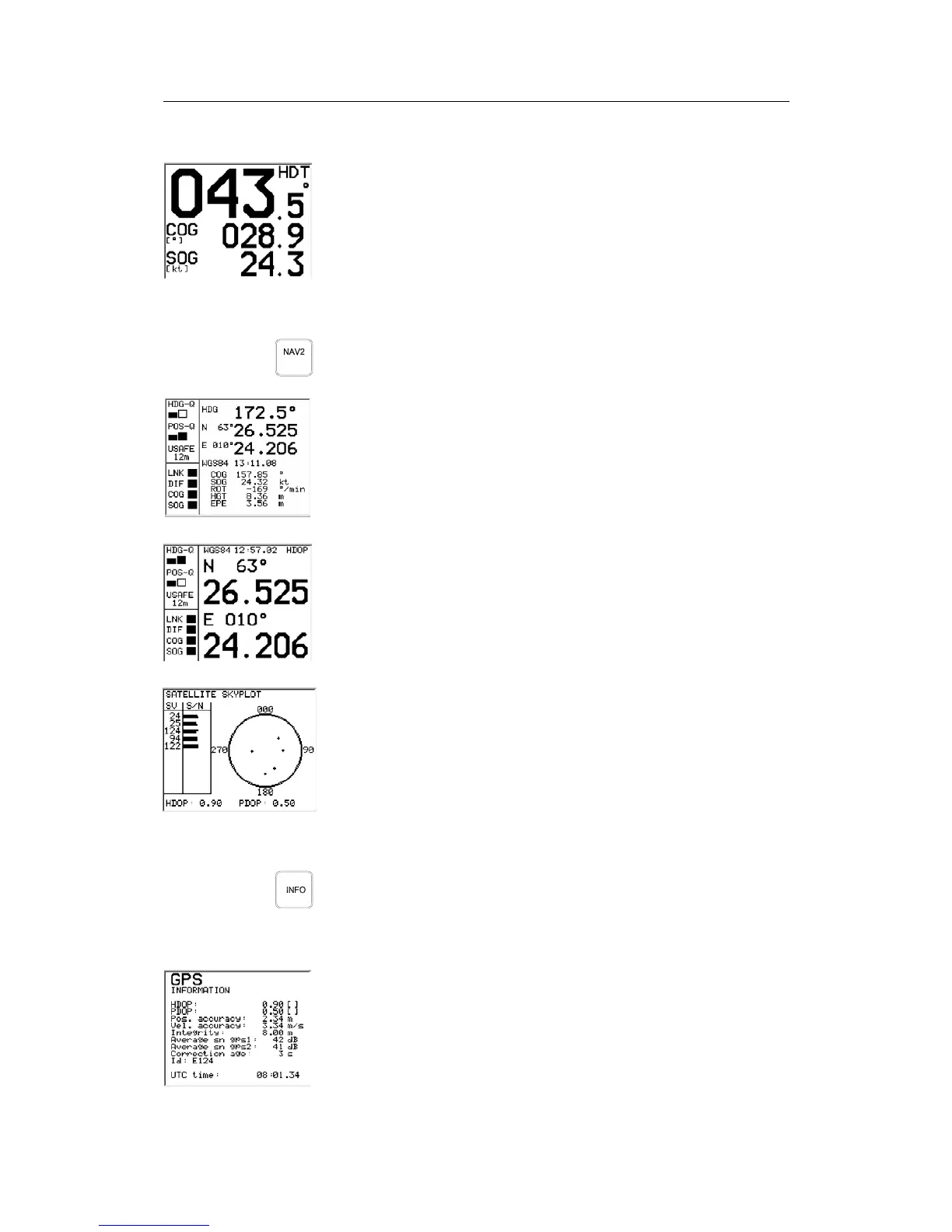

Secondary NAV1/HDT display.
This display shows heading, course over ground and speed over
ground values in big characters.
Navigation/POS Display
POS
The HS52 will toggle between three different displays for
position information when the NAV2/POS button is pressed.
The primary display is shown when the NAV2/POS button is
pressed once. The display shows main navigation information.
The secondary display appears when pressing the NAV1/POS
button twice. The display presents position information in large
numbers.
The third display appears when pressing the NAV1/POS button
three times. This display shows satellites in sight by the Sensor
unit, and which satellites the Simrad HS52 is tracking. The
satellites are presented according to satellite geometry. The bars
on the left side of this display indicate the signal-to-noise level
for each satellite.
Info Displays
When pressing the INFO button, the system will page through a
number of displays for information about system configuration
and performance. The information on some of these displays is
mainly used for troubleshooting the system.
In the GPS information display details for the position solution
is presented. This information is mainly for trouble shooting of
the system.
An explanation of the information shown is as follows:
