INSTALLATION
20222360 / E 17
Display Unit Cable
The 15 m cable to the Processing unit has connector only at the
Display unit end. Optional extensions cable (10 m) is available
and has a male and a female connector.
The connector is of crimp type. It can be easily disassembled, if
desired for ease of installation. The extracting tool (p.no.
44161792) may be ordered from Simrad.

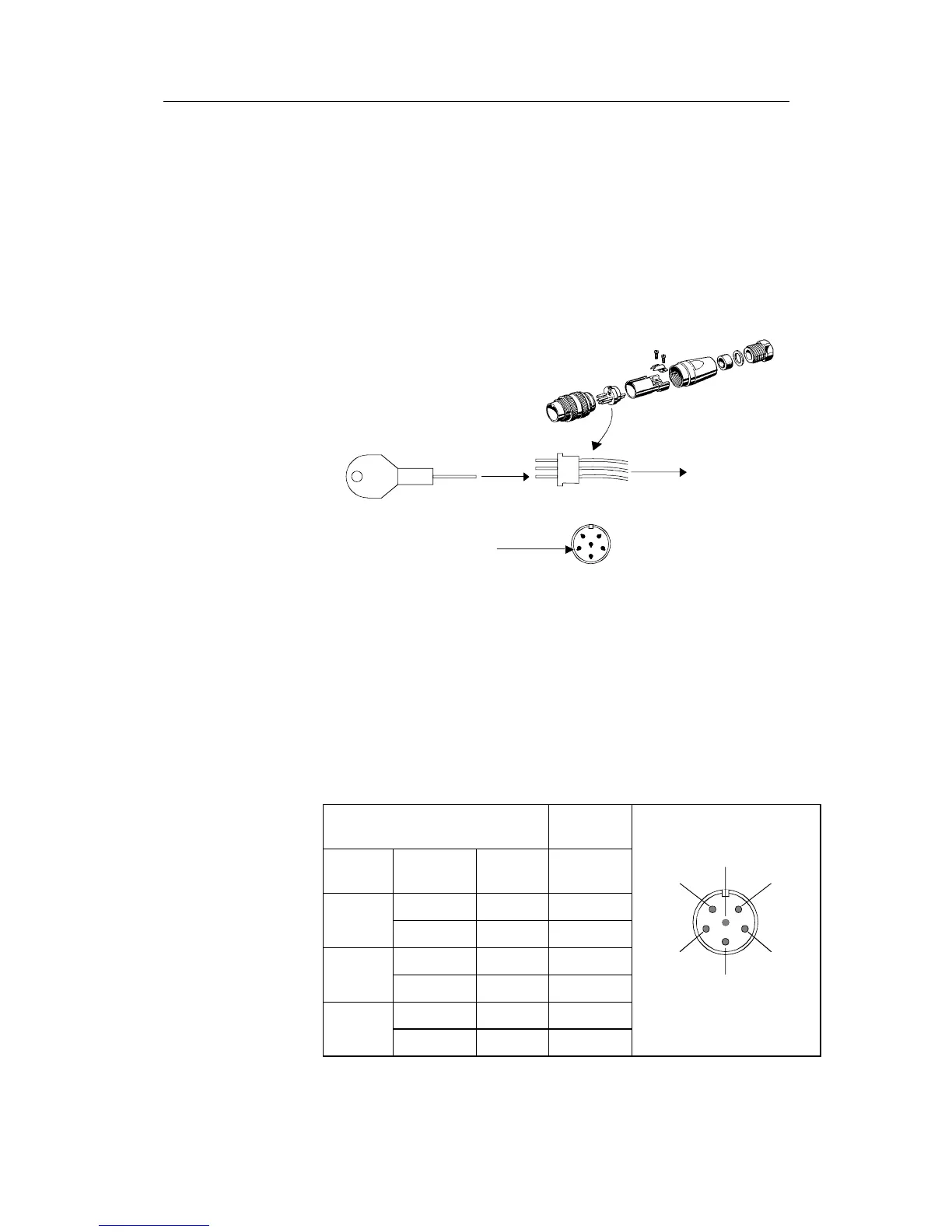

HOW TO REMOVE PINS:
Extraction tool
Pull the wire
Insert tool in slot
See the table below for pin configuration and color code for this
cable. DO NOT MIX THE PINS AND THE CABLE COLORS!
Note! Apply a thin layer of pure Vaseline on the connector threads
and make sure the connectors are properly secured to the
receptacle by the coupling ring. The connectors are weather
proof according to IP56, when properly installed. The plug must
be fitted with the plastic cap to keep the connector free of dirt
and moisture. A separate screw cap for the Display unit comes
as part of the installation kit.
Display Unit Cable
Processing
Unit
Cable
pairs
Color
code
Connect
or pin
Terminal
pin
1
st
pair Pink 5 PWR
Grey 4 GND
2
nd
pair Brown 1 Bus–
White 2 Bus+
3
rd
pair Yellow 3 POWC
Green 6 ALARM
5
42
1
6
FRONT VIEW
3
Note! For installations that require special cable length, contact your
Simrad distributor for information.
