Simrad HS52 User Manual

Simrad HS52 GPS compass and DGPS navigator
64 20222360 / E

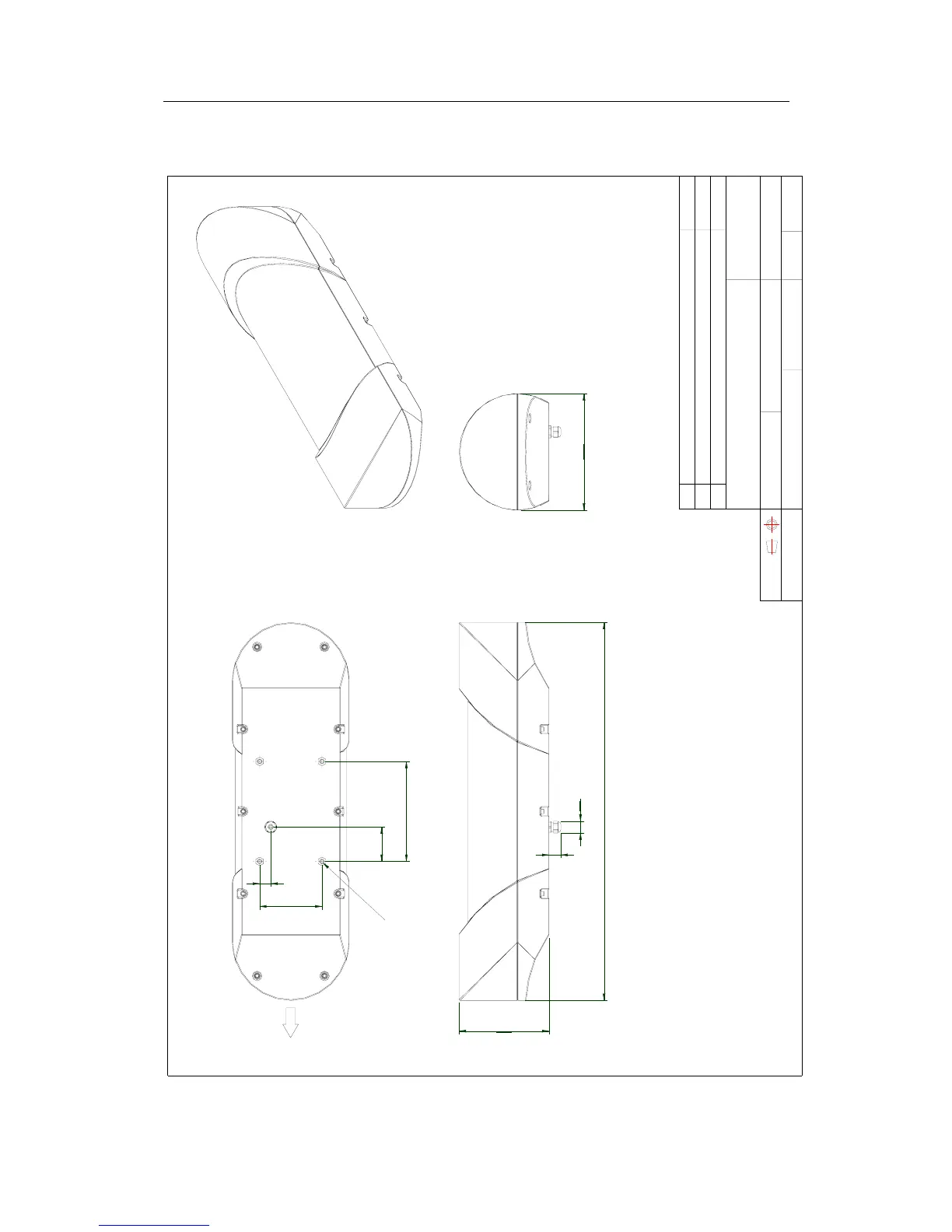

6.1 Sensor Unit, Dimensions
Approved : Checked :
Subtitle:
Title :
Issued :
Drawing no:
Xref file :
Projection:
Rev.
Description
Date:
Date, Sign.
Design by :
Usage:
Rev. no:
Scale :
1
KL
KONGSBERG SEATEX
Ship Heading and Navigation Sensor
Dimensions Sensor Unit
03.08.28
Assey
02.05.08
3822-MA-015
proj3munin/3822/technical notes/mechanicaldesign/ sensorunit/ma015_00
1:5 A3
Material in Housing: Polyethylene Weight : 8 Kg
Material in Nut`s and Screw`s : Stainless steel DIN 316
BOW
1
BOW
27
27
262
25
140
77,5
225
205
850
M10 (4x)

Simrad HS52 Specifications

General

Brand	Simrad
Model	HS52
Category	Marine GPS System
Language	English
