OPERATING INSTRUCTIONS
20222360 / E 41
4. OPERATING INSTRUCTIONS
4.1 Overview
The Display unit is used for setup and operation of the HS52.
Each of the push buttons is clearly identified with the primary
function in large text, and a secondary function listed in smaller
text. Each button provides you with the ability to access a
primary display, a secondary display and/or multiple function
displays.
Adjustable settings are provided in the SETUP mode. The
settings allow adjustment of mounting orientation, selection of
differential correction, setup of output serial line formats,
Ethernet and the display. Refer Software Setup Procedure, page
21.

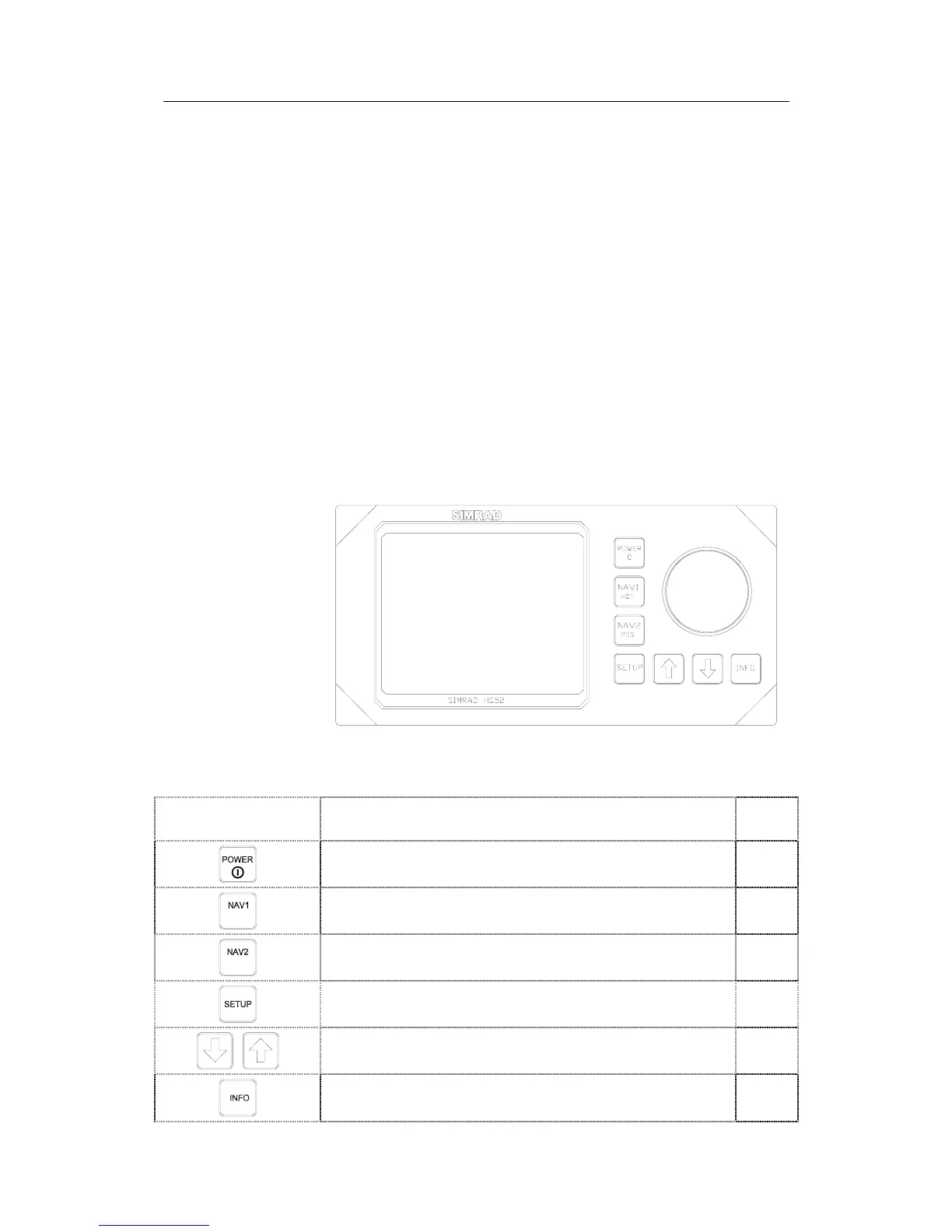

The Display unit consists of the main elements as listed below.
FUNCTION
REF.
PAGE
Power on/off. 42
HDT
Displays Navigation/HDT display with compass rose or
details.
45
POS
Displays Navigation/POS with position and accuracy ellipse. 46
Displays SETUP menu. 21
Used for maneuvering in the SETUP submenus. 21
Used for displaying additional system information. 46
