INSTALLATION
20222360 / E 19

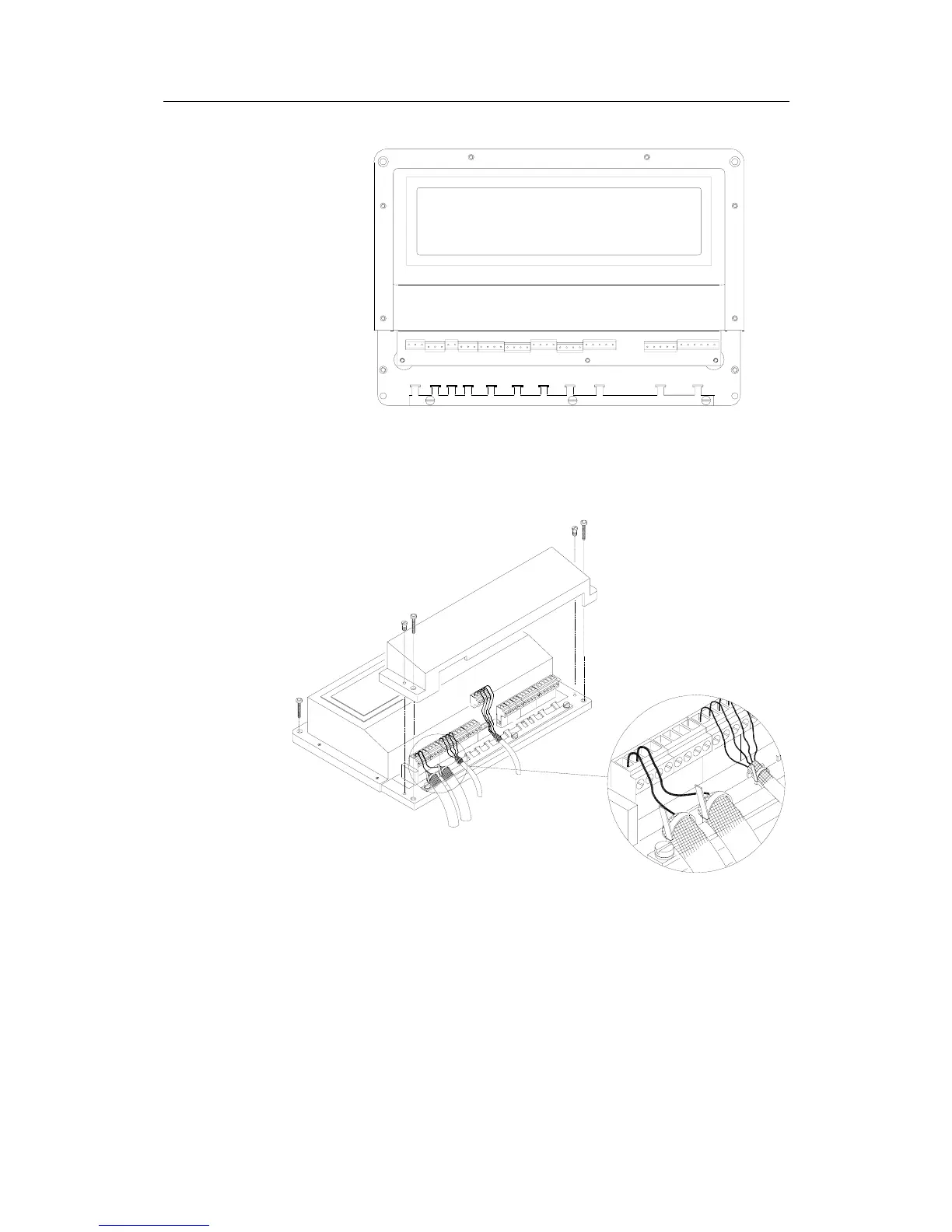

2. Strip about 3 cm (1.2") of the cable's insulation and pull the
screen backward to cover the insulation. Position the straps
as shown in the drawing below and tighten well to make sure
the screen has good contact with the chassis.
3. Provide sufficient wire length (about 3 cm (1.2”)) so that the
plug-in terminals can be easily connected/disconnected.
4. Pull out each terminal before connecting the wires. Remove
all stands before putting on the terminal cover.
The pinout for each terminal is as follows:
