Component overview | SRT LAN radar sensor S-band down-mast Service Manual
D Noise diode
E Limiter
F RF Detector and LNFE
G SRT Mini-PSU PCB
H SRT LAN CPU PCB
I SRT down adapter PCB

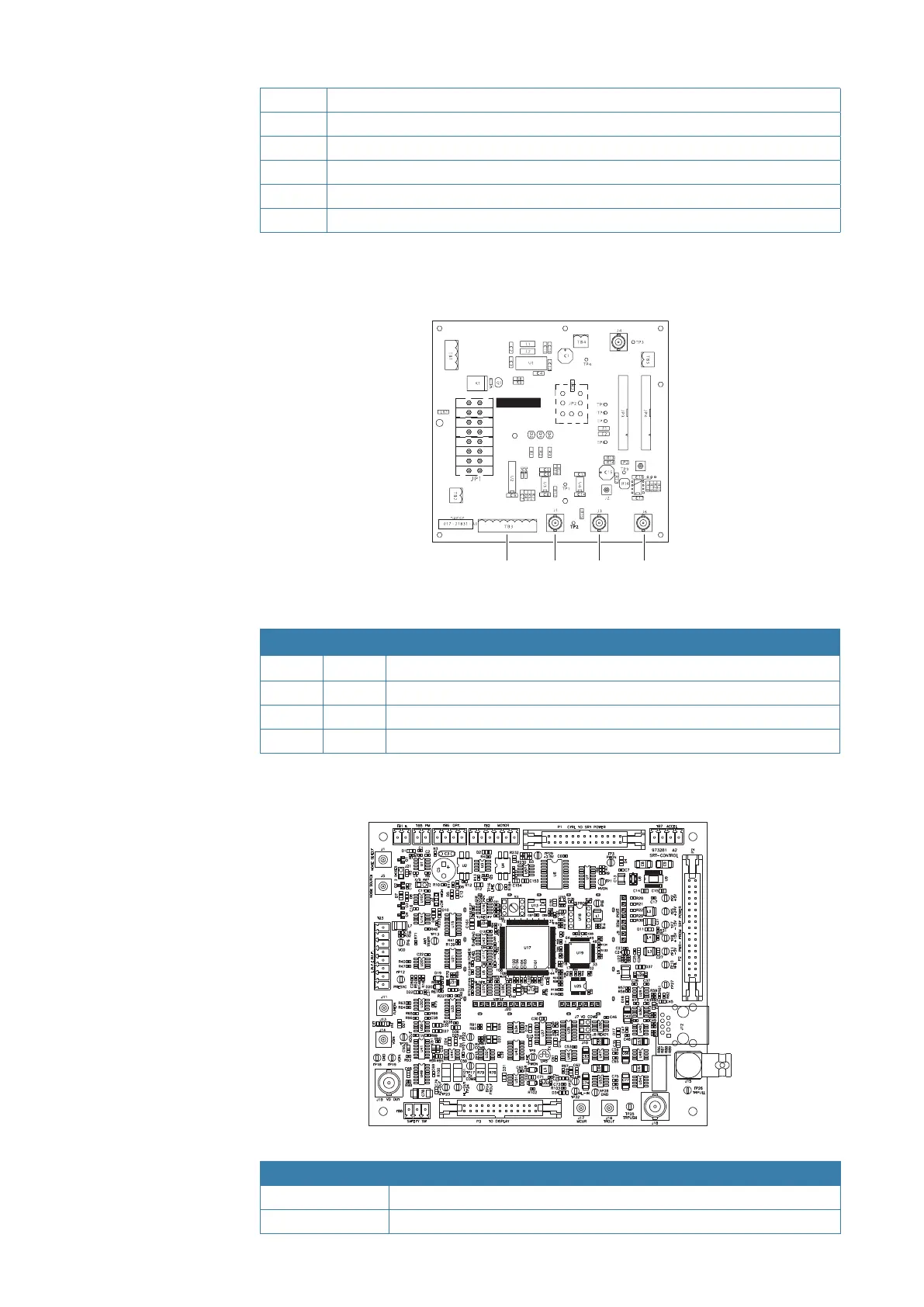

SRT down adapter PCB
A
B
C
D
Label Description
A J1 Trigger output to connect a non Simrad display as slave
B J3 Pre-trigger output
C J6 Video output to connect a non Simrad display as slave
D TB3 Antenna data output to connect a non Simrad display as slave
SRT control PCB
Connector Purpose
TB1 Interlock
TB5 Performance monitor

Simrad SRT Specifications

General

Brand	Simrad
Model	SRT
Category	Radar
Language	English
