Preventive maintenance | SRT LAN radar sensor S-band down-mast Service Manual
Tuning and performance monitor calibration
After magnetron replacement, test the following:
1 Tuning adjustment
2 Performance monitor adjustment (if needed)
3 Timers reset
Tuning

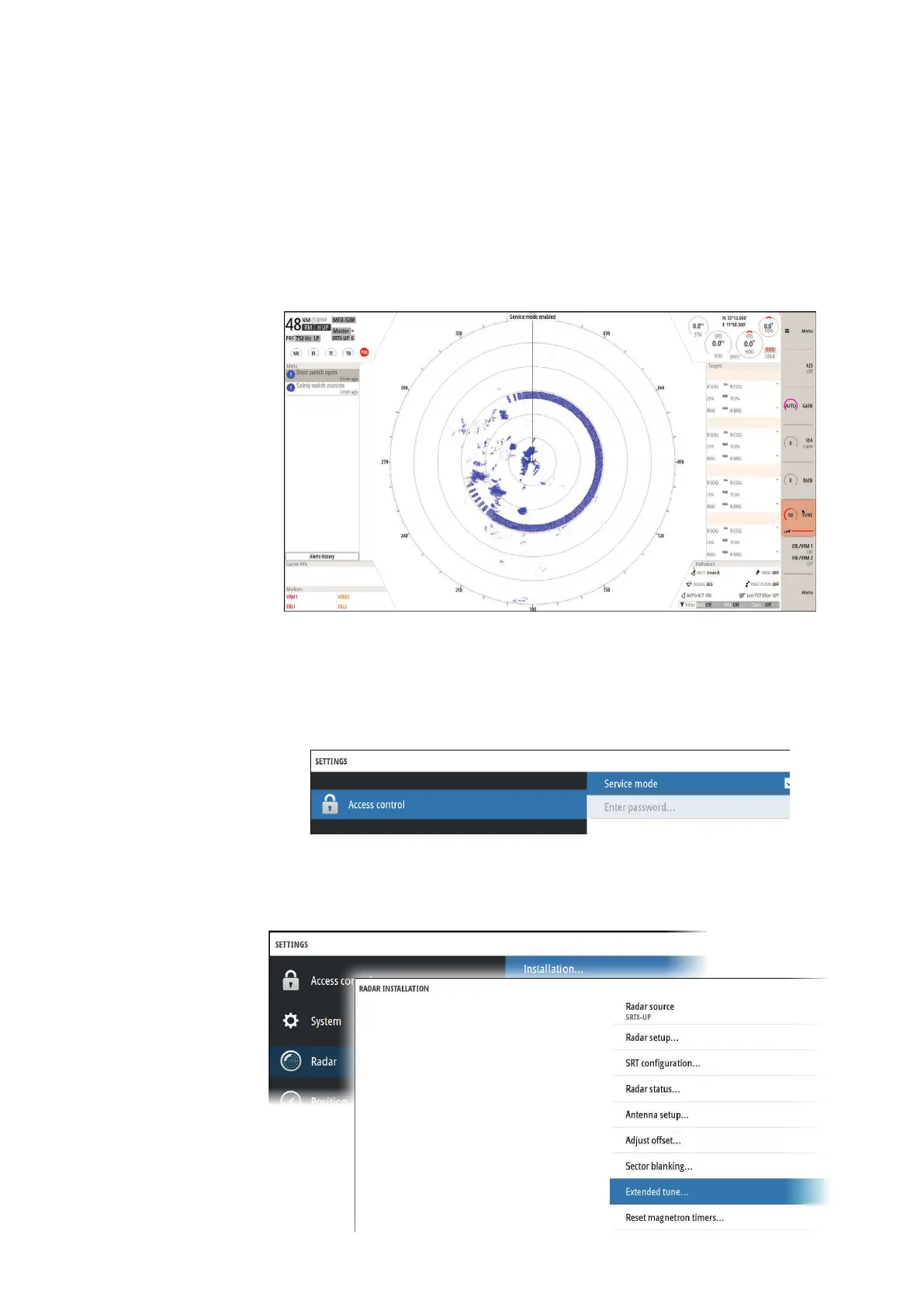

Set radar on 48Nm. Set manual tuning to 50% and verify that the radar video performance is
good with the tuning indicator bar at 80%.
It is mandatory to carry out tuning adjustment following replacement of the Magnetron.
Please follow the procedure below.
1 From the Menu, select Settings and then Access control.
2 Enter password “QWERTY” to enable the Service mode.
3 From the Settings dialog go to Radar and select Installation...
4 Select Extended tune
To Next Page
