Sirman PLL 300 - Lubricating Slide Guides

25

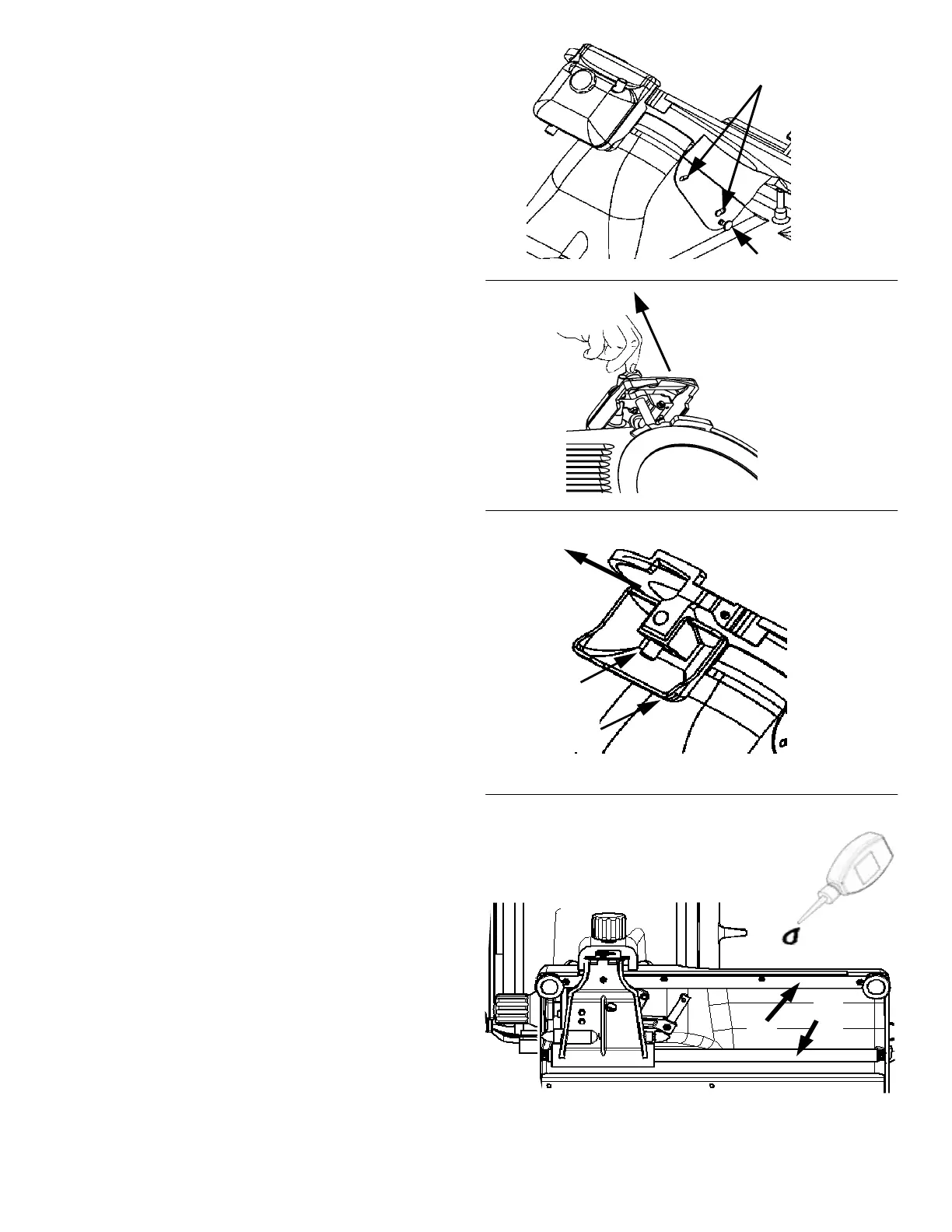

6.2.3 - Cleaning the sliceguard (Fig. n°53)
To remove the sliceguard simply grasp the hand
grip (1) and pull
up so that the two pins unhook
(2), and then extract the sliceguard.
At this point clean the sliceguard with warm
water, the equipped detergent or with neutral
detergent (pH 7).
6.2.4 - Cleaning the sharpener
To clean the sharpener proceed as follows ,
Fig. n°54-55:
1. lift (a) the cap up to end of travel;
2.
3.
loosen the knob (1);
lift (b) the casing (2) and remove (1). Make
sure the knob passes through
the largest
opening in the casing (2);
4. rub the grinders with a brush. All
other slicer components must be cleaned
with warm
water and the detergent provided
or with a warm water and neutral detergent
(pH 7) solution.
Fig. n°53
Fig. n°54
Fig. n°55
6.3 - SLIDE GUIDES LUBRICATION
The slide guides on the hopper assembly
(1-2) must be lubricated periodically with the
oil (a) provided in
(a)
1
2
Fig. n°56
2
1
b
1
2
(a)
