SITA Messtechnik GmbH - Operating Instructions SITA ConSpector

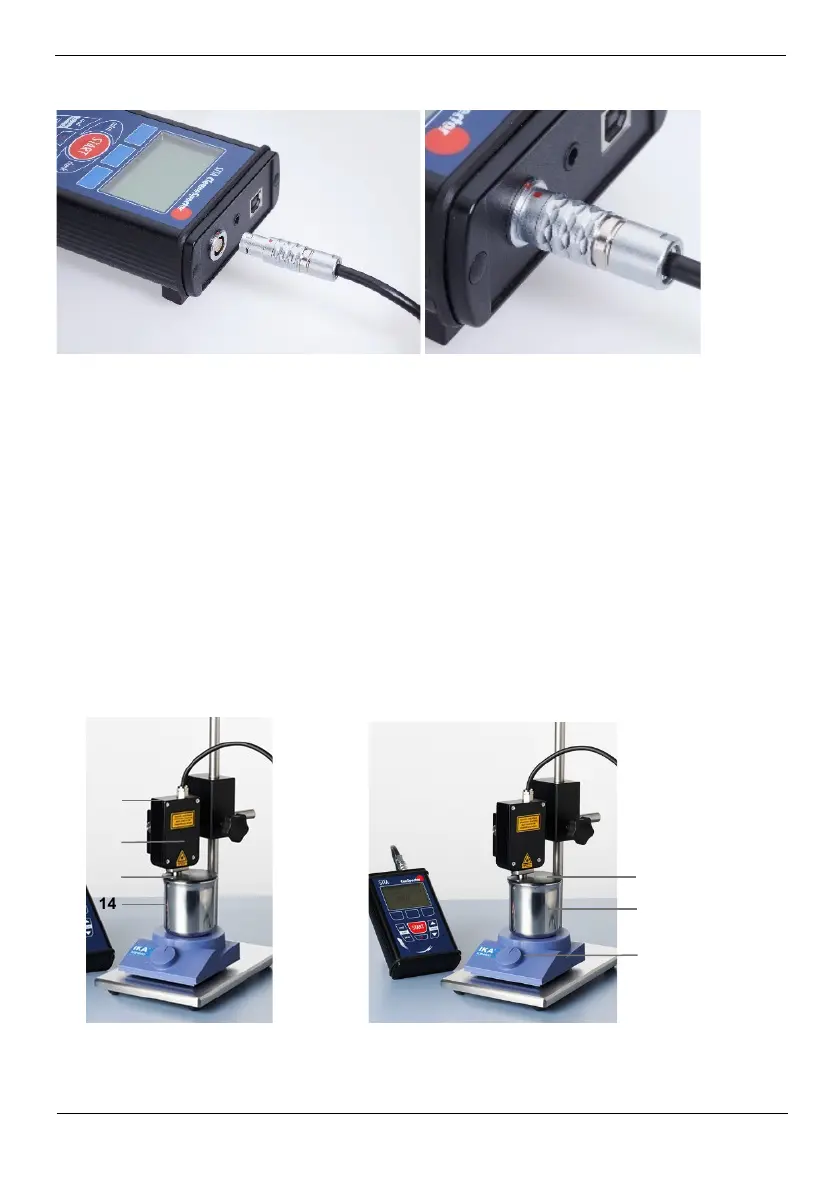

Connecting the sensor head to the basic unit:
Take the basic unit 6 out of the case and connect it to the sensor head using the connecting line.
Pay attention to a proper alignment of the guide groove of the female connector and the guide
cam of the male connector. The connector must be easily pluggable.
Any improper alignment of the male connector and the female connector and excessive forces may
damage the contacts.
To loosen the connector, pull back the fluted outer sleeve only. It is not possible to loosen the
connector without unlocking by only pulling at the fluted outer sleeve. Please also refrain from
pulling at the cable, it may cause damage.
Set up the instrument stand:
It is recommended to use the supplied stand for the measurement.
The stand is set up as shown:
stainless beaker
