Device Installation
5-1
Chapter 5
Device Installation
5.1 Device Connection
Take the SR-8210 out of the case, and insert the red wire of the exposure hand switch as
indicated in Fig. 5-1 to the “HAND SWITCH” exposure hand switch port on the rear cover
of the portable X-ray machine. The red marks on both ends shall be connected easily.

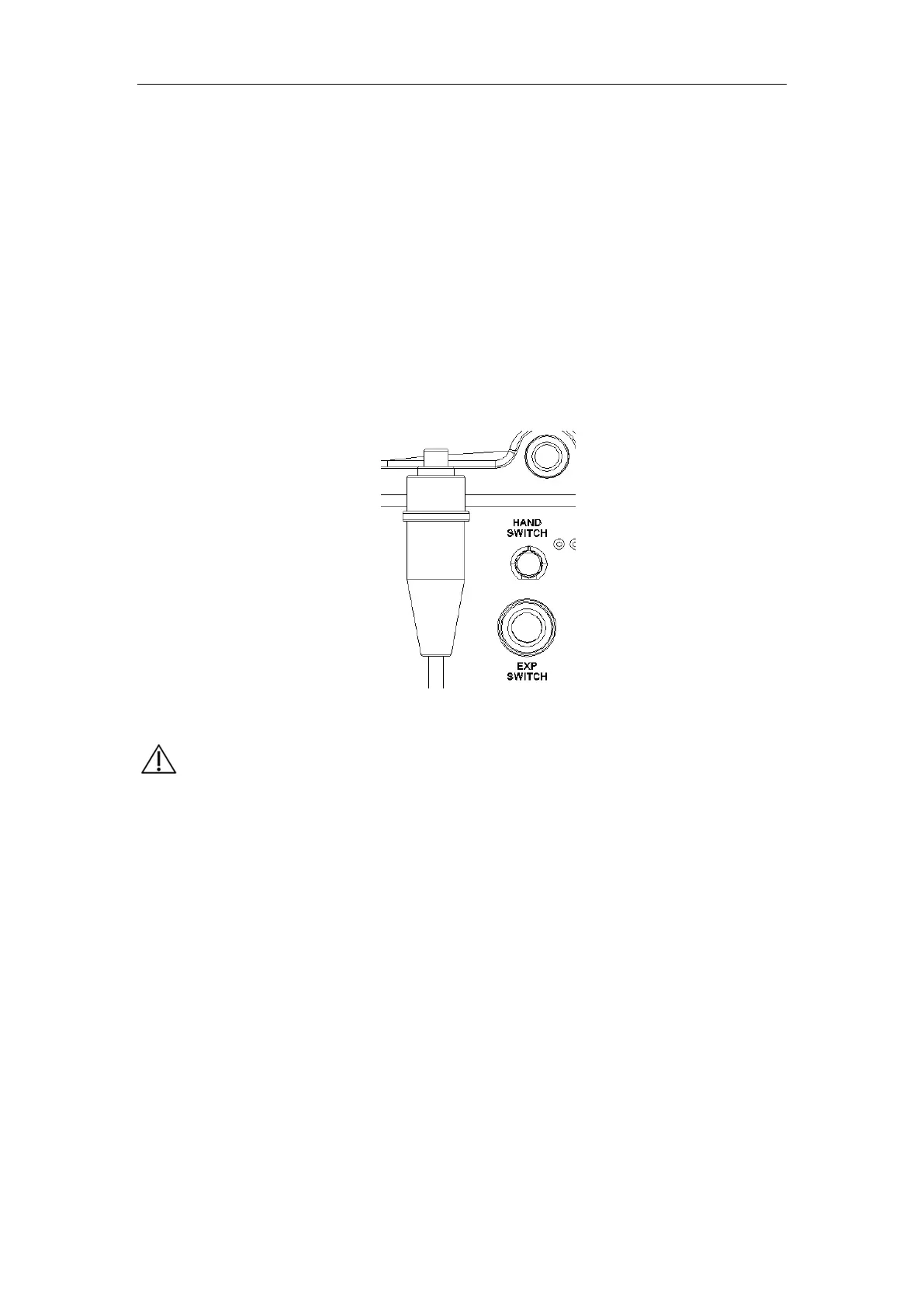

Fig. 5-1
Caution
a) In device installation and testing, the portable X-ray unit
should be handled with care to avoid fall and device damage.
The device should be placed back in the case after use.
b) In the field installation and use, the portable X-ray machine
can be in the patient environment.
c) During the installation, parts not for this device should not be
connected to the device.
d)
The installation shall be performed in a way that allows the
user to obtain the best use results.
e) When installed for use outdoors, make sure that the device
will not be affected by rain or water immersion.
