Page 22 of 60
2018-05-28

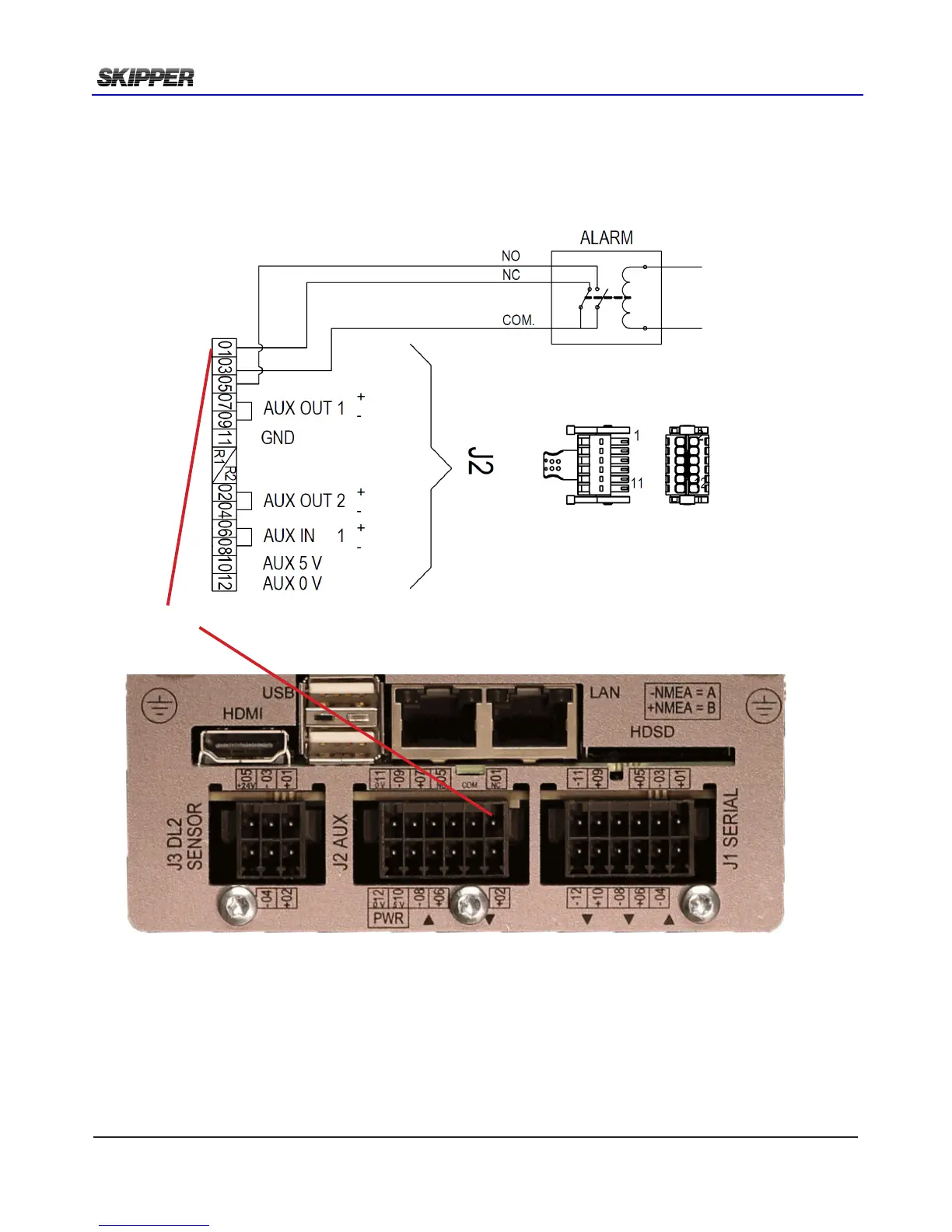

Installation DL2 Doppler Speed Log System
aux/a
larm
cOnnecTiOn J2
The DL2 has standard
Alarm relé
1 x
Aux In. (default set as “Alarm reset”)
2 x
Aux Out.
a
ddiTiOnal
nmea,
a
ux
and
analOg
O
uT
An optional Multi Extension PCB is required for additional NMEA, additional
Aux or analog output.
See Appendix
3.
J2 Pin1
21
23
Table of Contents
Default Chapter
4
Table of Contents
4
Terminology
5
Terms Used in this Manual
5
Chapter 1: Getting Started
7
Overview DL2
7
Optional Items DL2
8
Items Not Supplied by SKIPPER
9
Power Supply Requirements
9
Chapter 2: Hardware Mounting
10
Placement of the Operator Unit
10
Placement of the Electronic Unit
11
Placement of the Electronic Unit IP22 Approved
11
Placement of JB12 Junction Box
11
Placement of Repeaters
11
Placement of the Sea Valve
12
Placement of the Sensor in Sea Valve
13
Chapter 3: Wiring
16
Clamping the Cables
16
CU-M001-SA Operator Unit Wiring
17
JB70D2-SA Electronic Unit Wiring
18
Connectors Supplied with JB70D2
19
Sensor Connection J3
20
Nmea Connection J1
21
Aux/Alarm CONNECTION J2
22
Additional NMEA, Aux and Analog out
22
Yard Supplied Extension Cable from Sensor to JB70 Electronic Unit
23
The Junction Box (Jb12)/Splice
23
Chapter 4: Setup Procedure
26
Config
27
CU-M001 Setup
28
JB70D2 Setup
29
DL2 Setup
30
Reset
33
Software Options
34
Communications Setup (NMEA/UDP)
36
Nmea
36
Lan Udp
36
NMEA Sentences Received
38
NMEA Sentences Transmitted
39
Alarm/Alert Setup
40
Setup AUX
44
System Diagnostics
45
Available Options in the Diagnostic Page
45
Error Messages
45
Saving and Locking
46
Status Leds
46
Hardware Options
47
Chapter 6: Solving Problems
48
Software Upgrade
48
Appendix 1: Installation Drawings
49
Appendix 2: Data Sheets
55
Specifications
56
Appendix 3: Multi Extension Pcb
58
Appendix 4: Connecting 2 Systems
59
Appendix 4: Commisioning Checklist
60
