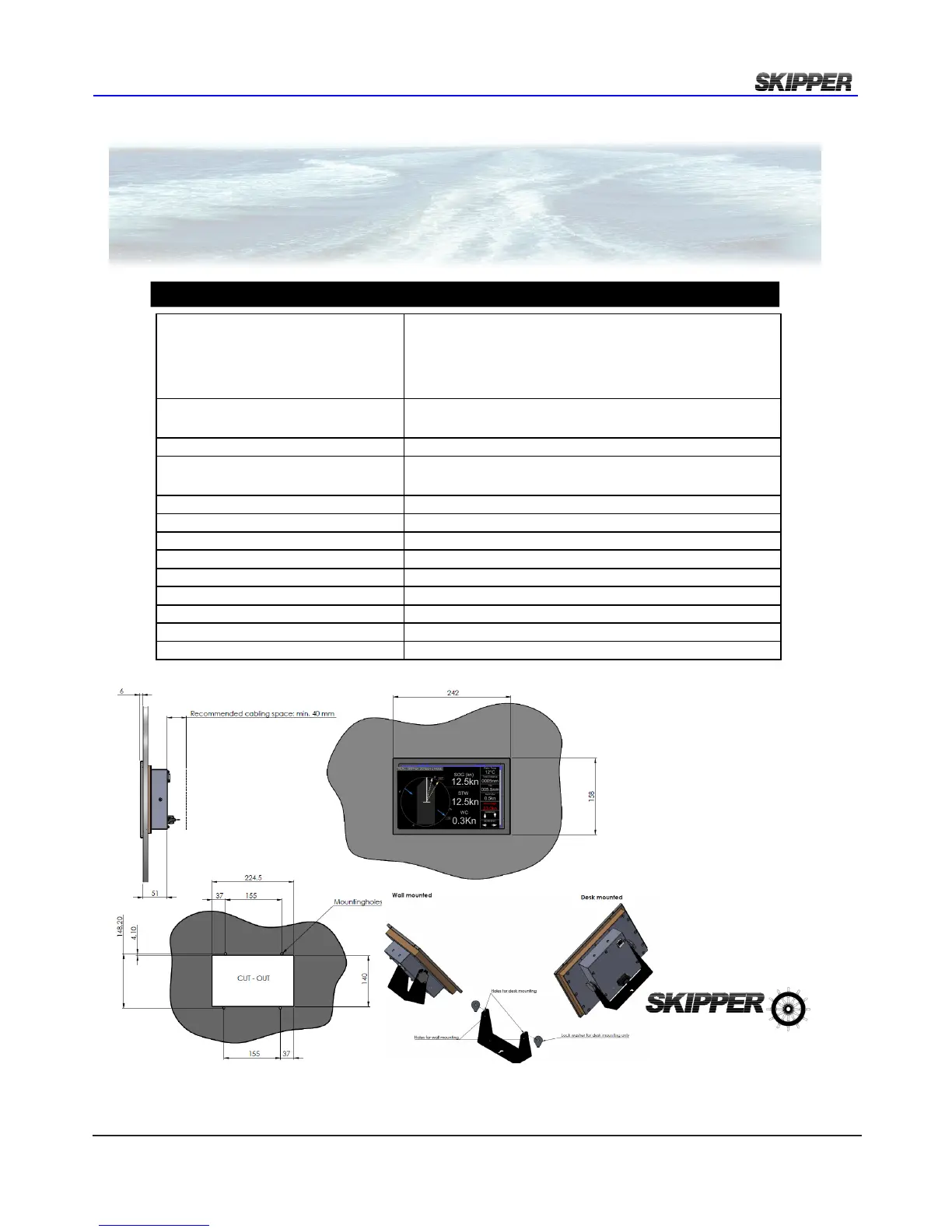

Installation DL2 Doppler Speed Log System
APPENDIX 2: DATA SHEETS
Description
Multi - PanelPC 9inch touch display
9” Touch display. Resistive touch,
Resolution 800 x 480.
LED backlight. 400 Nits.
Viewing angle 70/70/50/60 degrees
Night dimming via touch or NMEA
Flush mount, wall mount or desktop mount
Input/Output
1 LAN. IEC 61162-450
2 NMEA in. 1 NMEA out. NMEA 0183, IEC61162-1/2
(2 CAN, future option)
Used with
JB70XX-XX Electronic unit
Package consist of
9” Control unit
Bracket for desk/wallmount
Connector female, Power, NMEA, CAN
Mounting options
Flush/wall/desk
Packaging dimensions
325 x 125 x 230 mm
Packaging weight
1,2 kg
Power consumption
12 - 24 V DC, max 10 W, typ 6 W
IP rating
22
Operating temperature
-15 to 55
°C
Storage temperature
-20 to 70
°C
Humidity
10 to 90% relative. No condensation
Manufacturer
SKIPPER Electronics AS, Norway
Specications
Product Datasheet
CU-M001-SA Multi - PanelPC 9inch touch display
Dimensions in mm
All product specications are subject to change without notice
SKIPPER Electronics AS
Enebakkveien 150
P.O.Box 151, Manglerud
0612 Oslo, Norway
E-mail: sales@skipper.no
Telephone: +47 23 30 22 70
Telefax: +47 23 30 22 71
Co.reg.no: NO-965378847 - MVA
www.skipper.no
Date: 2015.01.13
