Installation DL2 Doppler Speed Log System
Data sheet DL2SG-SA
Part number Description
DL2SG-SA Log sensor DL2 SKIPPER for 100 mm Sea Valve
To be installed into SB-100-XX
DB-100-XX
Sea valve 100 mm for single bottom hull
Sea valve 100 mm for double bottom hull
To be used with JB70D2-XX Electronic Unit for DL2 Dual Axis Doppler Speed Log
Acoustic frequency range 270-284 kHz
Bottom detection (SOG) <200 m
Cable length 40 m (may be extended or shortened. Recommended CAT6 cable)
Cable diameter
11 mm +/-0.5
Cable minimum bending radius
56 mm
Accuracy 0.2 kn or 2 % whichever is greater
Speed resolution 0.1 kn
Max speed +/- 50 kn
Temperature accuracy 1 deg
Temperature resolution 0.1 deg
IP rating IP 68
Depth rating 6 bar
Operating temperature -15 to 55°C
Storage temperature -20 to 70°C
Outputs 1 x NMEA (Proprietary formats) RS422
Input 1 x NMEA (Proprietary formats) RS422
Power input Nom. 24 V (18 V to 32 V) 16 W
Weight 10.2 kg
Manufacturer SKIPPER Electronics AS, Norway
Spesications
45cm * 44cm * 32 cm
10.2kg
Product Datasheet

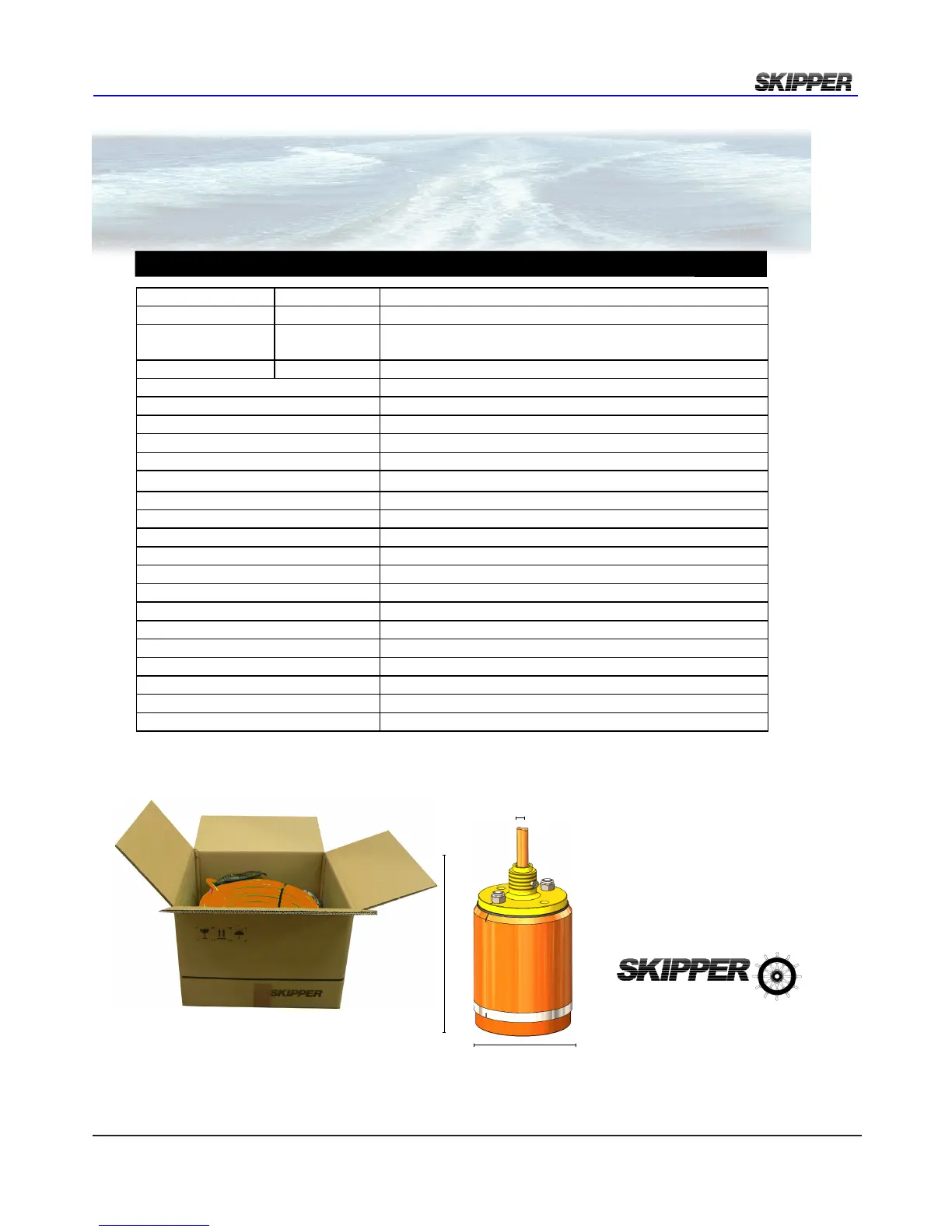

DL2SG-SA Log sensor DL2 SKIPPER for
100 mm Sea Valve
ø 100 mm
137 mm
ø 11 mm
125.3 mm
All product specications are subject to change without notice
SKIPPER Electronics AS
Enebakkveien 150
P.O.Box 151, Manglerud
0612 Oslo, Norway
E-mail: sales@skipper.no
Telephone: +47 23 30 22 70
Telefax: +47 23 30 22 71
Co.reg.no: NO-965378847 - MVA
www.skipper.no
Date: January 2015
Version: 07012015
