Skyjack Compact Rough Terrain Series User Manual

SKYJACK, Page 115
SJRT Compact Series
Engine Powered
A
B

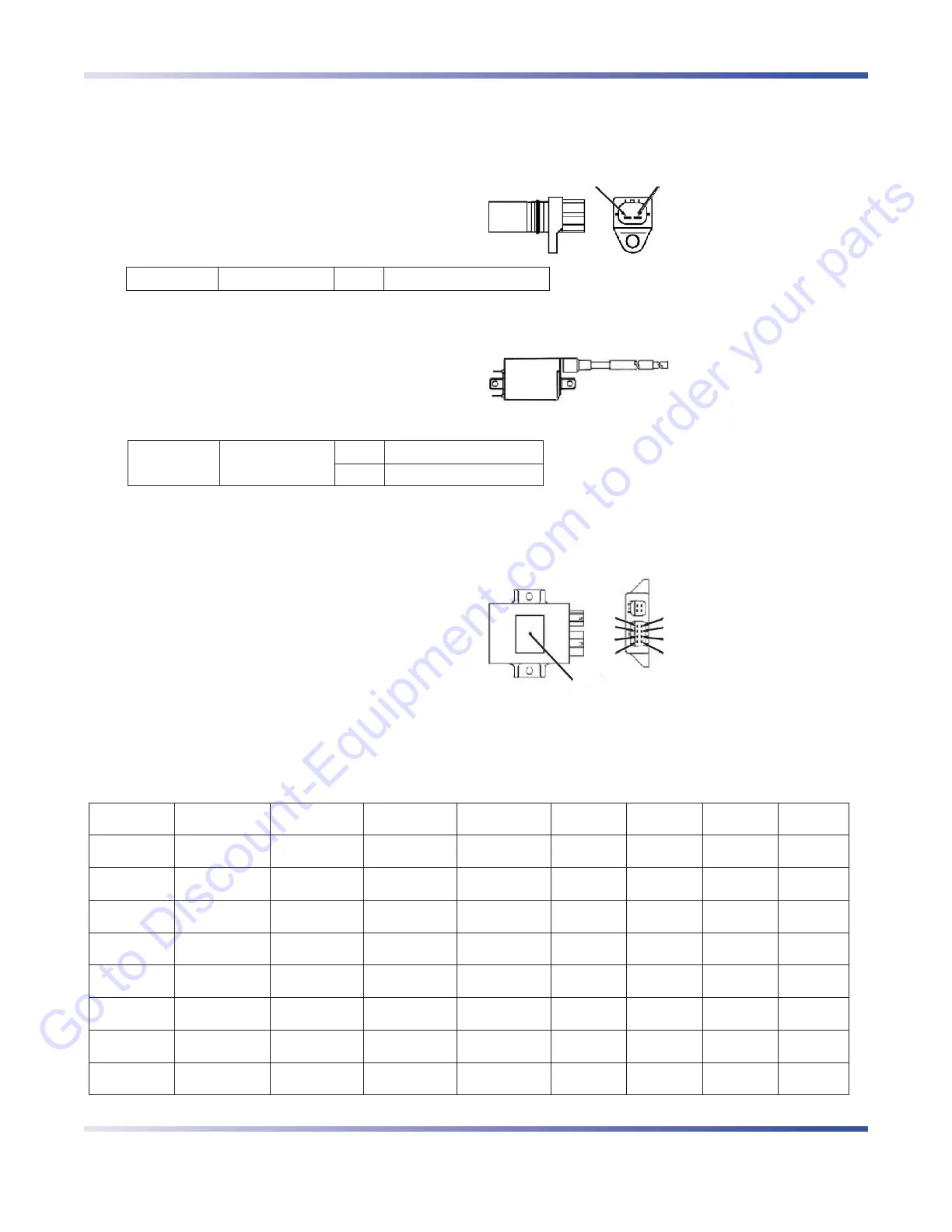

5.11 Kubota Dual Fuel (DF972) Resistance Checks
Resistance of Pick-Up Sensor
1. Disconnect the connector.
2. Measure the resistance with the ohmmeter.
3. If the resistance is not within the factory
specifications, replace it.
Resistance of Ignition Coil
1. Disconnect the connector.
2. Measure the resistance with an ohmmeter.
3. If the resistance is not within the factory
specifications, replace it.
A: Terminal (+) C: High Tension Cord
B: Terminal (-)
Resistance of Ignitor
1. Disconnect the connector.
2. Measure the resistance with an ohmmeter.
3. If the resistance is not within the factory
specifications, replace it.
Important:
To replace the ignitor with a service part, make sure
the ignitor has the same part cord No / ID mark as
the old one. (See the information label (1).)
A
G
C
E
B
H
D
F
(1)
Resistance Factory Spec.
A - B
A - C
1.87 to 2.53Ω at 20°C
10.4 to 15.6Ω at 20°C
Resistance Factory Spec.
A - B
1.85 to 2.45kΩ at 20°C
B
C
A
Ignitor Check Chart
Negative
Positive
A B C D E F G H
A
10 to 40 kΩ 10 to 40 kΩ 11 to 47 kΩ infinity infinity infinity infinity
B
10 to 40 kΩ
0.33 to 1.3
kΩ
1.8 to 7.3
kΩ
infinity infinity infinity infinity
C
10 to 40 kΩ
0.33 to 1.3
kΩ
1.5 to 6.0
kΩ
infinity infinity infinity infinity
D
11 to 47 kΩ
1.8 to 7.3
kΩ
1.5 to 6.0
kΩ
infinity infinity infinity infinity
E
infinity infinity infinity infinity infinity infinity infinity
F
2 megohm
(minimum)
2 megohm
(minimum)
2 megohm
(minimum)
2 megohm
(minimum)
infinity infinity infinity
G
2 megohm
(minimum)
2 megohm
(minimum)
2 megohm
(minimum)
2 megohm
(minimum)
infinity infinity infinity
H
2 megohm
(minimum)
2 megohm
(minimum)
2 megohm
(minimum)
2 megohm
(minimum)
infinity infinity infinity
60434AA
