Section 3 – Familiarization
Overview of the MEWP
FAMILIARIZATION

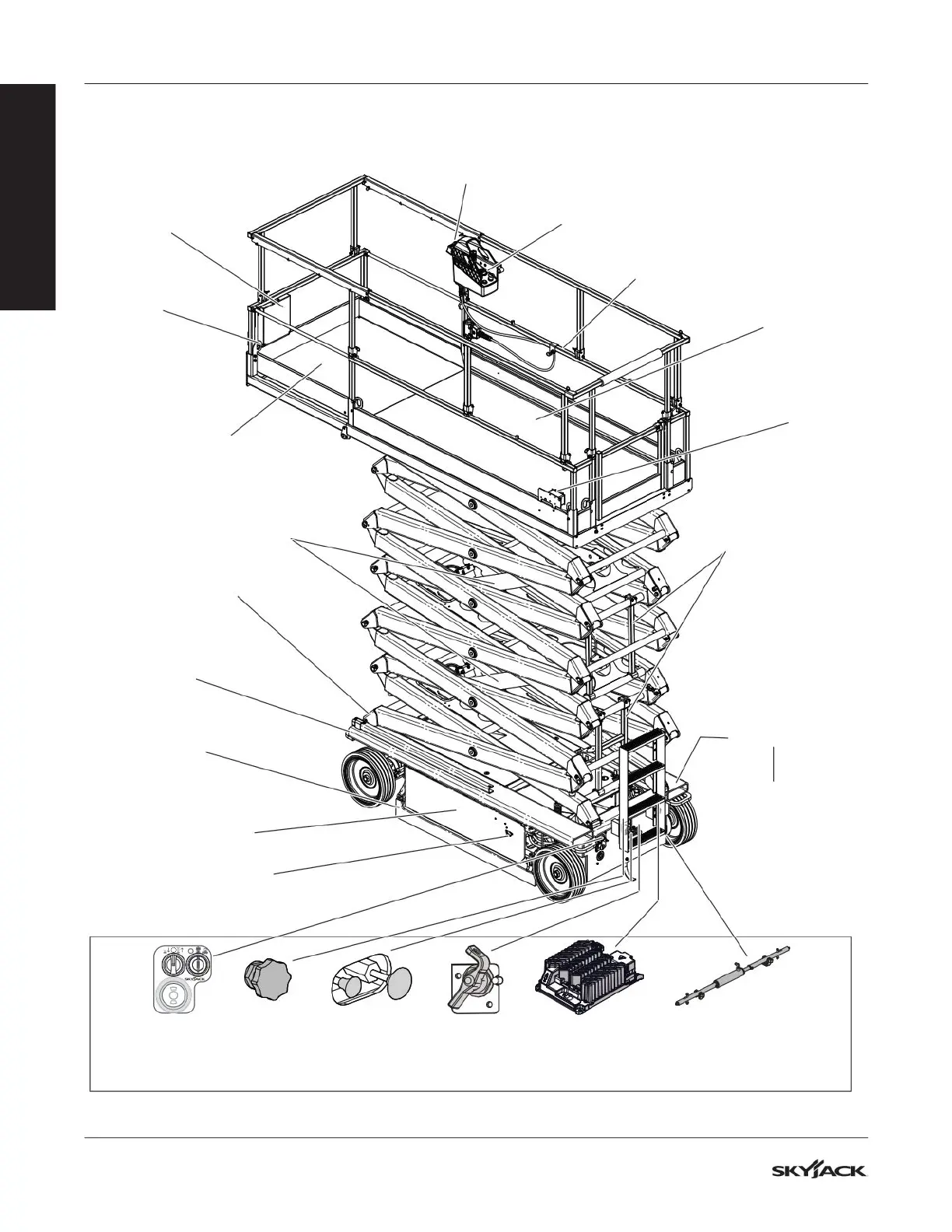

3.1 Overview of the MEWP
Manual storage box
Platform control console
Dual height control
console (SJ3226 and SJ4740)
Platform
Maintenance
support
AC power socket
Battery tray
Battery charger
(SJ3220, SJ3226, SJ4726,
SJ4732, and SJ4740)
Battery
charger
(SJ3215 and
SJ3219)
Brake-release
system - disc
brakes
(SJ4740)
Freewheeling
Valve (SJ3220,
SJ3226, SJ4726,
SJ4732, SJ4740)
Base
control
console
Main power
disconnect
switch
Emergency-lowering switch
Hydraulic tray
Pothole protection device
Base
Lift mechanism
Extension platform
Fall-protection
anchorage
Folding-guardrail
system
Freewheeling
Valve
(SJ3215, and SJ3219)
Brake-release system
- pin brakes (SJ3215,
SJ3219, SJ3220, SJ3226,
SJ4726, SJ4732)
