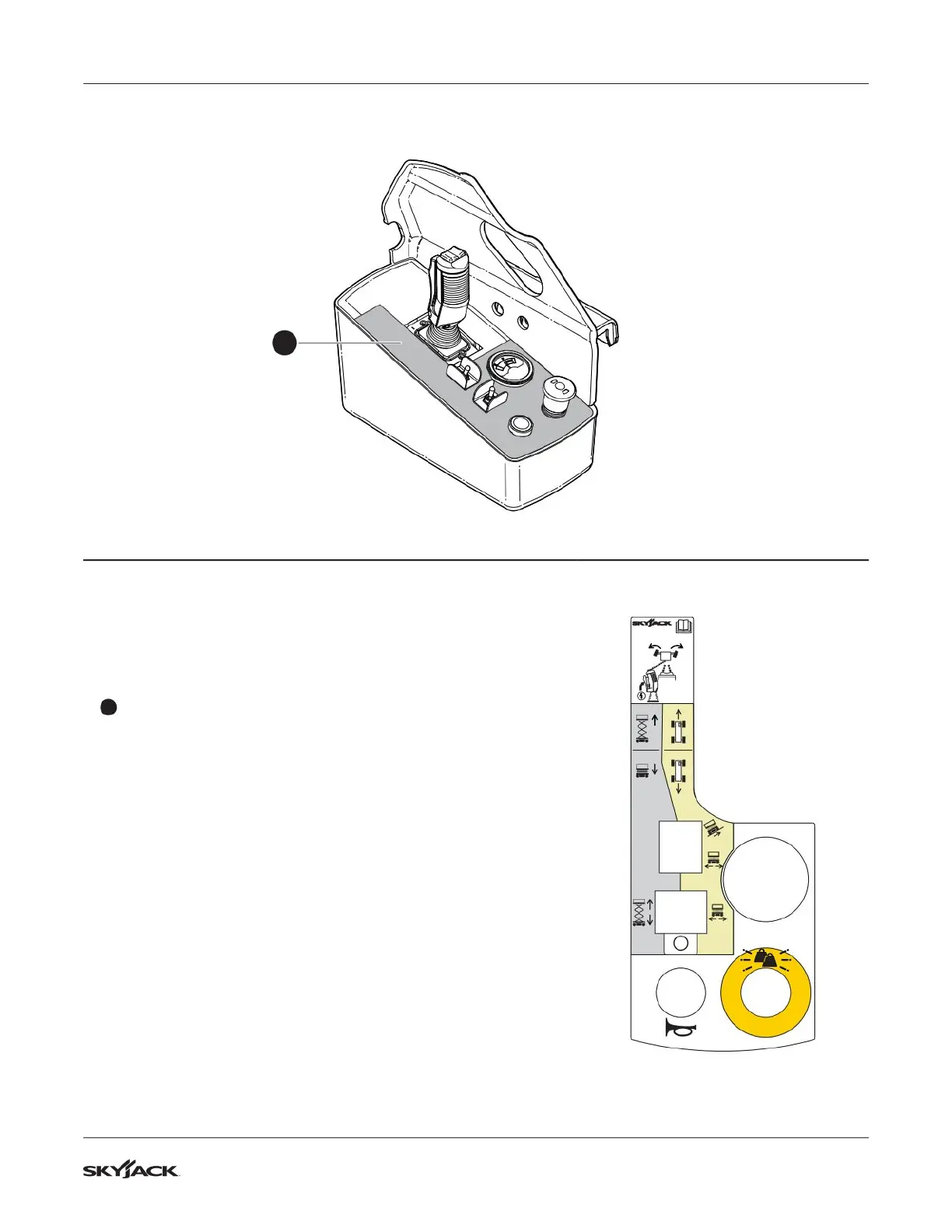

Platform control console labels Section 8 – Labels
Description Label Pictorial
2
Platform controls
▪
Squeeze and hold the function-enable switch to energize
the lift, drive, and steer functions.
▪
Operate the steering rocker switch to steer.
▪
Move the controller handle to control the lift and drive
movements.
▪
Select the inclined drive (low speed/high torque) or level
drive (high speed/low torque) mode.
▪
Select the lift, off, or drive mode.
▪
Push the horn button to make a sound like a car horn.
▪
Push the emergency-stop button to disconnect power
to the control circuit. Pull the emergency-stop button to
connect the power again.
TM
2
8.2 Platform control console labels
