Section 4 – Inspections Before Operation
Visual and daily maintenance inspections
4.2-8 Extension side
Do the inspection that follows:
1
Steer cylinder assembly
▪
Make sure that the steer cylinder assembly is
correctly installed.
▪
Make sure there are no loose or missing
fasteners.
▪
Make sure there is no visible damage.
2
Steer linkages
▪
Make sure there are no loose or missing
fasteners and lock-pins.
▪
Make sure that the steer linkages and
bushings are correctly attached.
▪
Make sure there is no visible damage.
3
Wheel/motor assembly
▪
Make sure there are no loose or missing
fasteners.
▪
Make sure there is no visible damage.
4
Greasing points
▪
Make sure there is no visible damage.
▪
Make sure there is no dirt or blockages.
5
Freewheeling valve (SJ3215, SJ3219 only)
▪
Make sure there are no loose or missing parts,
and there is no visible damage.
NOTE
It can be necessary to open the battery and hydraulic
trays to do an inspection of the steer components.
6
Tie Rod (SJ3220, SJ3226, SJ4726, SJ4732
only)
▪
Make sure there are no loose or missing parts,
and there is no visible damage.
▪
Make sure the tie rod end studs are locked.
1
3
53
2 44 4 4 2

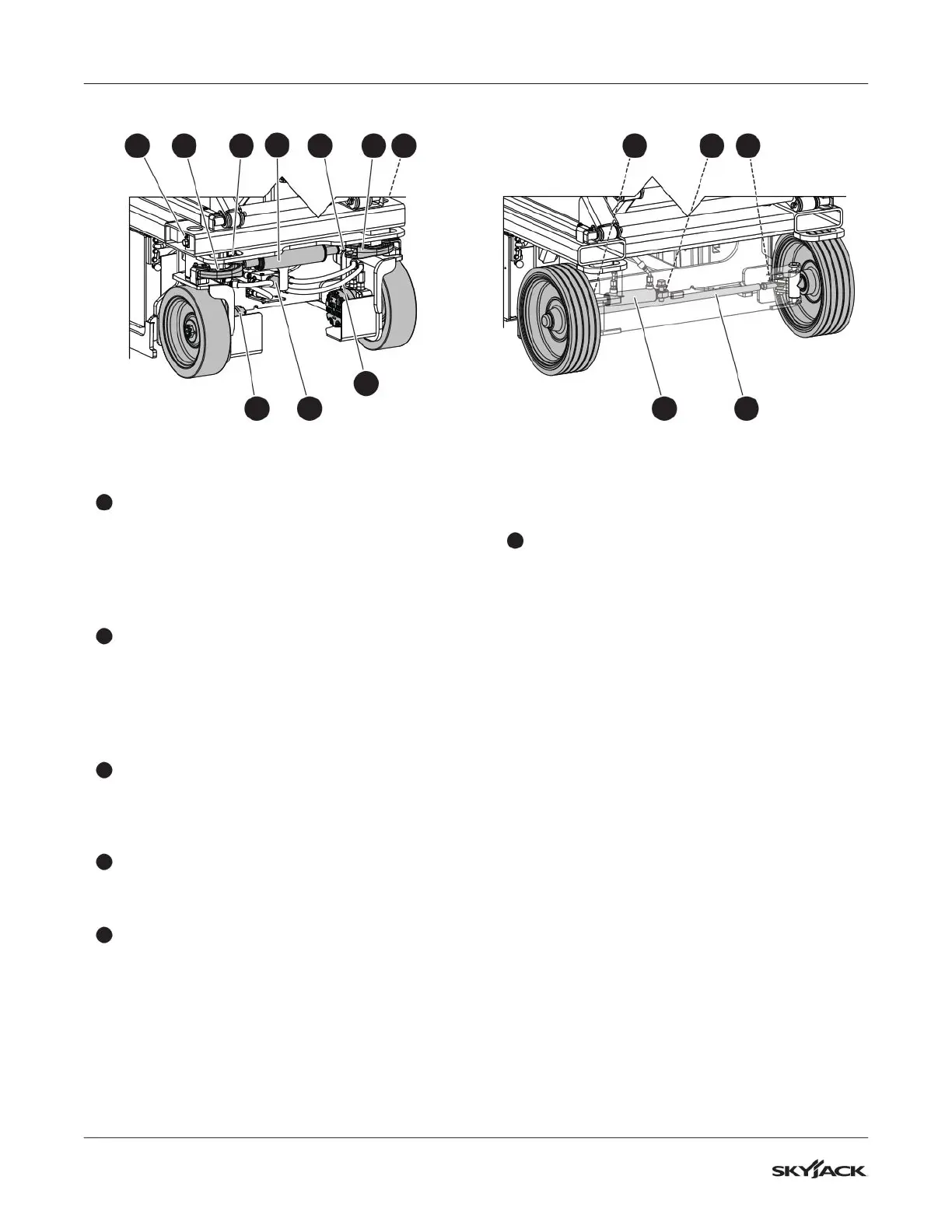

Example model SJ3219 Example model SJ4732
61
2 22
