216380ACA SJ3215, SJ3219, SJ3220, SJ3226, SJ4726, SJ4732, SJ4740
28
Section 3 – Familiarization
General components
FAMILIARIZATION

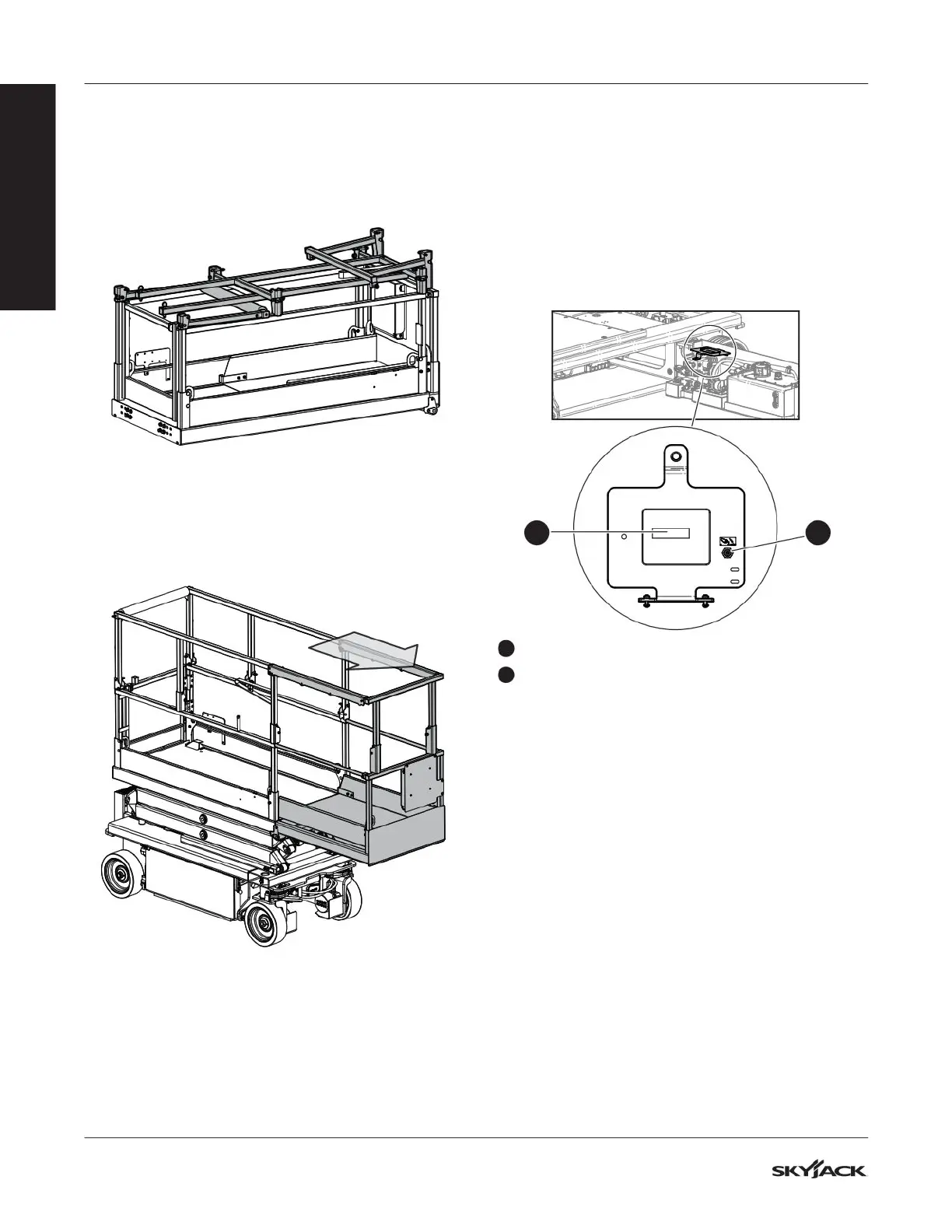

3.5-3 Folding-guardrail system
When you fold this system, it decreases the height of
the fully lowered MEWP to transport the MEWP and/or
to drive the MEWP through doorways. Refer to Section
6.9 for the procedure on how to fold the guardrails.
3.5-4 Extension platform
The extension platform increases the length and area of
the platform. Refer to Section 5.8 on how to extend and
retract the extension platform.
3.5-5 Motion alarm
The alarm makes a sound when a control function
operates. On some MEWPs, an amber flashing light
goes with this alarm.
3.5-6 Skycoded™ display panel
This display panel, located in the hydraulic tray, shows
operation and parameter information. Examples are the
hours of operation, tilt angle, and error codes.
2
1
1
Skycoded™ display panel
2
Circuit breaker: If a power overload or positive
circuit grounding occurs, the circuit breaker
comes out. Push the circuit breaker into the initial
position to reset the power.
