Features and Devices Section 3 – Familiarization
3.4 Features and Devices
3.4-1 Lowered travel position and
elevated travel position
The available MEWP functions depend on these
factors:
▪
MEWP configuration (lowered travel position/
elevated travel position)
▪
Chassis angle
▪
Platform load.
The MEWP is in the lowered travel position when the
platform is below height “A” (refer to Figure 01).
The MEWP is in the elevated travel position when the
platform is at or above height “A” (refer to Figure 01).
Model A - Height
Maximum Drive
Height
SJ3215 < 2.13 m (7 ft) Full height
SJ3219 < 2.13 m (7 ft) Full height
SJ3220 < 2.08 m (6 ft 10 in) Full height
SJ3226 < 2.08 m (6 ft 10 in) Full height
SJ4726 < 2.13 m (7 ft) Full height
SJ4732 < 2.44 m (8 ft) Full height
SJ4740 < 2.74 m (9 ft) Full height
A

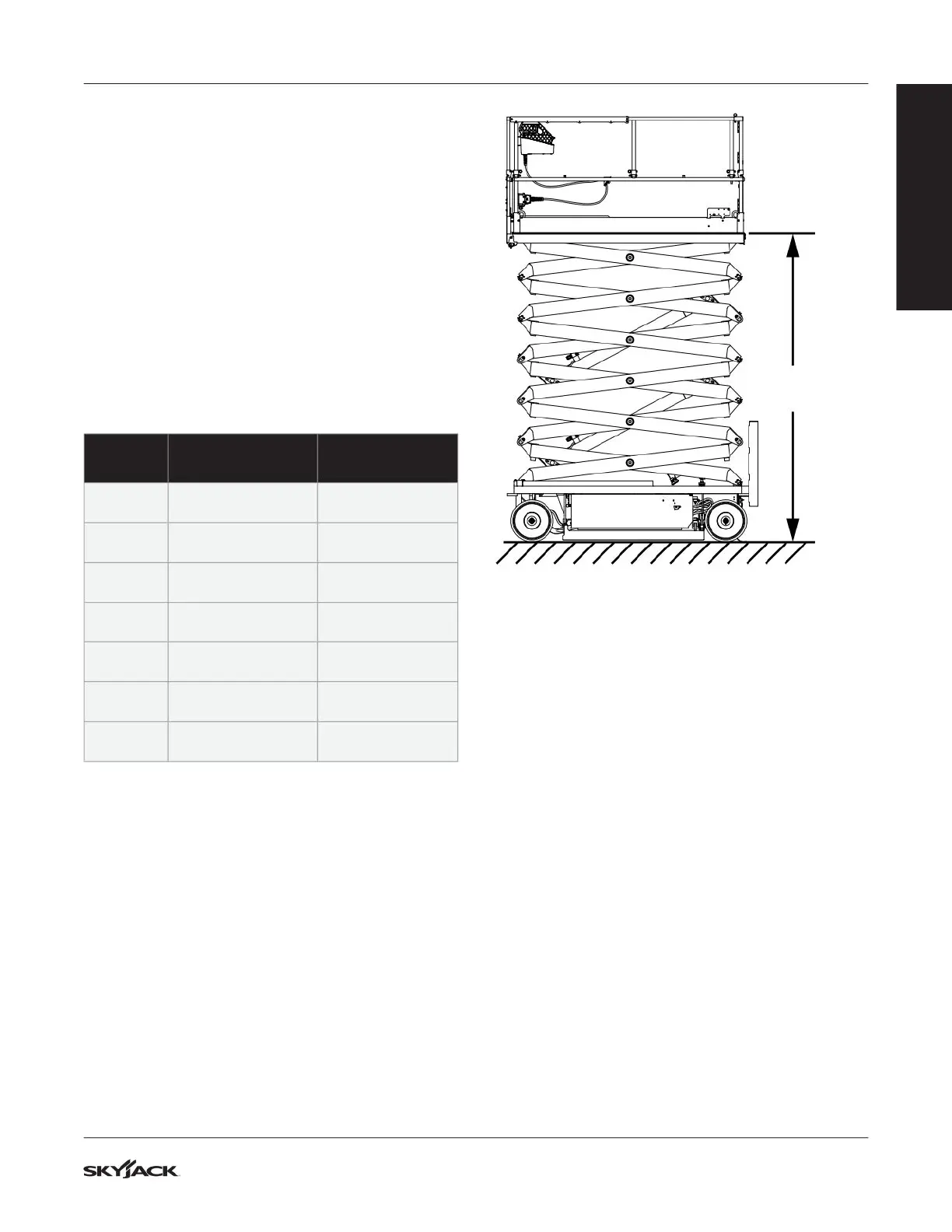

Figure 01 Lowered and elevated travel position
3.4-2 Drive speed
The drive speed depends on the MEWP configuration
(lowered travel position/elevated travel position).
When the MEWP is in the elevated travel position, the
speed is slower than the speed in the lowered travel
position. Refer to Section 7.3.
3.4-3 Tilt switch
This device senses when the MEWP has passed a
predetermined angle in the longitudinal (front-to-back)
or lateral (side-to-side) direction. Refer to Section 7.5.
When the tilt switch is on, and the MEWP is in the
elevated travel position, it disables the drive and lift
functions. An alarm makes a sound, and an amber
light flashes on the bracket on the lower scissor arm.
If the alarm makes a sound, fully lower the platform.
Level the MEWP before you raise the platform.
FAMILIARIZATION
