216380ACA SJ3215, SJ3219, SJ3220, SJ3226, SJ4726, SJ4732, SJ4740
22
Section 3 – Familiarization
Control functions

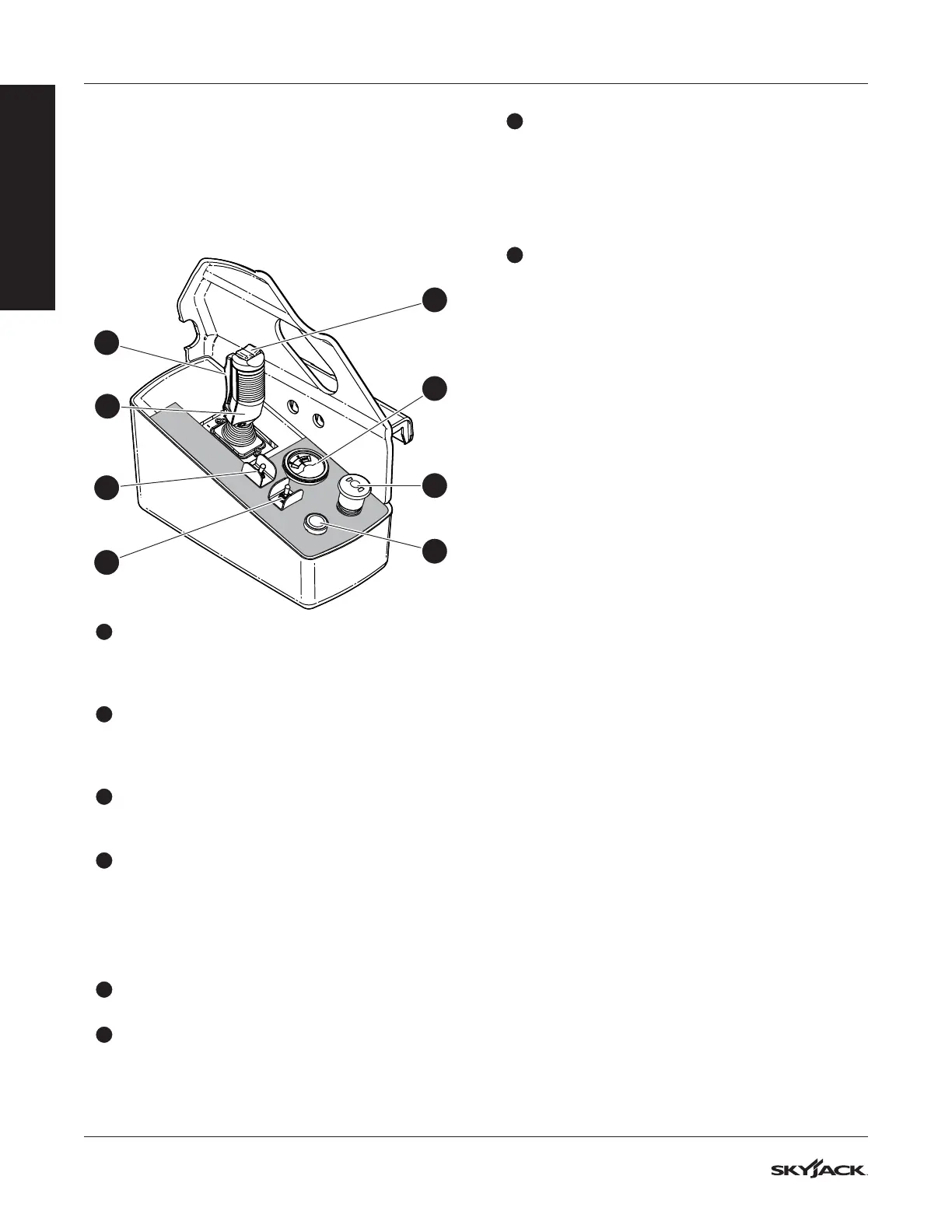

3.3-3 Platform control console
Use this control console to operate the MEWP from
the platform or the ground. To operate the MEWP from
a position on the ground, refer to Section 6.5.
Refer to Section 3.1 for the location of the platform
control console.
4
7
6
1
5
8
3
2
1
Lift/drive/steer function-enable: This switch
energizes the controller handle. Squeeze and
hold the switch continuously to engage the lift,
drive, and steer functions.
2
Lift/drive controller: This one-hand lever
controls the lift and drive movements. To return
it to the initial neutral position, release the
controller.
3
Steering rocker: This switch controls the left and
right steering. Release the switch to return it to
the neutral position.
4
Emergency-stop/operation light: This button,
disconnects the power to the control circuit.
When the light is on continuously, the platform
controls are available.
When the light flashes, there is an overload
(refer to Section 3.4-8).
5
Horn: This push-button makes a sound like a car
horn.
6
Inclined drive/level drive: This switch selects
the inclined drive (low speed/high torque), or the
level drive (high speed/low torque).
7
Lift/off/drive: This switch has three positions or
modes.
The off position on this switch disconnects the
power to both the lift and drive circuits.
The lift position energizes the lift circuit.
The drive position energizes the drive circuit.
8
Battery voltmeter: This voltmeter shows the
voltage of the battery.
