SJ3215, SJ3219, SJ3220, SJ3226, SJ4726, SJ4732, SJ4740 216380ACA
77
Fold the guardrails Section 6 – Procedures

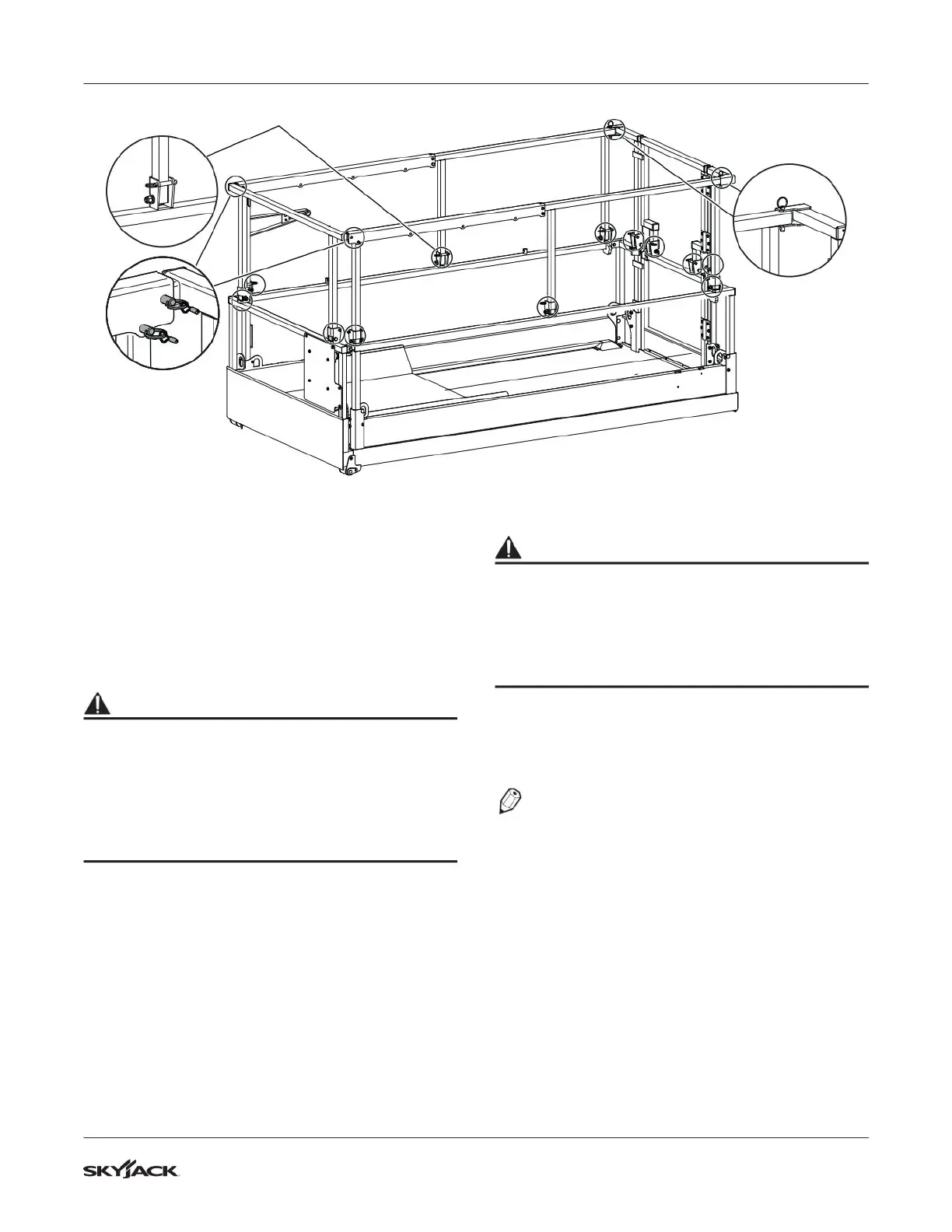

Figure 24 Guardrail lock-pin locations (SJ4740)
6.9-4 Unfold the guardrails (SJ4740)
1. Make sure the MEWP is on firm, level ground.
2. Make sure you fully lower the platform.
3. Push the emergency-stop button on the base
control console.
4. Turn the main power disconnect switch to the
off position.
WARNING
Fall hazard. Use a stable elevated surface that
gives you a solid footing to fold or unfold the
guardrails. You must be at eye-level height (at
a minimum) to the mid-rail. You must have your
hands free to fold or unfold the guardrails from
the external side of the MEWP. If you do not obey,
there is a risk of death or serious injury.
5. Remove the lock-pin from the extension
guardrail, the extension mid-rail, the rear
guardrail, and the rear mid-rail.
WARNING
Fall hazard. Install each lock-pin correctly with
the detent ball of each lock-pin fully through the
guardrail. The guardrail system must be in the
vertical position. An incorrectly locked guardrail
can cause a fall, which can cause death or serious
injury.
6. Unfold the extension guardrail, and install the
lock-pins on the extension mid-rail.
7. Unfold the rear guardrail, and install the lock-
pins on the rear mid-rail.
NOTE
MEWPs with a half gate have 2 pins on the
rear gate. MEWPs with the full gate (optional
equipment) have 4 pins on the rear gate.
8. Unfold the right guardrail, and install the lock-
pins (at the front, center, and rear) on the right
mid-rail.
9. Unfold the left guardrail, and install the lock-pins
(at the front, center, and rear) on the left mid-rail.
Extension handrail
lock-pin locations
Rear gate pin
location
Mid-rail pin
location
