SJ3215, SJ3219, SJ3220, SJ3226, SJ4726, SJ4732, SJ4740 216380ACA
29
Optional equipment Section 3 – Familiarization
FAMILIARIZATION

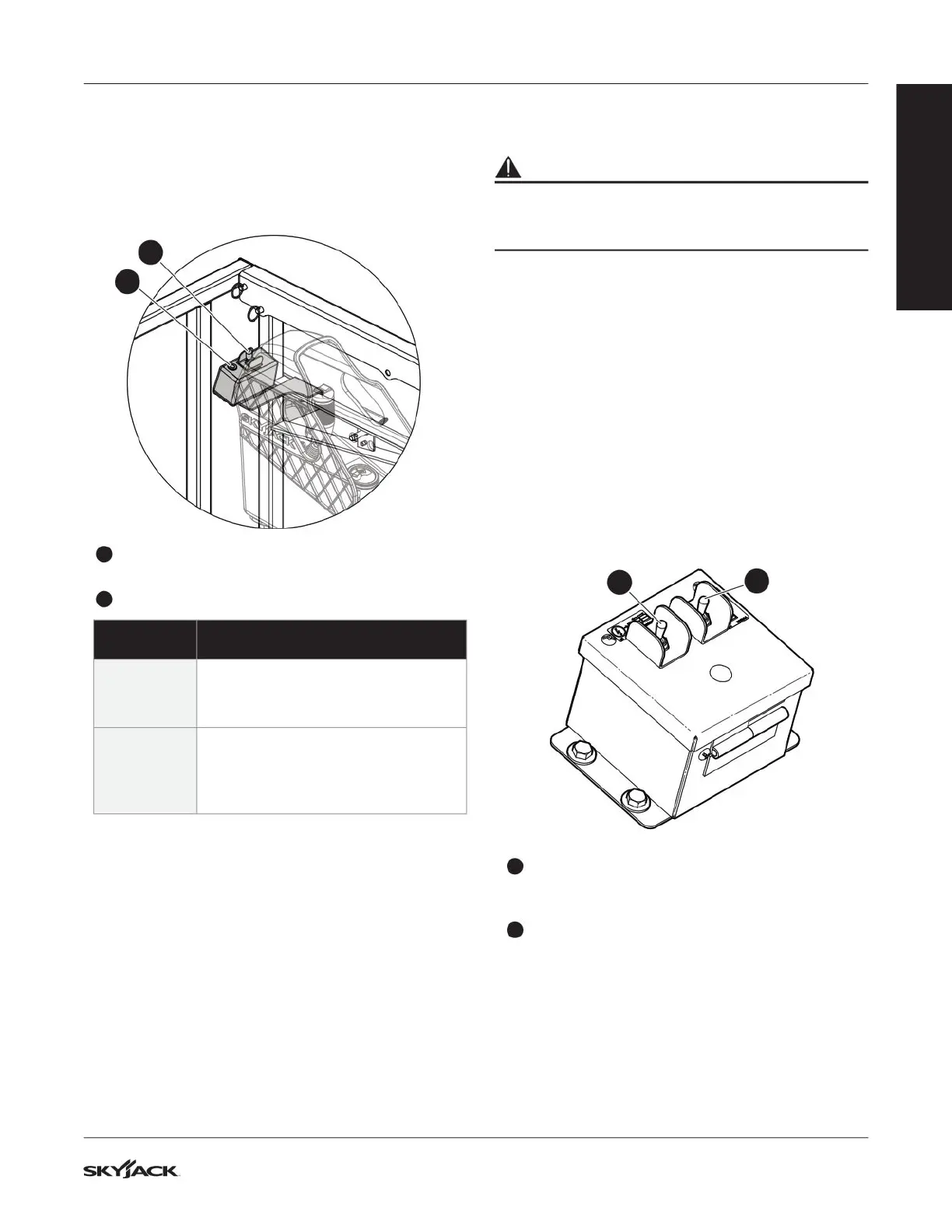

3.5-7 Dual height control console
(SJ3226 and SJ4740)
This control console limits the height of the MEWP
when it is outdoor. Refer to Section 5.4 for the
operation of the dual height function.
1
2
1
Dual height: This switch selects indoor (no wind),
or the outdoor (wind) position.
2
Dual height light
Dual height
light
Status
On
The indoor (no wind) mode is on.
The platform can go to the maximum
height.
Off
The outdoor (wind) mode is on. The
platform can only go to 5.63 m (18 ft
6 in) for SJ3226 and 7.31 m (24 ft) for
SJ4740.
3.6 Optional equipment
CAUTION
Skyjack approved modifications and attachments
can change the MEWP specifications. Refer to the
applicable instructions and labels.
IMPORTANT
Refer to the labels of the optional equipment for
the actual weight. Include this weight to calculate
the total load on the platform. Include personnel
and other materials in the total load.
The weight of the attached parts, panels,
occupants, and tools put together must not be
more than the rated platform capacity.
3.6-1 Power deck control console
(SJ3220 and SJ4726)
This control console extends or retracts the power
deck hydraulically. It is located in the front of the
platform control console.
1
2
1
Enable: This switch energizes the circuit that lets
the extend or retract functions of the extension
platform operate.
2
Extend/retract: This switch extends or retracts
the extension platform.
