Skyjack SJ3215 User Manual

SJ3215, SJ3219, SJ3220, SJ3226, SJ4726, SJ4732, SJ4740 216380ACA
71
Fold the guardrails Section 6 – Procedures

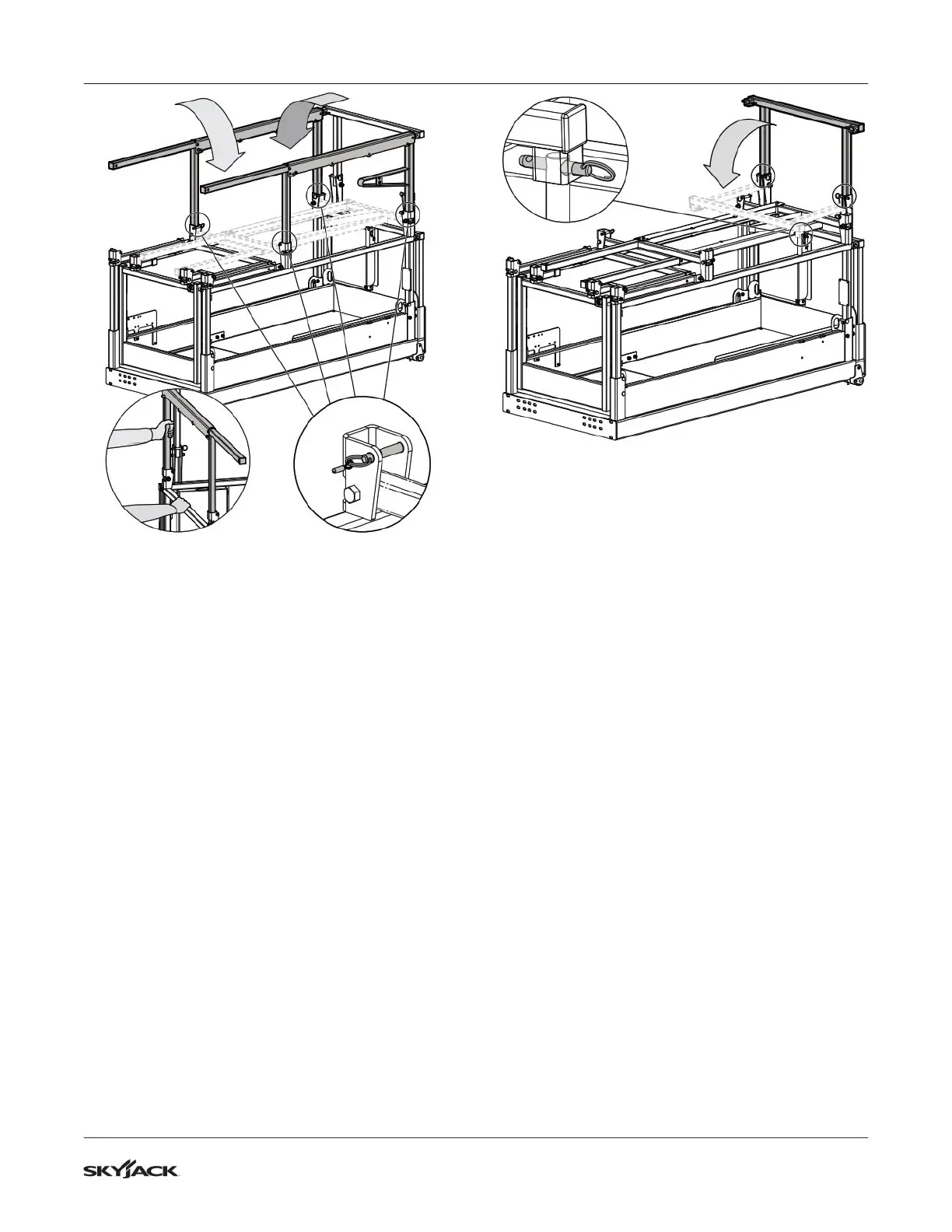

Figure 20 Left and right guardrail folded
25. Remove the lock-pins on the front-right mid-rail.
26. Remove the lock-pins on the center-right
mid-rail.
27. Hold the vertical bar of the extension guardrail
with one hand, and then fold the right guardrail
with the other hand. Refer to Figure 20 for hand
positions.
28. Install the lock-pins to lock the right mid-rail.
29. Remove the lock-pins from the extension
mid-rail.
30. Hold the mid-rail of the extension guardrail with
one hand, and then fold the extension guardrail
with the other hand. Refer to Figure 19 for the
hand positions.
31. Install the lock-pin to lock the extension
guardrail.
