216380ACA SJ3215, SJ3219, SJ3220, SJ3226, SJ4726, SJ4732, SJ4740
94

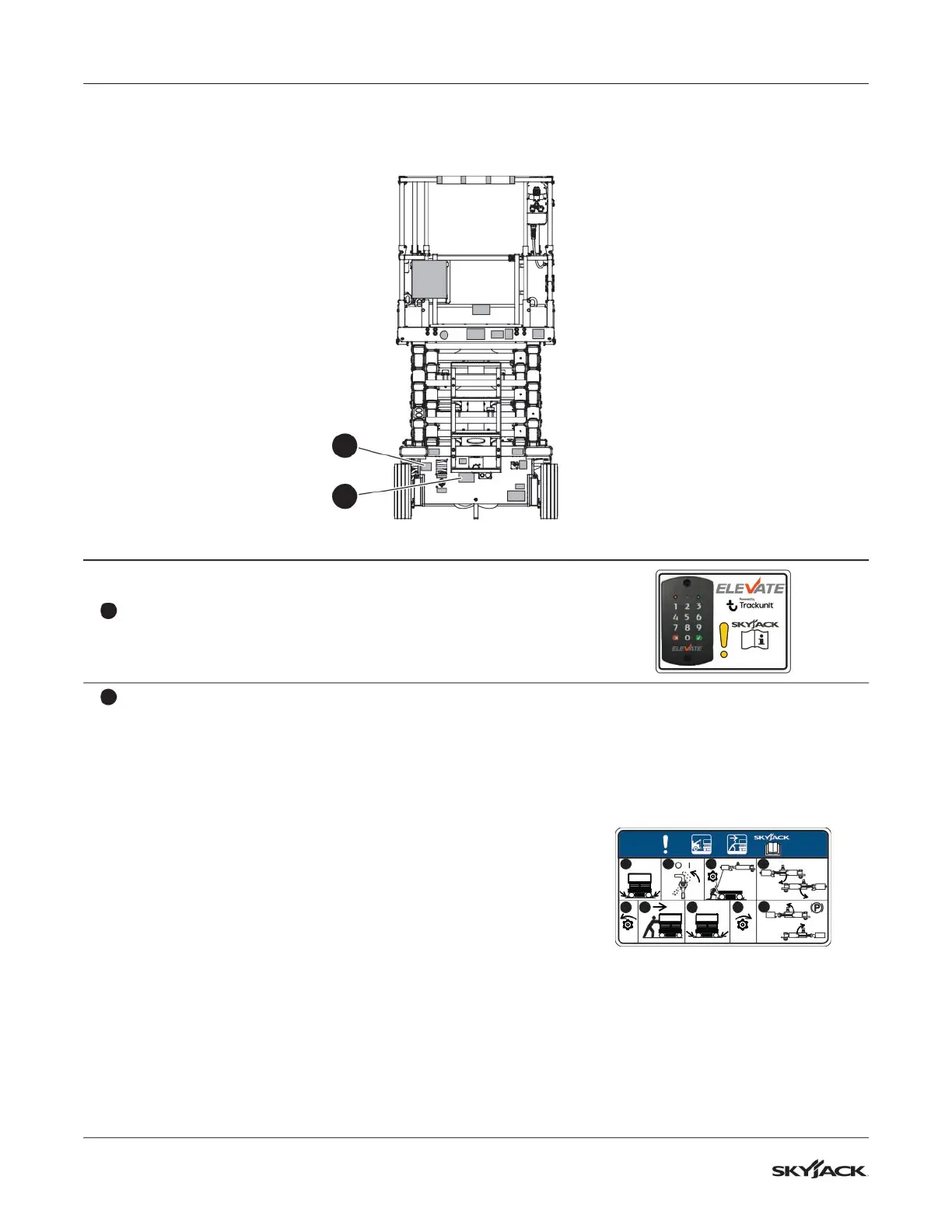

Section 8 – Labels
Labels
Description Label Pictorial
9
Elevate™ Trackunit (optional equipment)
This MEWP has added functionality.
TM
221111
10
Winch/tow/push procedure - pin brakes (SJ3215, SJ3219,
SJ3220, SJ3226, SJ4726, SJ4732 only)
Refer to the operation manual.
1. Use wheel chocks or blocks at the front and rear of the
wheels to prevent MEWP movement.
2. Turn the main power disconnect switch to the off position.
3. Turn the pin brake blocks 90° with a 19 mm (3/4 in) wrench
to release them. The brake pin must not touch the brake
disc.
4. Locate the pin brakes at the rear of the base.
5. Turn the freewheeling valve counterclockwise to a fully open
position.
6. Push, winch, or tow the MEWP to the necessary location.
7. Use wheel chocks or blocks at the front and rear of the
wheels to prevent MEWP movement.
8. Turn the freewheeling valve knob clockwise to a fully close
position.
9. Turn the pin brake blocks 90° with a 19 mm (3/4 in) wrench
to re-engage them.
1
6
2 4
8
9
173025AAZZ
3
5 7
3/4”
(19 mm)
90°
90°
90°
90°
TM
Rear, continued
10
9
