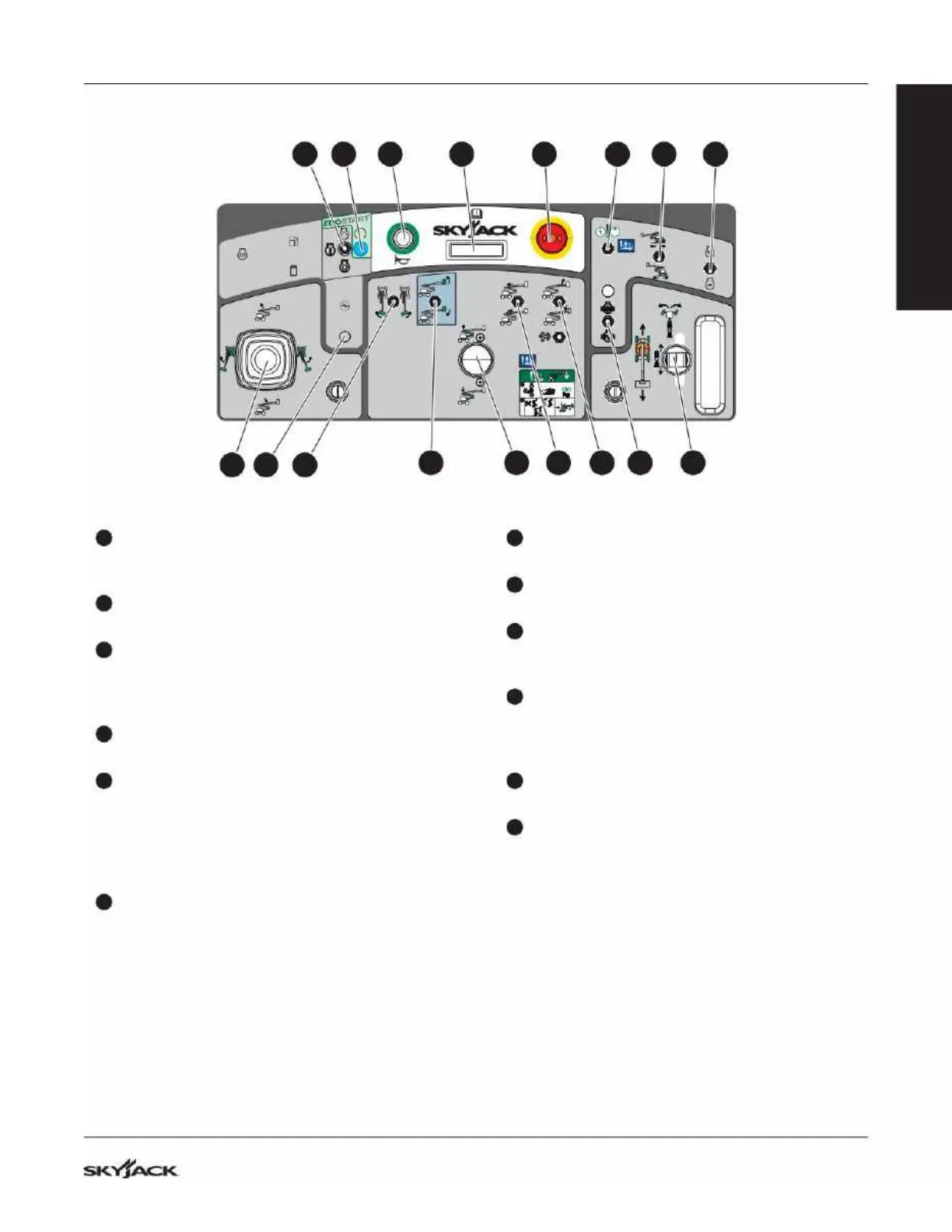

Control functions Section 3 – Familiarization
FAMILIARIZATION
6
Emergency-stop: This button disconnects power
to the control circuit and stops the engine. Pull to
connect the power again.
7
Emergency-power unit: This switch enables the
emergency-power unit when the engine is off.
8
Torque: This switch selects low or high torque.
Select low torque (high speed) or high torque
(low speed). Select high torque when you drive
on a slope.
9
Low/high throttle: This switch selects low or
high engine throttle speeds.
10
Drive/steer controller: This single-axis lever
controls the drive movements. To return it to the
initial neutral position, release the controller. The
rocker switch controls the left and right steering.
Internal springs return the rocker switch to the
initial neutral position when it is released.
11
Differential lock: This switch, when pushed
forward and then released, engages the
differential lock and turns the differential light
on. When this switch is pulled back and then
released, it disengages the differential lock and
turns the differential light off.
12
Jib up/down: This switch controls the up or
down movement of the jib.
13
Boom extend/retract: This switch controls the
extension or retraction of the boom.
14
Riser raise/lower controller: This single-axis
lever controls the raise or lower function of the
riser.
15
Platform-leveling override: This switch
overrides the automatic platform-leveling function
and controls the tilt up or tilt down function of the
platform.
16
Platform rotation: This switch controls the left or
right rotation of the platform.
7
17
EcoStart light (optional equipment): This light
illuminates after the engine shuts down under
specied conditions. Refer to Section 5.23.
1
2
+
+
A
4 5 6 7 8 9
101112131415
1612
173
