213210AAAA SJ46 AJ, SJ51 AJ, SJ63 AJ
26
Section 3 – Familiarization Control functions

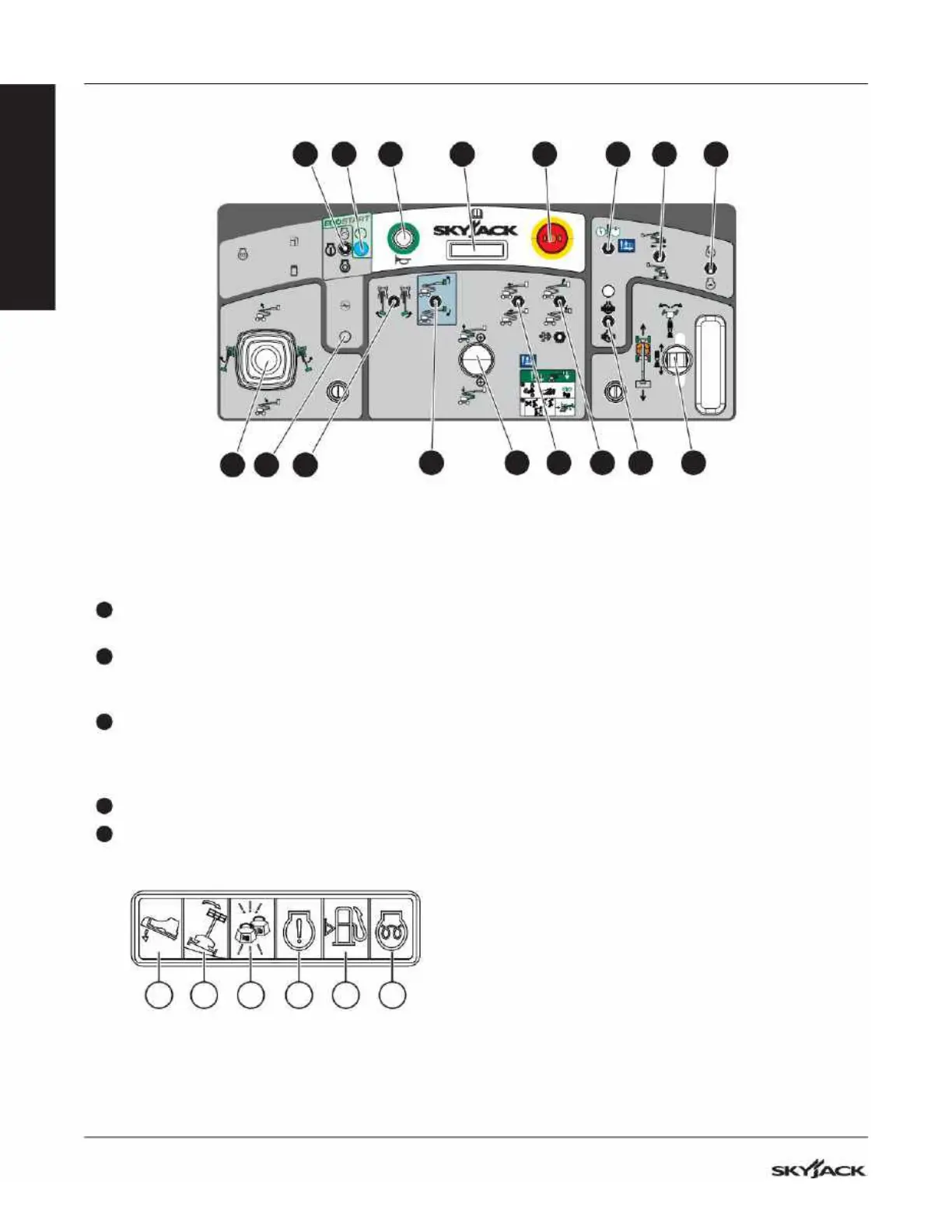

3.3-4 Platform control console
Refer to Section 3.1 for the location of the platform
control console.
1
Generator (optional equipment): This switch
turns the generator on or off.
2
Boom/turret controller: This dual-axis lever
controls the raise or lower function of the main
boom, and the left or right rotation of the turret.
3
Engine start/on/off: In the start position, this
switch starts the engine. When the engine starts,
this switch goes back to the on position. In the
off position, this switch stops the engine.
4
Horn: This push-button makes a sound.
5
Status indicator pilot lights: These lights show
the operation condition and errors in the control
or engine functions.
A B C D E F
a. Footswitch: This light illuminates when the
footswitch is pressed. A 15-second anti-
tiedown feature prevents the footswitch
operation when the operator presses it
for 15 seconds without the activation of a
function.
b. Chassis tilt: This light illuminates when
the MEWP chassis is at an inclination that
activates the tilt switch. At this inclination, an
alarm will make a sound at the platform. Refer
to Section 6.2 for instructions on recovery
from an inclined position.
c. Overload: This red light shows an overload
status. Refer to Section 3.4-6.
d. Engine: This light shows a failure in the
engine control system.
e. Fuel: This light shows a low fuel level.
f. Glow plug (diesel engine): This light
illuminates until the glow plugs complete their
timed-cycle. When the light goes off, you can
start the engine.
1
2
+
+
A
4 5 6 7 8 9
101112131415
1612
173
