Skyjack SJ46 AJ User Manual

213210AAAA SJ46 AJ, SJ51 AJ, SJ63 AJ
24
Section 3 – Familiarization Control functions
FAMILIARIZATION

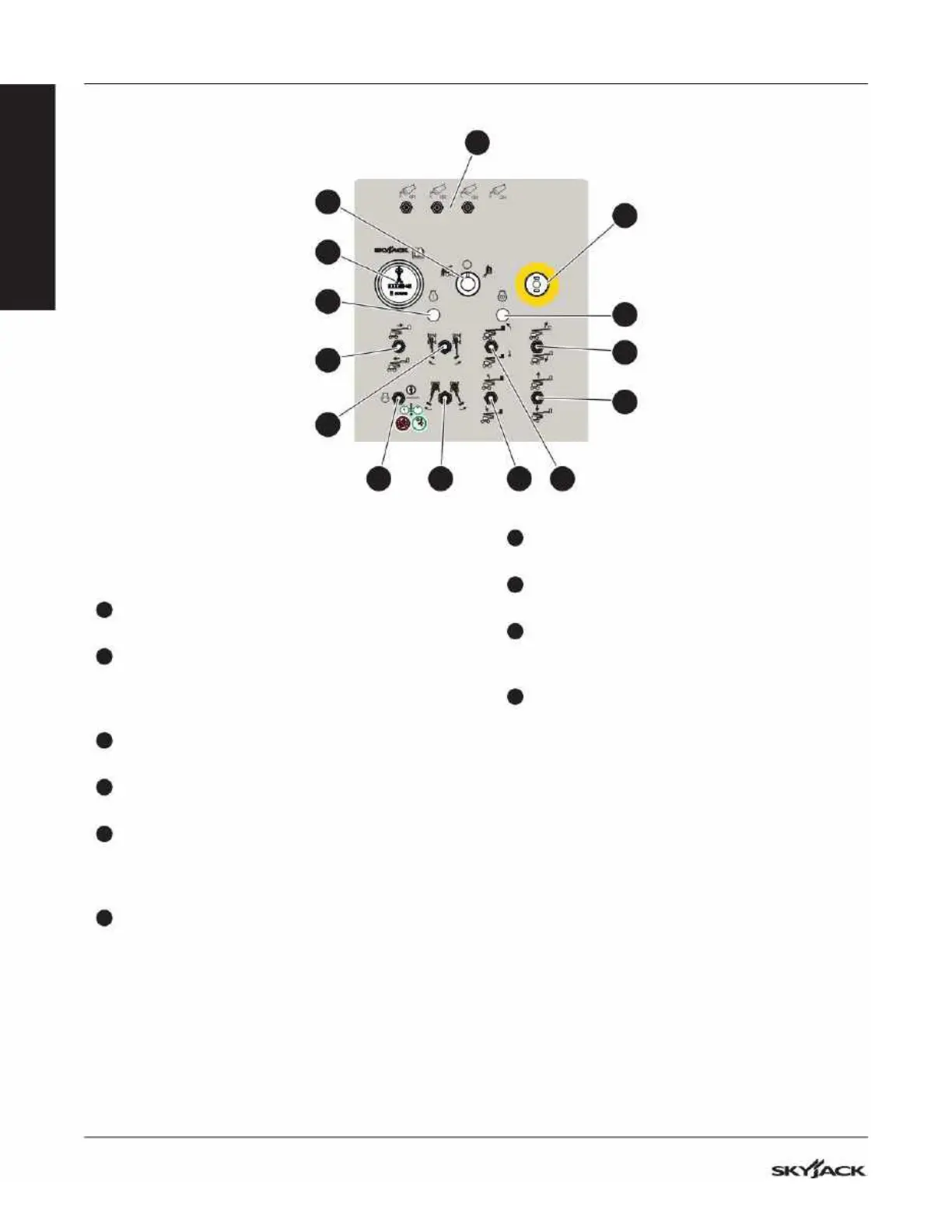

3.3-3 Base control console
Refer to Section 3.1 for the location of the base control
console.
1
Hourmeter: The hourmeter shows the hours of
operation.
2
Circuit breaker: If a power overload or positive
circuit grounding occurs, the circuit breaker
comes out. Push the circuit breaker back into
the initial position to reset the power.
3
Platform rotation: This switch controls the left or
right rotation of the platform.
4
Turret rotation: This switch controls the left or
right rotation of the turret.
5
Platform-leveling override: This switch
overrides the automatic platform-leveling function
and controls the tilt up or tilt down function of the
platform.
6
Jib up/down: This switch controls the up or
down movement of the jib.
7
Boom extend/retract: This switch controls the
extension or retraction of the boom.
8
Main boom raise/lower: This switch controls the
raise or lower function of the main boom.
9
Emergency-stop: This button disconnects power
to the control circuit and stops the engine. Pull to
connect the power again.
10
Riser raise/lower: This switch controls the raise
or lower function of the riser.
2
1
12
13
7
14 4 8 5
9
6
11
10
3
