Section 7 – Technical Diagrams and Specications Technical diagrams
Technical diagrams continued

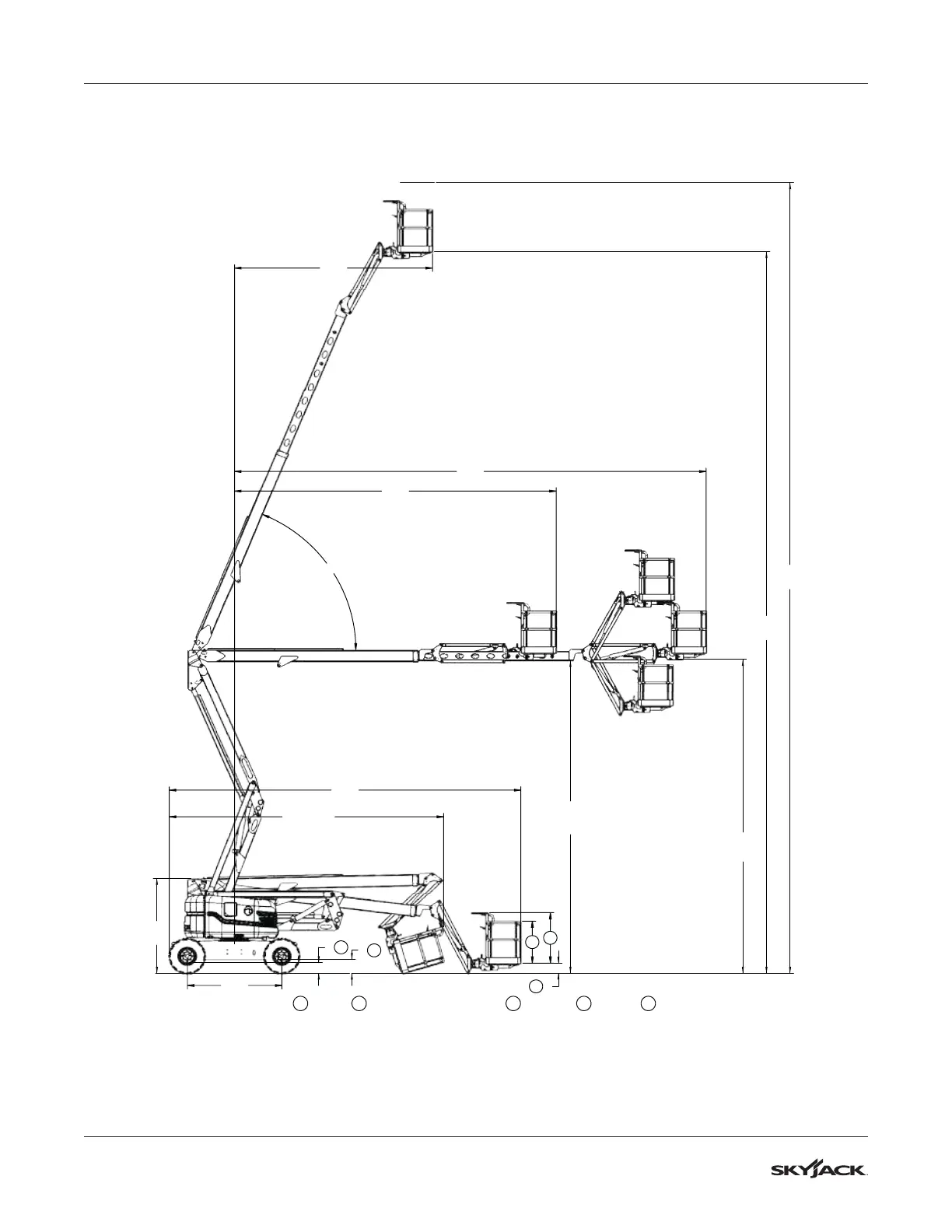

7.1-6 Dimensions - SJ63 AJ
D
C
67°
E
A
12.19 m
[40 ft ]
8.33 m
[23 ft 4 in]
4.80 m
[15 ft 9 in]
8.38 m
[27 ft 6 in]
21.21 m
[69 ft 7 in]
19.38 m
[63 ft 7 in]
8.31 m
[27 ft 2 in]
9.14 m
[30 ft ]
10.03 m
[32 ft 11 in]
2.54 m
[8 ft 4 in]
2.44 m
[8 ft ]
A 0.33 m
[13 in]
B 0.37 m
[14.5 in]
C 1.12 m
[44 in]
D 1.35 m
[53 in]
E 0.28 m
[11 in]
B
