3.4 Features and devices
3.4-1 Lowered travel position and
elevated travel position
The available MEWP functions depend on these
factors:
▪
MEWP conguration (lowered travel position/
elevated travel position)
▪
Chassis tilt
▪
Platform load
▪
Boom position (high/low-capacity)

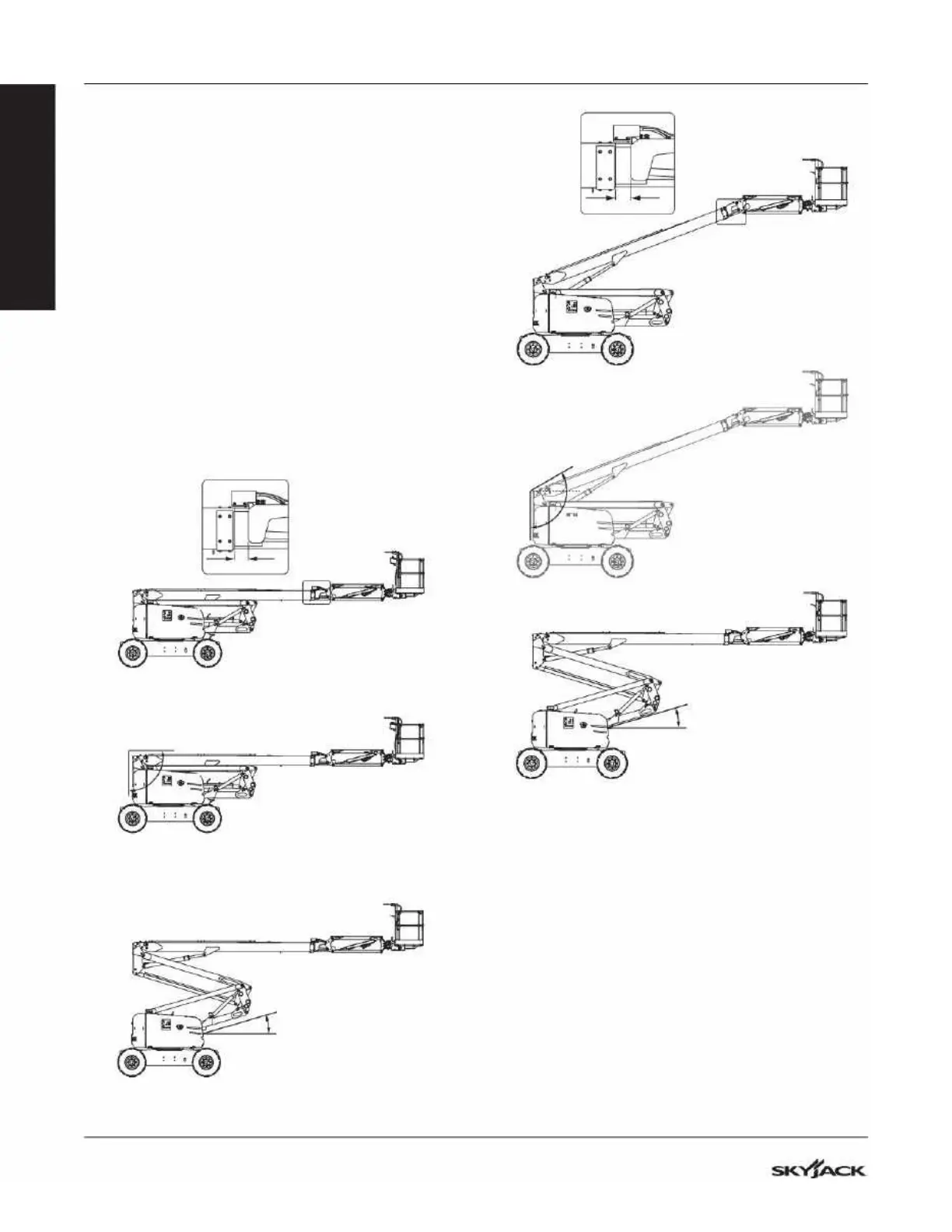

The MEWP is in the lowered travel position if it is in all
of the positions shown in Figure 01.
The MEWP is in the elevated travel position if it is in
any of the positions shown in Figure 02.
< 96°
< 5°
< 2.5 cm
Figure 01 Lowered travel position
≥ 96°
≥ 5°
≥ 2.5 cm
Figure 02 Elevated travel position (any of the boom
positions shown)y of the boom positions shown)
