Section 2 - Operation Function Tests
• Test Driving & Service Brake Functions
1. Ensure path of intended motion is clear.
2. Ensure all four wheels are aligned straight
ahead.
3. Depress service brake pedal.
4. Release parking brake.
Result: Parking brake indicator light
should turn off.
5. Shift transmission lever forward and
release the service brake pedal slowly.
Result: Telehandler should move forward.
6. Depress service brake pedal slowly.
Result: Telehandler should stop.
7. Shift transmission lever backward and
release the service brake pedal slowly.
Result: Telehandler should move
backward.
8. Depress service brake pedal slowly.
Result: Telehandler should stop.
9. Return transmission lever to neutral
position and engage parking brake.
• Test Steering
CAUTION
Before changing steering modes, bring
all four wheels into alignment (i.e., in the
straight-ahead position).
WARNING
Before driving on public roads and
highways check the alignment of the
wheels and drive with FRONT steering
only.
WARNING
Do not change steer mode while
telehandler is traveling.
NOTE
Avoid steering the wheels while telehandler
is stationary.
This unit is equipped with rear axle tilt lock,
which is energized when red light is lit.
Never attempt to level frame when boom is
elevated or when red light is lit.
WAR NI N G
A 152222AA
152218AA
A
All turbo-engines
air cleaner and exhaust
must be sealed during
transport.
NOTICE

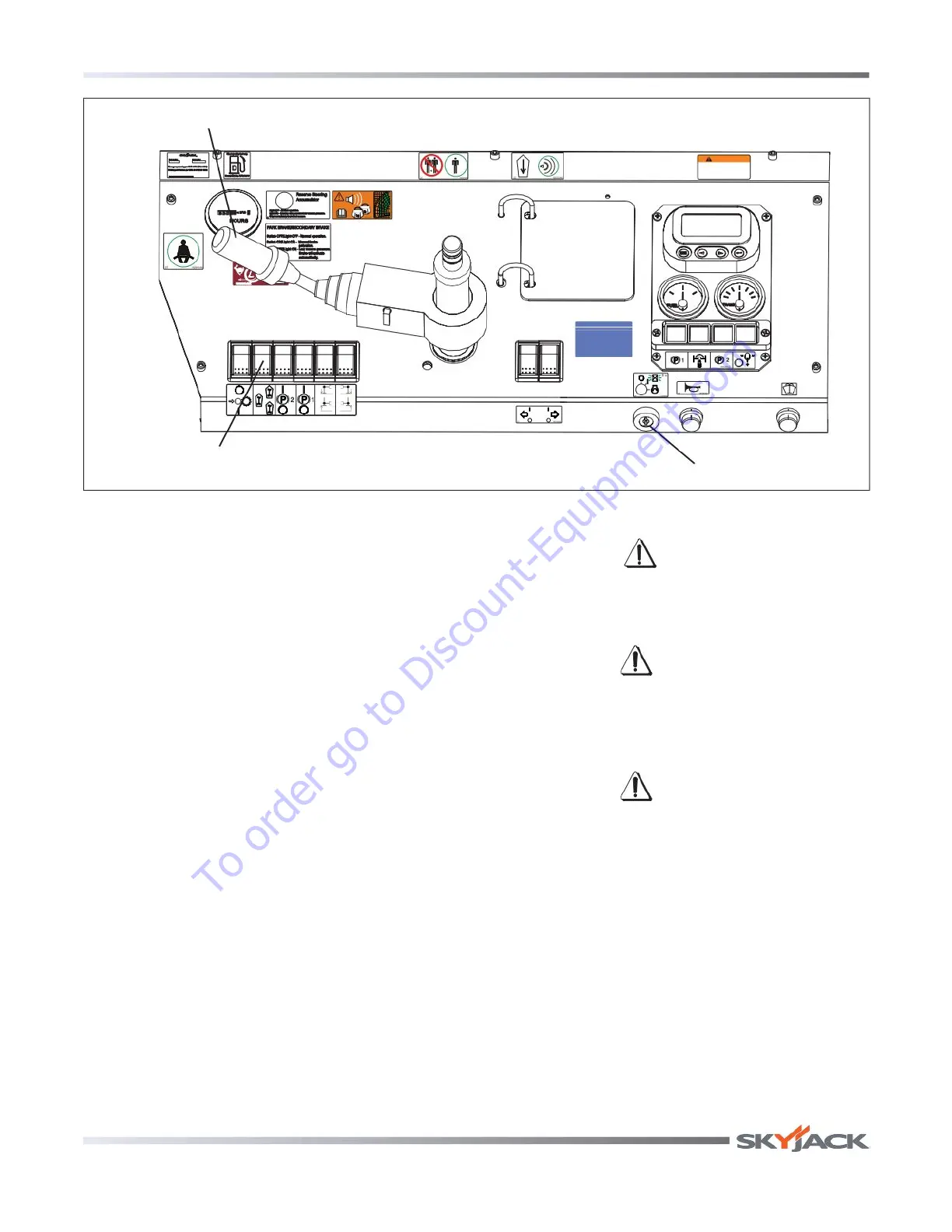

Ignition Switch
Steering
Selector Switch
Transmission
Lever
