Page 40 December 2007
ZB2044
Function Tests Section 2 - Operation

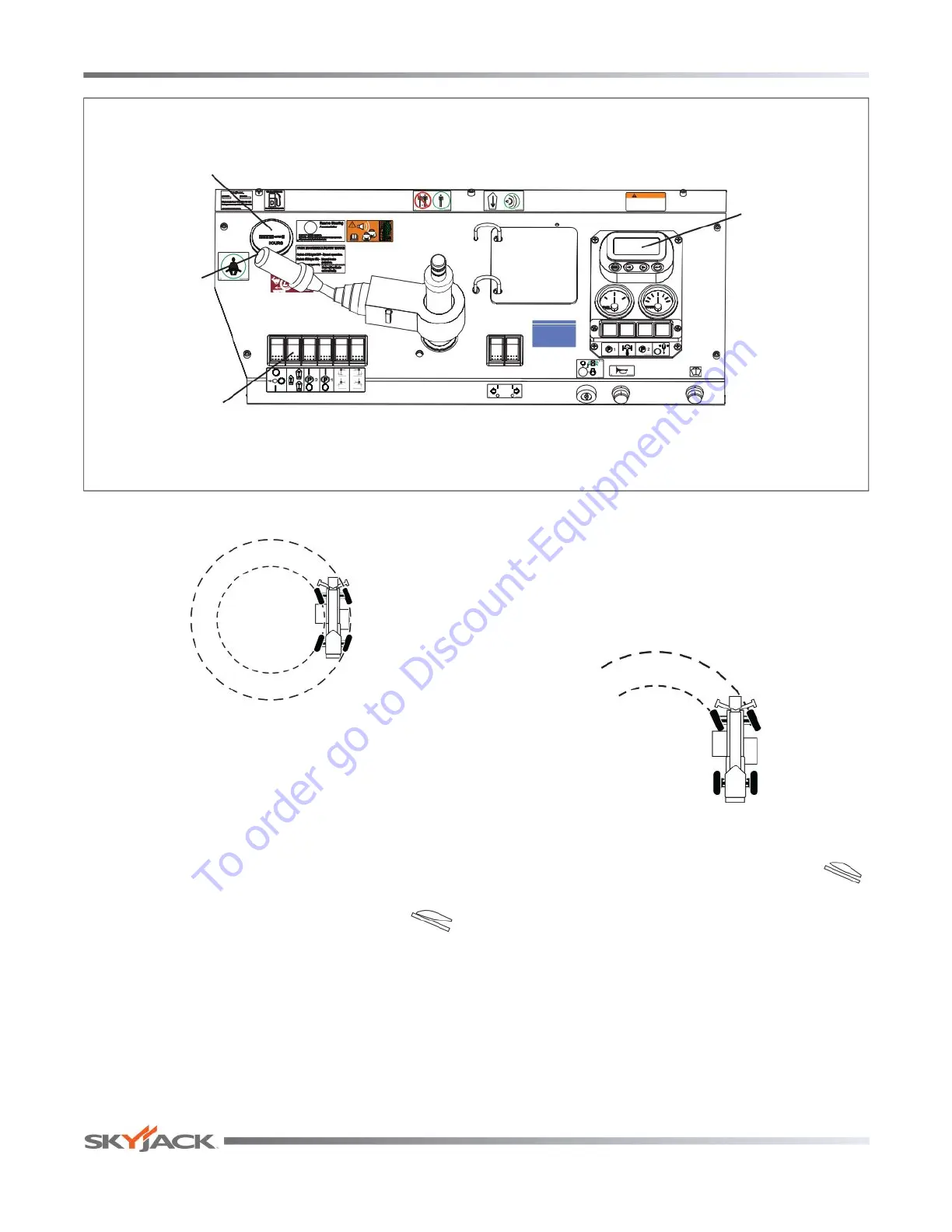

Round Steer
Figure 2-7 Round Steering
1. Ensure path of intended motion is clear.
2. Ensure all four wheels are aligned straight
ahead.
3. Select parking brake switch to off position
and depress service brake pedal.
4. Select rocker switch to forward “ ”
position for round steering.
5. Turn the steering wheel to the left or right
and drive forward.
Result: Telehandler should move in the
chosen direction, producing a turning
circle, with front wheels pointing in the
opposite direction to the rear wheels.
6. Steer the telehandler straight ahead until
all four wheels are aligned.
7. Depress service brake pedal until the
telehandler stops.
Front Steer
Figure 2-8 Front Steering
8. Select rocker switch to middle “ ”
position for front steering.
9. Turn the steering wheel to the left or right
and drive forward.
Result: Only front wheels of the telehandler
should turn in the chosen direction.
This unit is equipped with rear axle tilt lock,
which is energized when red light is lit.
Never attempt to level frame when boom is
elevated or when red light is lit.
WA RNIN G
A 152222AA
152218AA
A
All turbo-engines
air cleaner and exhaust
must be sealed during
transport.
NOTICE
Steering
Selector Switch
Transmission
Lever
Hour Meter
Front Display
Panel
