Section 2 - Operation Function Tests
This unit is equipped with rear axle tilt lock,
which is energized when red light is lit.
Never attempt to level frame when boom is
elevated or when red light is lit.
WA RNIN G
A 152222AA
152218AA
A
All turbo-engines
air cleaner and exhaust
must be sealed during
transport.
NOTICE
Steering
Selector Switch
Transmission
Lever
Hour Meter
Front Display
Panel
10. Steer the telehandler straight ahead until
all four wheels are aligned.
11. Depress service brake pedal until the
telehandler stops.

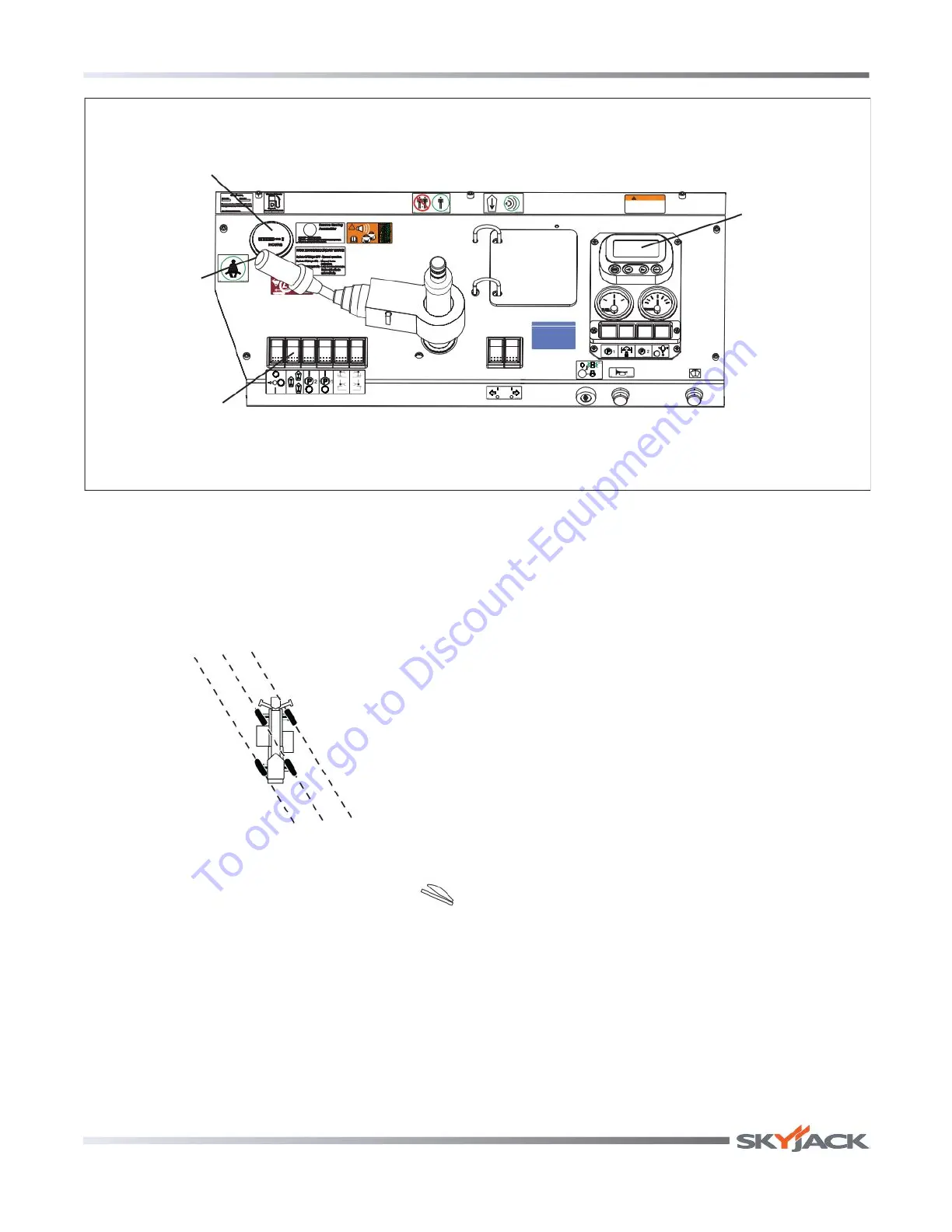

Crab Steer
Figure 2-9 Crab Steering
12. Select rocker switch to backward “ ”
position for crab steering.
13. Turn the steering wheel to the left or right
and drive forward.
Result: Telehandler should move in the
chosen direction with both front and rear
wheels in the same direction.
14. Steer the telehandler straight ahead until
all four wheels are aligned.
15. Depress service brake pedal until the
telehandler stops.
