Reason
Incorrect Speed Adjustment
Spool Valve Not Centered
Defective Check Valves
Low on Oil
Pinched Hose
Defective Mini-Valve
Pressure Relief Valve Not Set Properly
Defective Solenoid or Wiring
Defective Relay Box or Pendant Control
Worn Ball Joint or Retainer Nut
Defective or Dirty Check Valve
Oil Leakage in Circuit
Air Inside Cylinder
Pinched Hose
Low on Oil
Problem
Trendelenburg function moves improperly
Trendelenburg function chatters or loses position
3-4. TRENDELENBURG DIAGNOSIS CHART

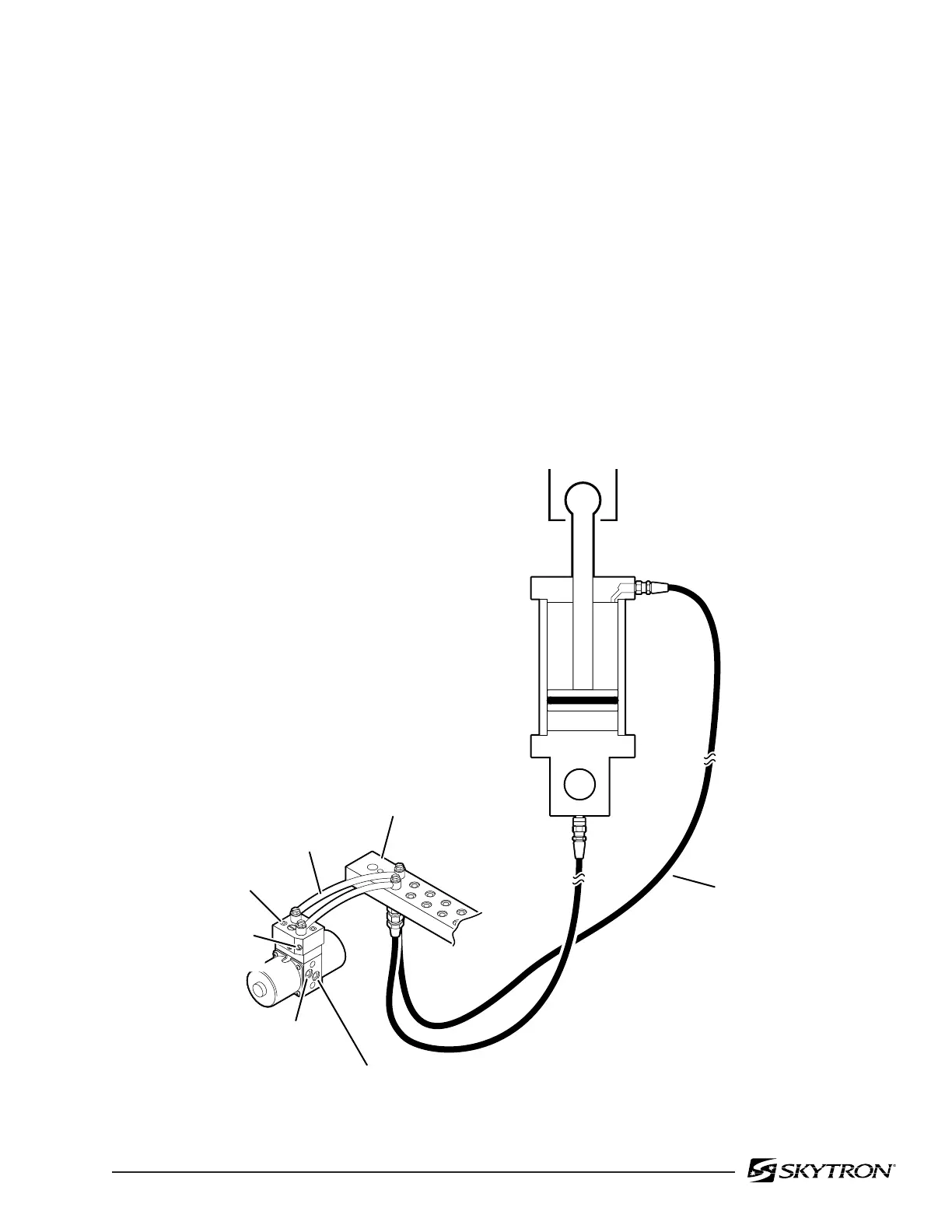

Figure 3-2. Trendelenburg Circuit
82206-302
SPEED
CONTROL
CHECK
VALVE
FLEXIBLE
HOSE
MINI-VALVE
INTERNAL OIL RETURN TO RESERVOIR
INTERNAL
OIL FROM PUMP
COPPER
LINE
PLUMBING
TERMINAL
TRENDELENBURG
CYLINDER
