Page 26

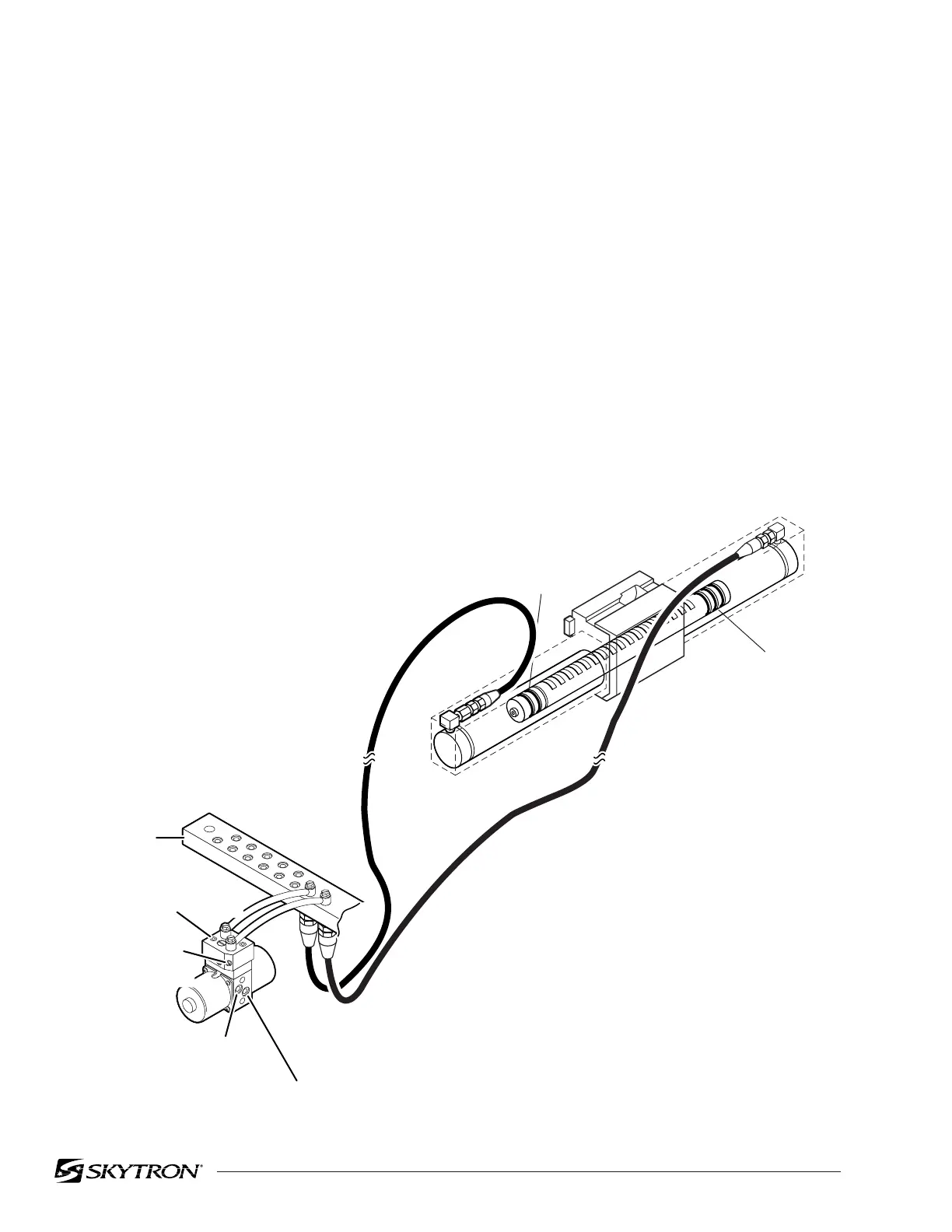

Figure 3-7. Slide Circuit
3-9. SLIDE DIAGNOSIS CHART
Problem
Slide function moves improperly
Slide function chatters or loses position
Reason
Incorrect Speed Adjustment
Spool Valve Not Centered
Defective Check Valve
Low on Oil
Pinched Hose
Defective Mini-Valve
Pressure Relief Valve Not Set Properly
Defective Solenoid
Defective Relay Box or Pendant Control
Loose Retaining Hardware
Microswitch out of adjustment
Loose Table Top
Defective or Dirty Check Valve
OiI Leakage in Circuit
Air Inside Cylinder
Pinched Hose
Low on Oil
82206-307
SLIDE
CYLINDER ASSEMBLY
PISTON
PISTON
SPEED
CONTROL
CHECK
VALVE
MINI-VALVE
INTERNAL OIL RETURN TO RESERVOIR
INTERNAL
OIL FROM PUMP
PLUMBING
TERMINAL
COPPER
LINE
