IDP 600 Terminal Series - Hardware Guide
© SkyWave Proprietary 9 T200, Version 02
3 Specifications
3.1 Connector
The terminals use a circular 10-pin connector.
Table 2 Terminal Connector
Parameter
Part Number
Mating Connector Kit
SA901020-001
3.1.1 Connector Pin-out

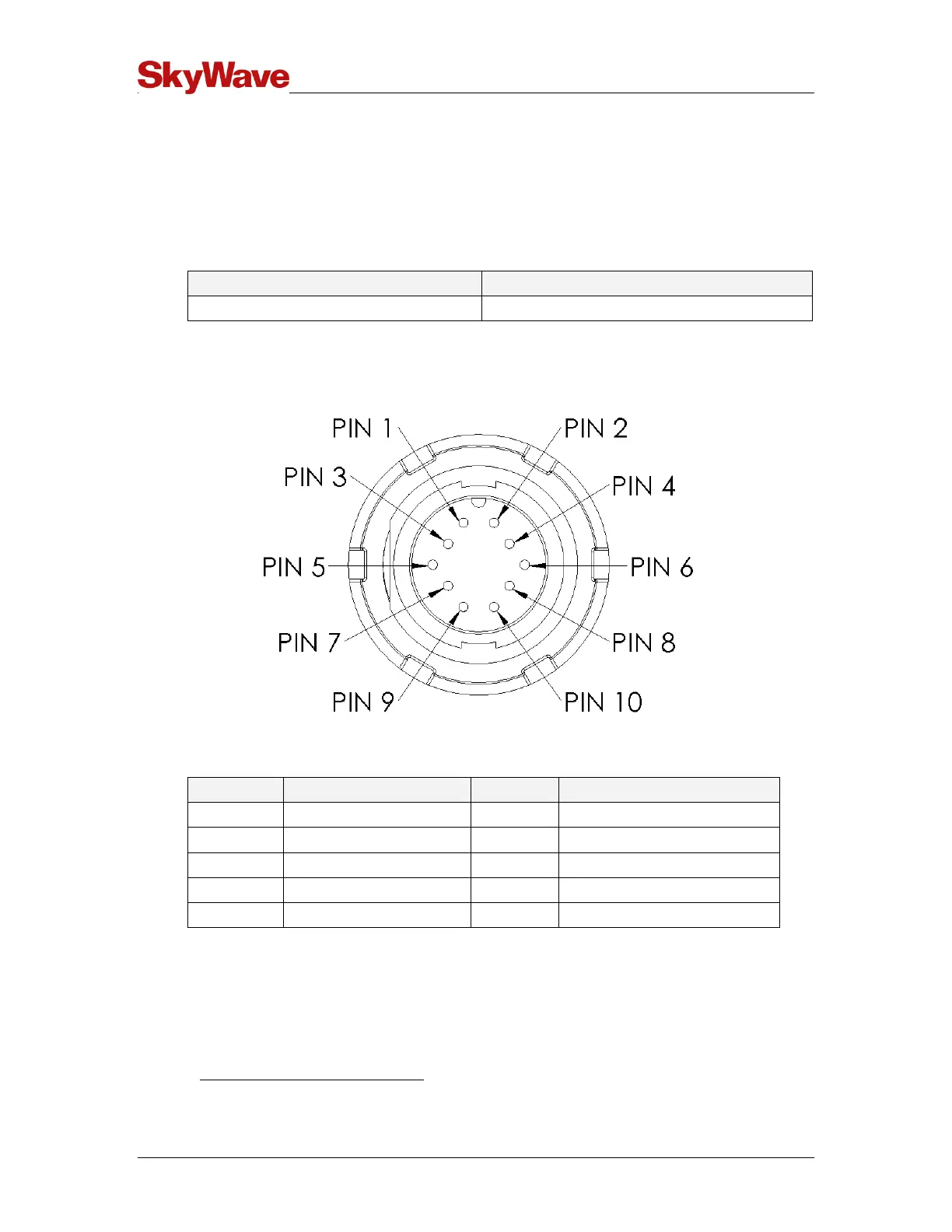

Figure 8 Terminal Connector Pin Assignment (Male)
Table 3 Terminal Electrical Pin Assignment
Pin
Functionality
Pin
Functionality
1
RS-485/J1708
3
A
2
RS-485/J1708 B
3
GND
4
VIN
5
I/O 02
6
I/O 03
7
I/O 01
8
I/O 04
9
RS-232 Tx (Output)
10
RS-232 Rx (Input)
3
J1708 is configurable in software control.
