SkyWave IDP-680 - Figure 48 Raw Cable Details; Table 12 Cable Connector Pin-Out

IDP 600 Terminal Series - Hardware Guide
T200, Version 02 48 © SkyWave Proprietary

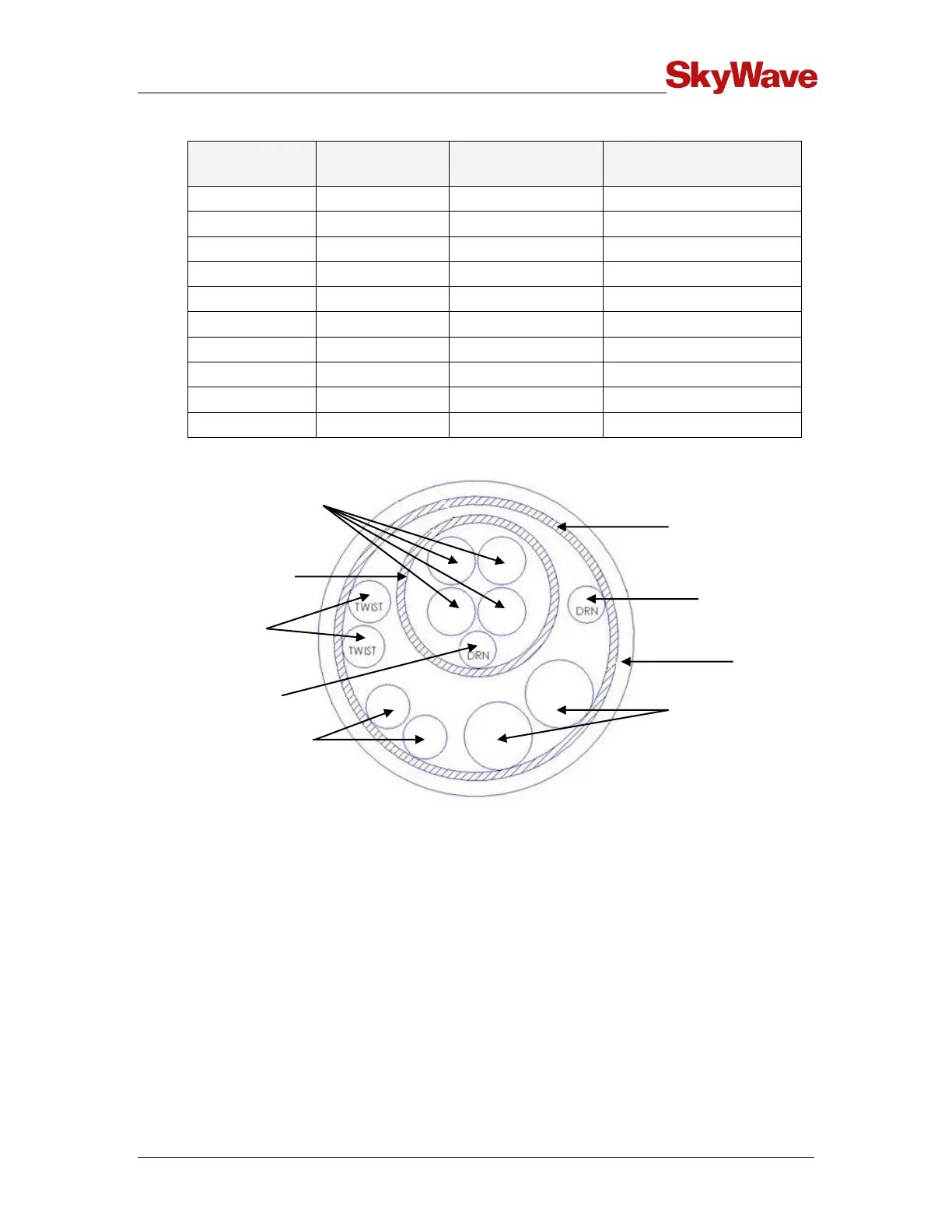

Table 12 Cable Connector Pin-Out
Cable End A
Position
Cable End B
Position
Wire Gauge
Functionality
1
1
22 AWG
RS-485_A
2
2
22 AWG
RS-485_B
3
3
20 AWG
Ground
4
4
20 AWG
VIN (Vbatt)
5
5
22 AWG
I/O 02
6
6
22 AWG
I/O 03
7
7
22 AWG
I/O 01
8
8
22 AWG
I/O 04
9
9
22 AWG
RS-232 Tx (output)
10
10
22 AWG
RS-232 Rx (input)
Figure 48 Raw Cable Details
Overall Shield
Aluminum Foil
Overall Drain
PVC Jacket
Black, UV Stable
2 x
Power/Ground
2 x RS-232
2 x RS-485
Twisted Pair
I/O Drain
I/O Shield
Aluminum Foil
4 x I/O
