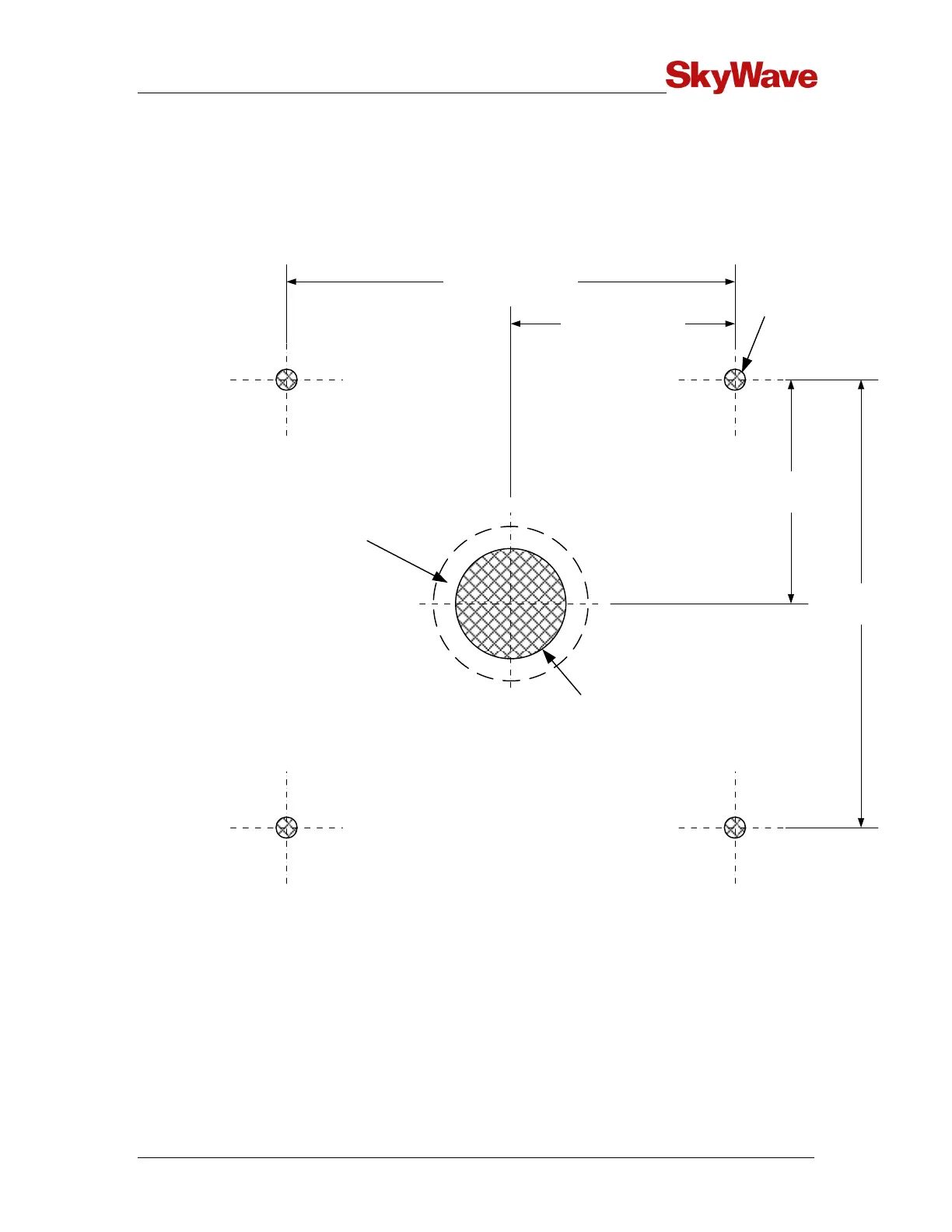

APPENDIX F Drill Template
CAUTION Before drilling check the template against actual hardware for
dimensional accuracy. If it is not correct, DO NOT USE THIS
TEMPLATE.
Nominal Dimensions Shown
Ø 5.5 mm (7/32 in)
4 PLACES
Ø 30.0 mm (1 3/16 in)
Bottom Connector Mount
ONLY
Place RTV Silicone
in this region (360°)
prior to mounting.
101.6 mm (4.0 in)
101.6 mm
(4.0 in)
50.8 mm (2.0 in)
50.8 mm
(2.0 in)
