IDP 600 Terminal Series - Hardware Guide
T200, Version 02 46 © SkyWave Proprietary

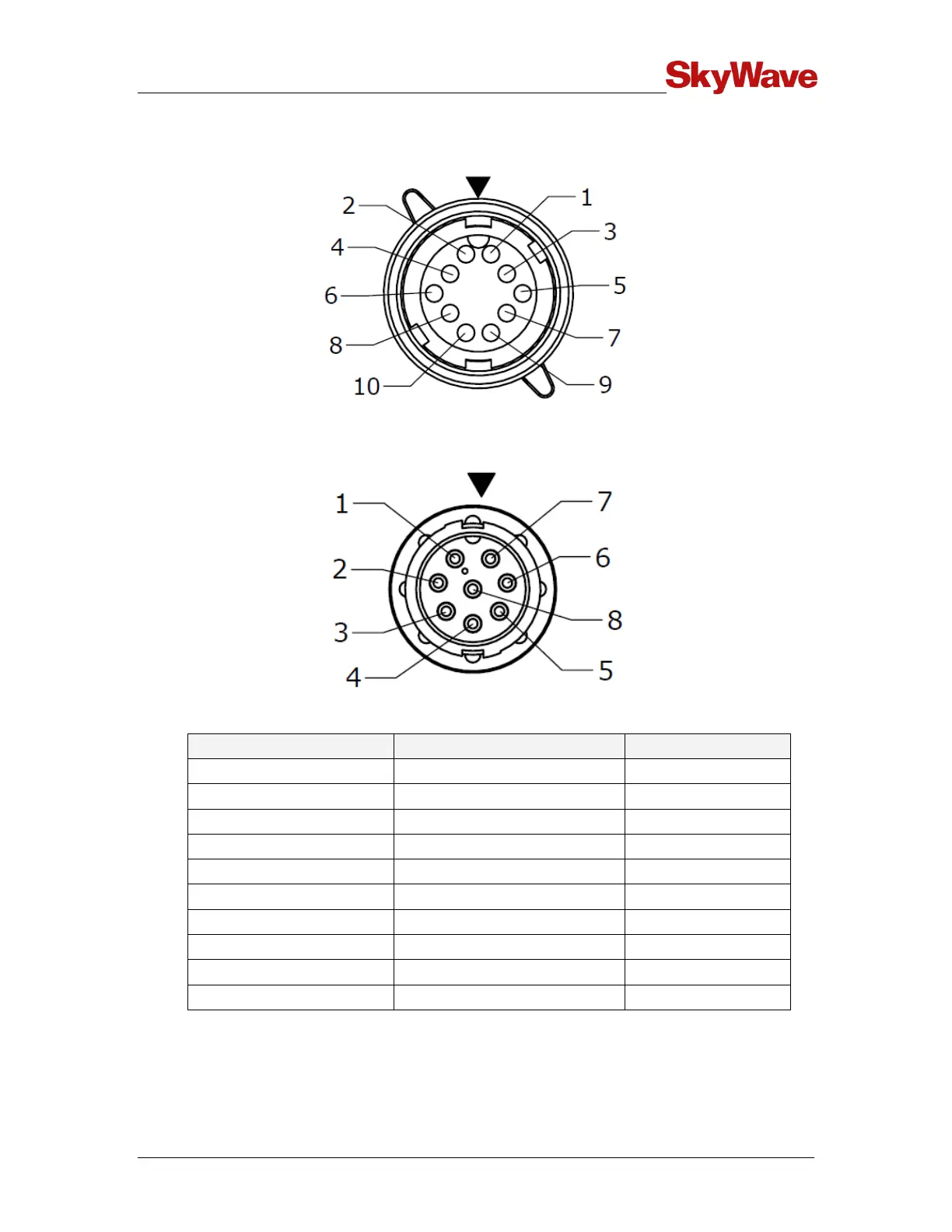

Figure 45 IDP Connector End Pin-Out
Figure 46 DMR-800 Mating Connector End Pin-Out
Table 11 Cable Connector Pin-Out
IDP Position
DMR-800D Position
Wire Gauge
1
N/C
-
2
N/C
-
3
4
18 AWG
4
5
18 AWG
5
6
20AWG
6
7
20 AWG
7
1
20 AWG
8
8
20 AWG
9
2
20 AWG
10
3
20 AWG
Key Slot
Key Slot
