Slaughter 4320 - Failure Mode Displays

18

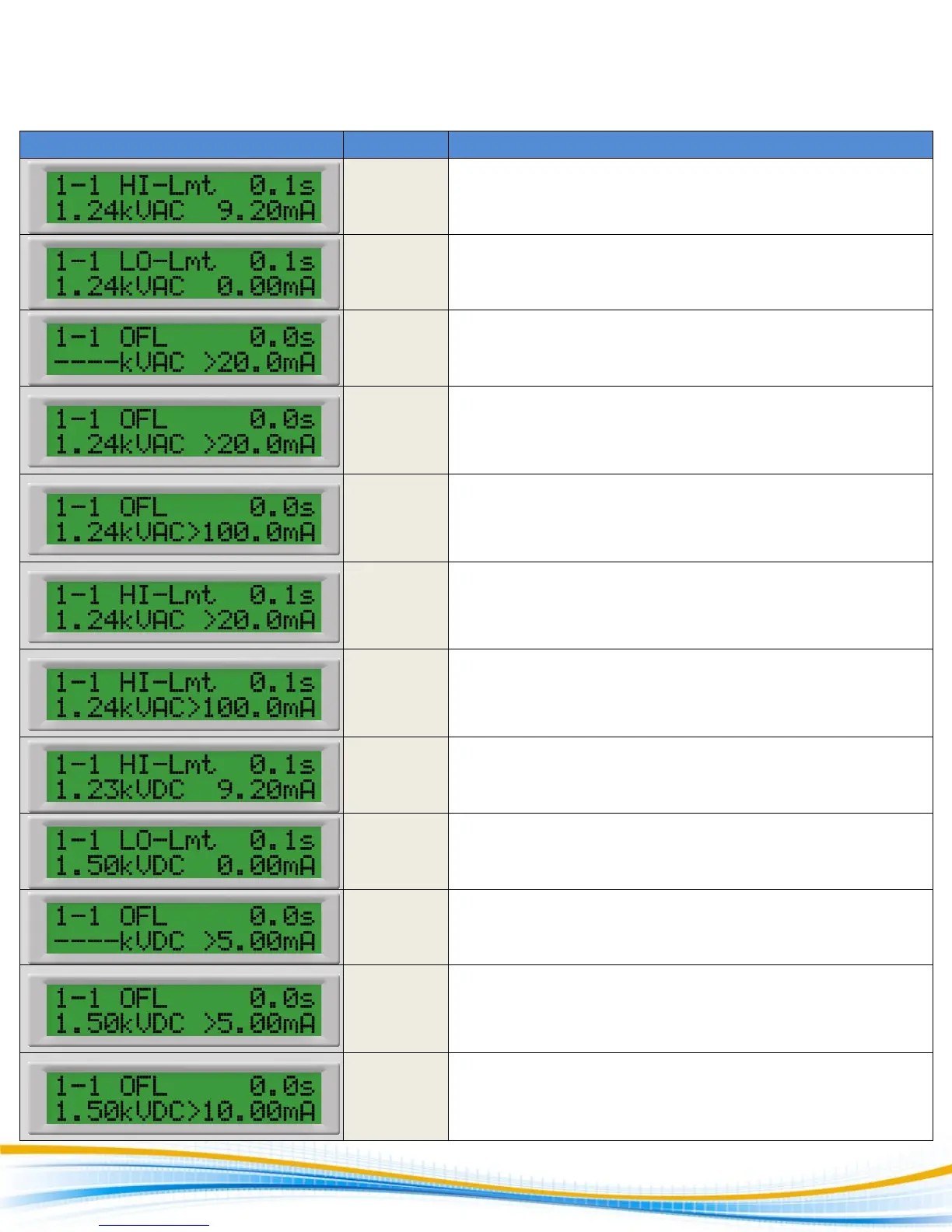

Failure Mode Displays
Failure Mode Display**
Test Type
Description
AC Hipot
Displayed if the leakage current exceeds the high limit
setting, but does not exceed the metering range.
AC Hipot
Displayed if the leakage current does not exceed the low
limit setting.
AC Hipot
Displayed if there is a short circuit in the DUT during the test.
AC Hipot
4320 only. Displayed if a flash over occurs in the DUT during
the test, which results in an OFL condition due to the current
exceeds the maximum metering range.
AC Hipot
4520 only. Displayed if a flash over occurs in the DUT during
the test, which results in an OFL condition due to the current
exceeds the maximum metering range.
AC Hipot
4320 only. Displayed if the leakage current exceeds the
metering range and neither a short circuit nor flash over
occurred.
AC Hipot
4520 only. Displayed if the leakage current exceeds the
metering range and neither a short circuit nor flash over
occurred.
DC Hipot
Displayed if the leakage current exceeds the high limit
setting, but does not exceed the metering range.
DC Hipot
Displayed if the leakage current does not exceed the low
limit setting.
DC Hipot
Displayed if there is a short circuit in the DUT during the test.
DC Hipot
4320 Only. Displayed if a flash over occurs in the DUT during
the test, which results in an OFL condition due to the current
exceeds the maximum metering range.
DC Hipot
4520 Only. Displayed if a flash over occurs in the DUT during
the test, which results in an OFL condition due to the current
exceeds the maximum metering range.
