Using the Adapter Box
The adapter box is an optional accessory and is not provided as standard equipment with the model
4320/4520. If you would like to acquire an adapter box for use with your tester, please contact The Slaughter
Company using the contact information provided in the Safety section of this manual.

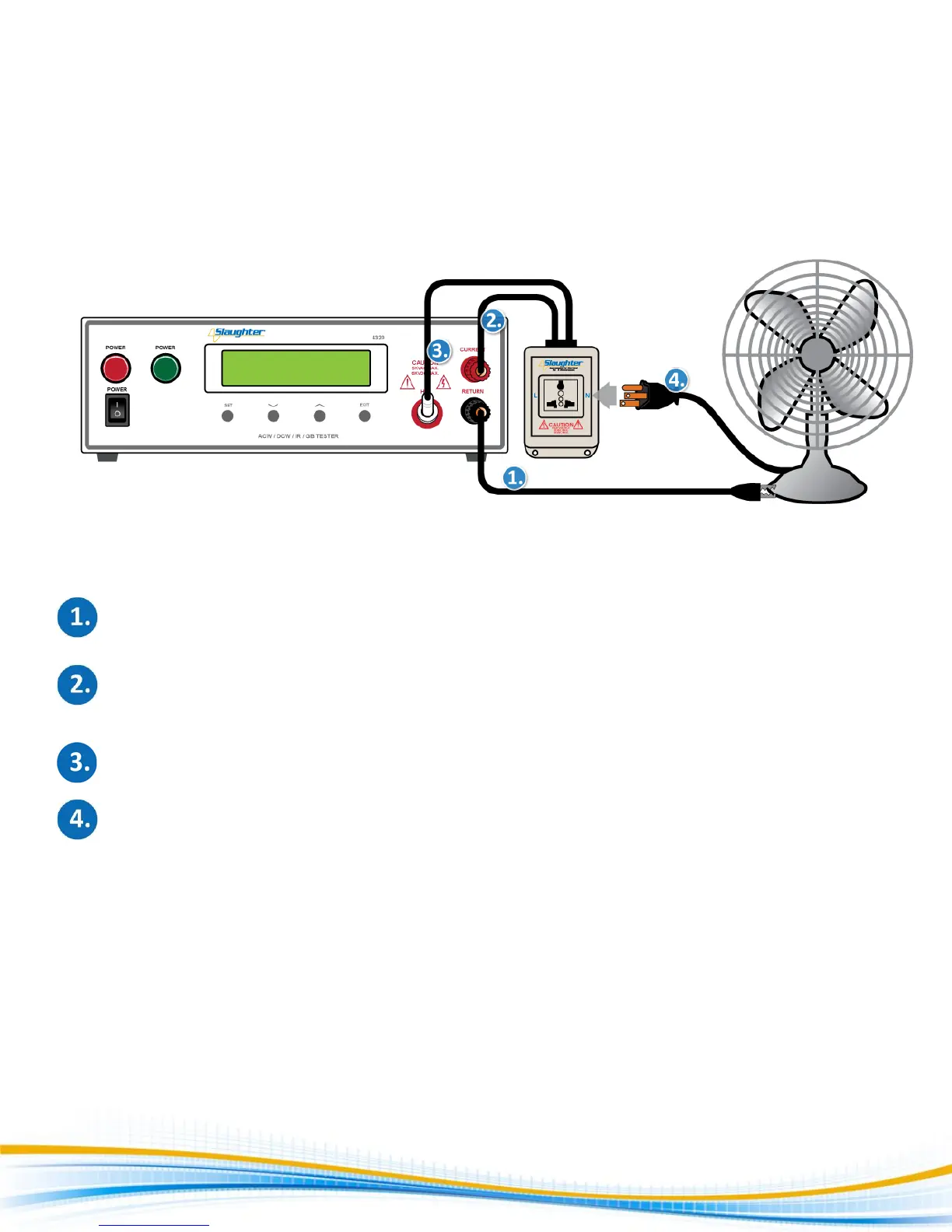

The following diagram shows how to connect the adapter box to the 4320/4520 and to the device under test.
The rear output connections may also be used for connecting the adapter box.
Connect the black return lead (99-10008-01) to the front panel return output terminal and connect the
other end of the lead to the dead metal on the chassis of the DUT.
Connect the high current lead (99-10009-01) from the adapter box to the front panel current output
terminal.
Connect the high voltage lead (102-055-913) from the adapter box to the front panel high voltage
terminal.
Plug your DUT into the adapter box.
This adapter box allows for connection to an item that is terminated in a three-prong line cord. If testing a
product which is terminated in a three-prong plug, you are also required to perform a Ground Bond test on
the ground conductor of the DUT to the chassis or dead metal of the product. The high current is wired to the
ground pin of the receptacle box and from there the test is performed on the ground conductor of the DUT to
the chassis or dead metal of the product. With the model 4320/4520, you can perform the Hipot and Ground
Bond tests sequentially.
