Using the Tester Accessories:
NEVER CONNECT THE ADAPTER BOX OR TEST LEADS TO THE TESTER WHILE THE
HIGH VOLTAGE OUTPUTS ARE ENERGIZED.
Using the Test Leads

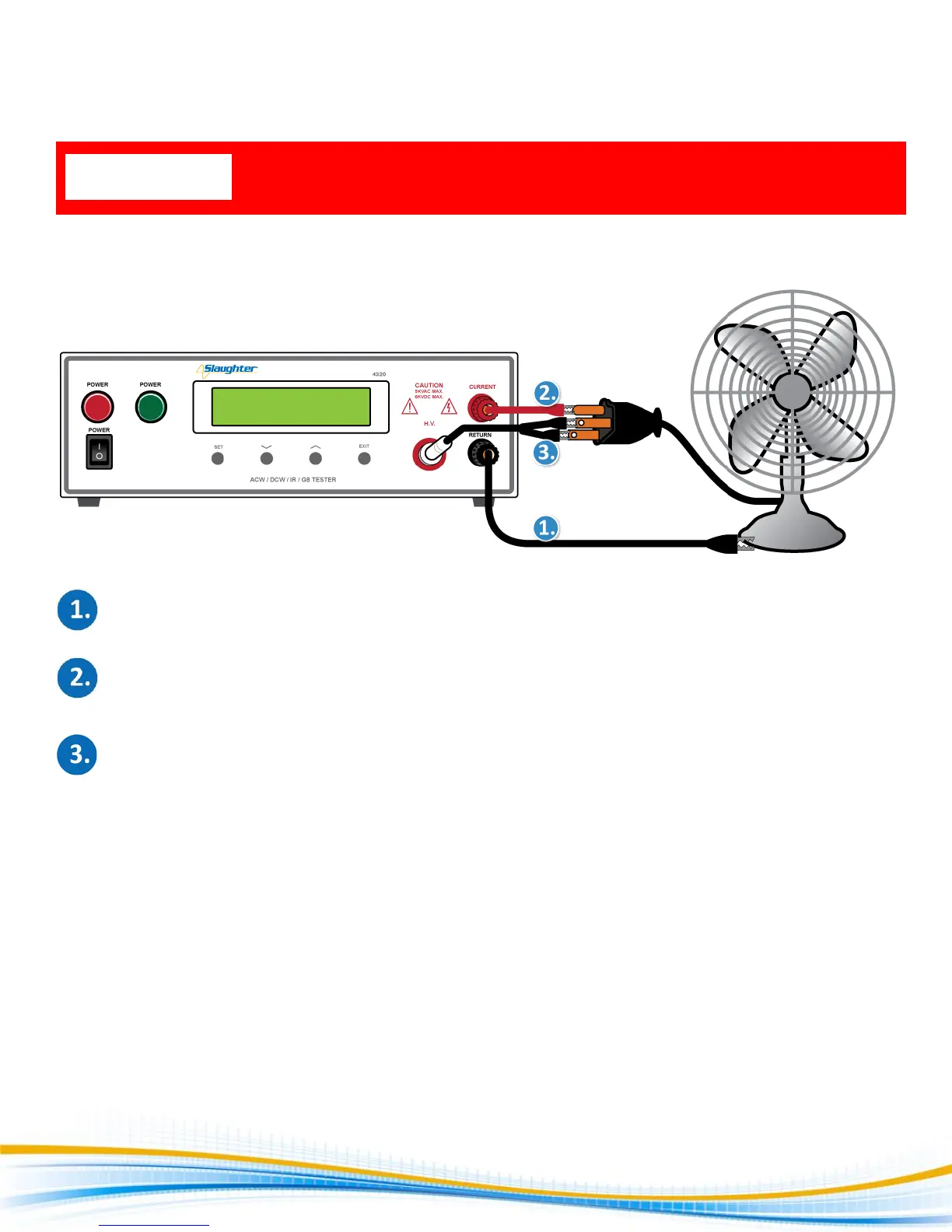

Connect the black return lead (99-10008-01) to the front panel return output terminal and connect the
other end of the lead to the dead metal on the chassis of the DUT.
If you are performing a Ground Bond test, connect one end of the high current lead (99-10009-01) to
the front panel current output terminal and the other end to the ground pin of the DUT line cord.
If you are using the high voltage lead (102-055-913, w/ red clip) or probe, connect it to the front panel
high voltage terminal and connect the other end of the cable to both the hot and neutral pins of the
line cord.
