To calibrate AC voltage please follow procedure on next paragraph, to calibrate other parameters use Up ()
or Down () arrow keys to scroll to the desired calibration point, then follow procedure on relative paragraph
below.
When the calibration process is completed successfully and the tester accepts the entered calibration data it
will output one short “beep” and advance to the next calibration point, otherwise the tester will output two
short “beeps” and will not advance to the next calibration point.
2. To calibrate AC Voltage
Please connect a standard 5000V AC Voltmeter to the HV and RETURN connectors.

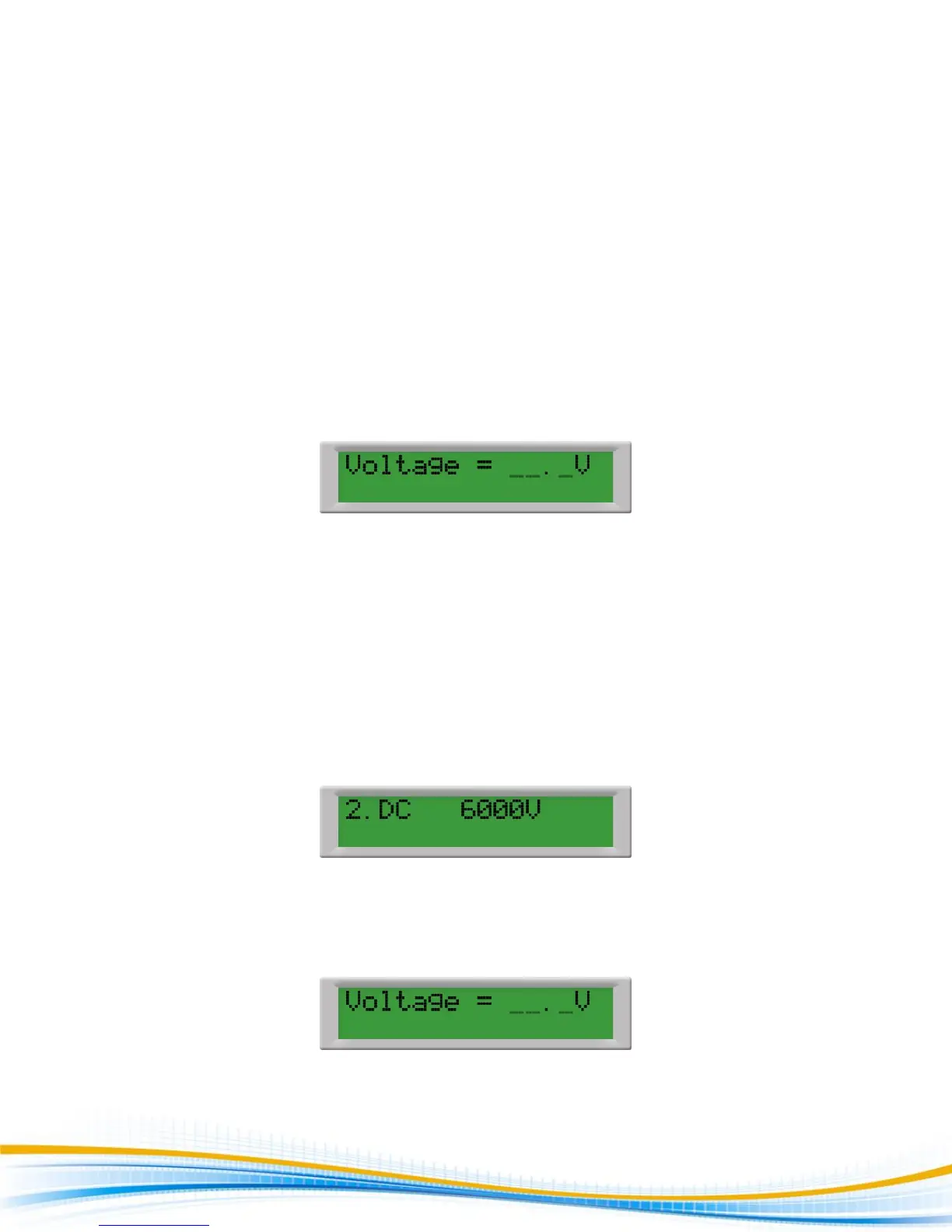

Then press the TEST button on the front panel. The tester will provide around 5000VAC on the output
connectors and the display will show:
Press the Up () or Down () arrow keys to enter the reading of the standard AC Voltmeter into the tester.
Then press SET key to store the voltage setting and to advance to the next calibration point or press the RESET
button to return to the calibration menu without changing the calibration setting. Press the EXIT key to exit
from the calibration mode and to return to the test mode.
3. To calibrate DC Voltage
Please connect a standard 6000V DC Voltmeter to the HV and RETURN connectors.
Press the Up () or Down () arrow keys until the display shows:
Then press the TEST button on the front panel. The tester will provide around 6000VDC on the output
connectors and the display will show:
