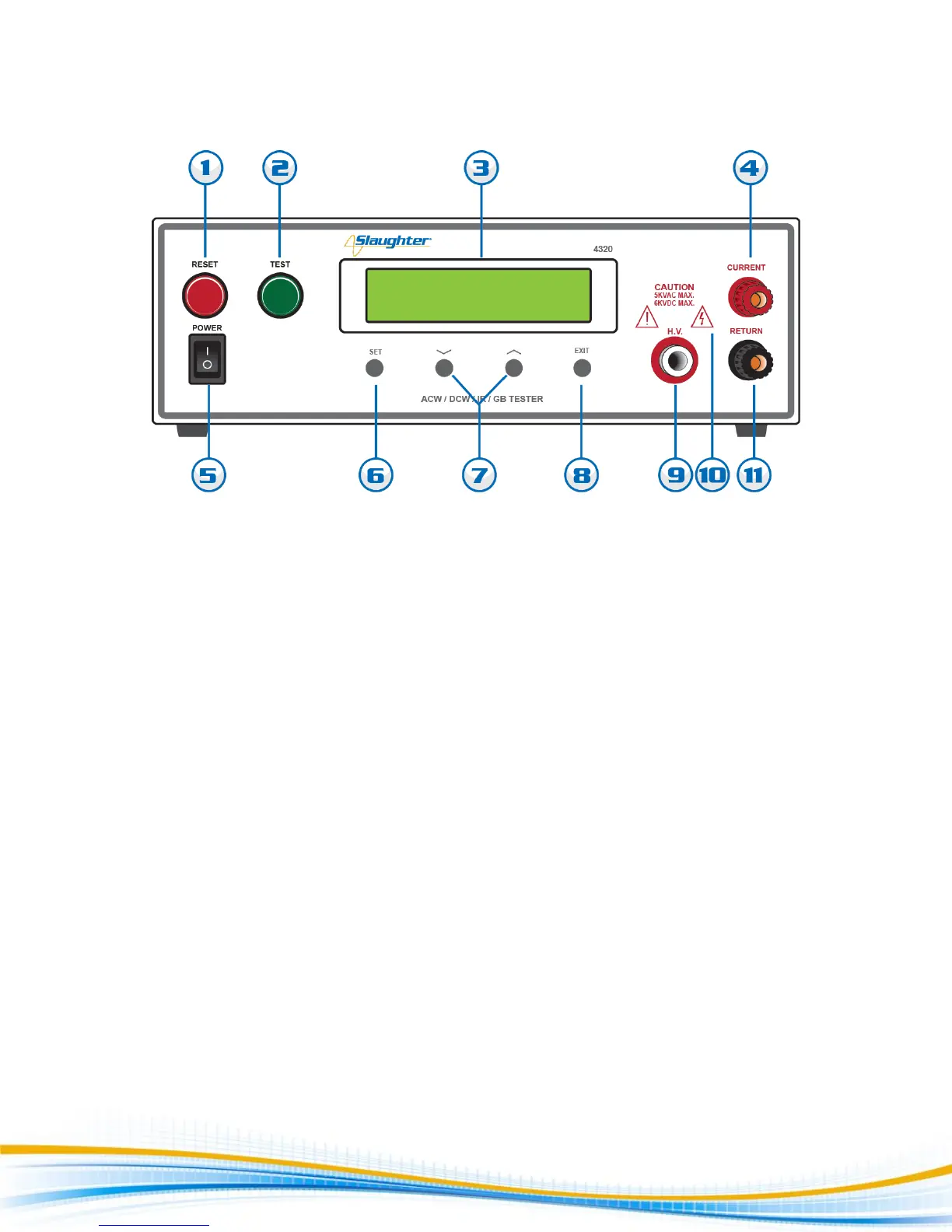

Front Panel Controls
8. EXIT KEY: Use this key to enter the test mode screen to initiate a test. Also use this key to enter the
System menu parameters and to exit from the System menu.
9. HIGH VOLTAGE OUTPUT JACK: For the connection of the detachable 6-foot (1.8 m) red high voltage test
lead. The silicone rubber insulation is flexible for easy handling and is rated at 30KVDC. The jack is
recessed for safety when this lead is not being used.
10. HIGH VOLTAGE ARROW (LED INDICATOR): This indicator flashes to warn the operator that high voltage is
present at the high voltage output terminal.
11. RETURN OUTPUT JACK: For the connection of the detachable 5 foot (1.52 m) black return test lead or
three-prong receptacle adapter box. This jack is always used when performing a test. Please refer section
E. Adapter Box connection for details on connecting the adapter box between the tester and the device
under test.
