4 TECHNICAL DATA
4.1 Status LED
MCS2 controllers without an integrated Hand Control Module are equipped with a status LED. This
LED shows the current device state. Usually the LED is permanently on signalizing the normal
operation. A sensor module attach or detach process is indicated by fading the LED down and up
for ca. 1 second. According to the following table different flashing patterns may occur.

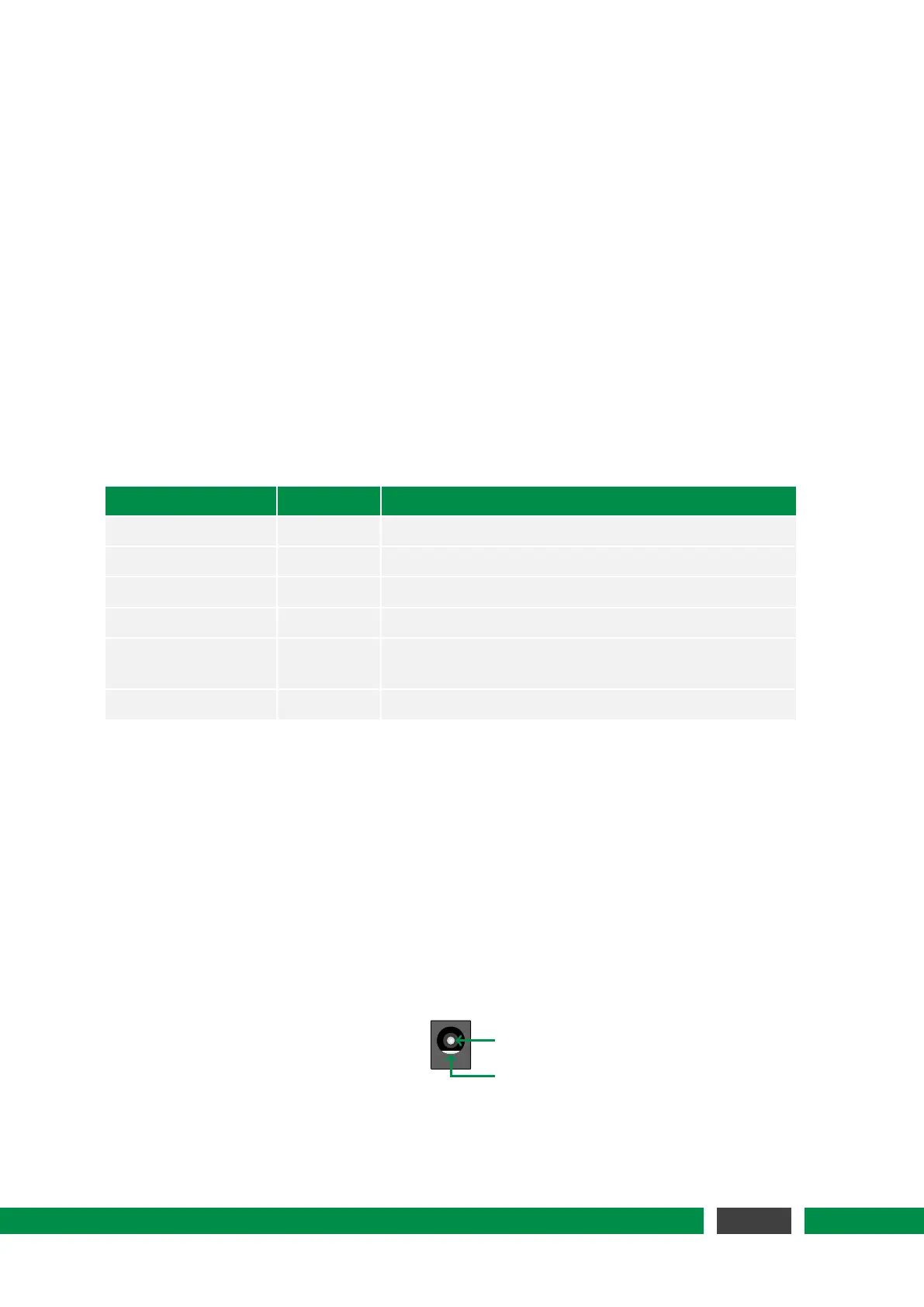

Table 4.1 – LED states
LED Pattern Frequency Description
On - Regular operation
Flashing 2 Hz Over-temperature of min. one amplifier
Flashing 5 Hz High-voltage overload
Flashing 10 Hz High-voltage supply failure
Flashing 15 Hz The device is in the bootloader state and has no valid
application
Fading up and down 1 Hz The device is in the bootloader state
4.2 MCS2 Main Controller Connectors
4.2.1 Power Supply Connectors
The MCS2 controller is supplied by a 12 V power supply. Please use the power supply that has
been shipped with the MCS2 controller and make sure it matches the current and power rating,
which is specified on the label of the controller (on the bottom or back side of the housing).
3-/6-Channel Controller
Tip
Ring
Figure 4.1: DC power connector for power supply
22
MCS2 User Manual
