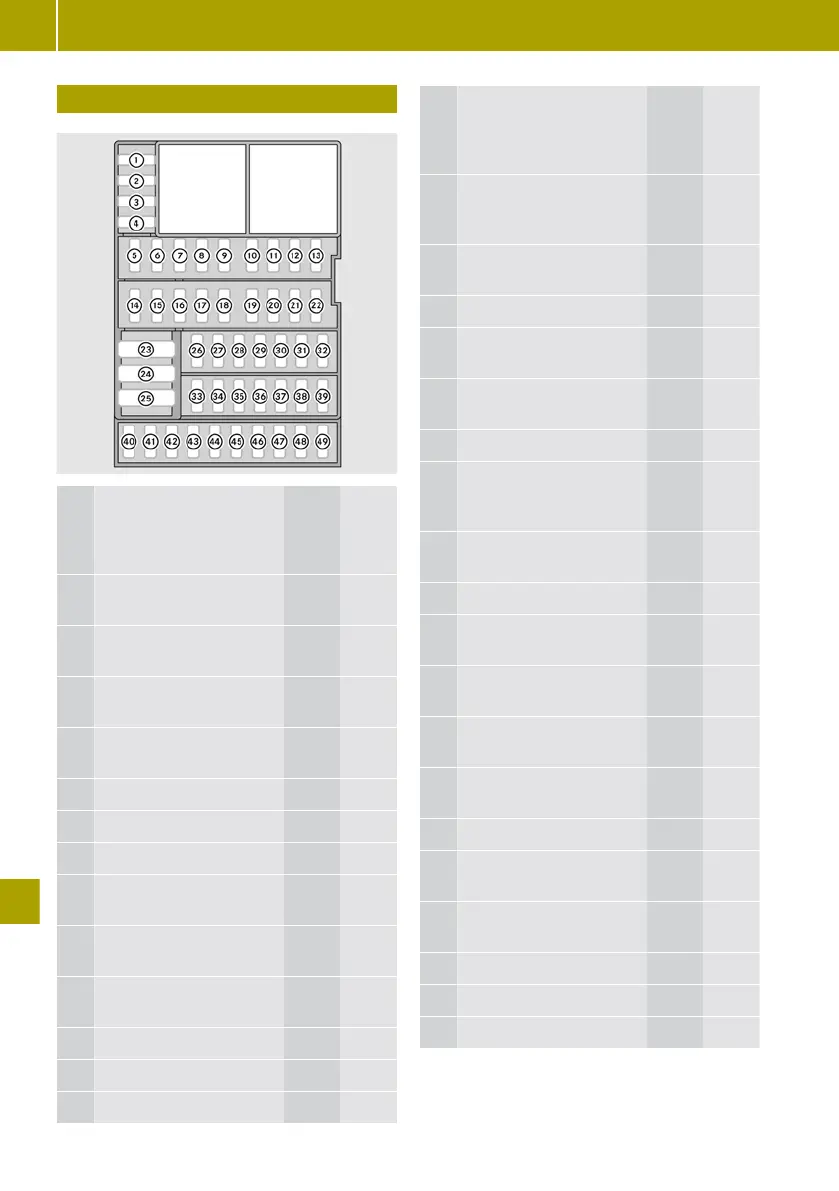

Fuse allocation
No
.
Consumer Cur-
rent
Col-
our
cod-
ing
1 Starter motor 5 A Brow
n
2 Power steering control
unit
5 A Brow
n
3 Lighting control unit 5 A Brow
n
4 Airbag 5 A Brow
n
5 ‑ ‑ ‑
6 Instrument cluster 10 A Red
7 Horn, alarm system 15 A Blue
8 Power supply control
unit
10 A Red
9 Power supply control
unit
10 A Red
10 Central control unit 20 A Yel-
low
11 Turn signals 15 A Blue
12 Central control unit 10 A Red
13 Central control unit 15 A Blue
No
.
Consumer Cur-
rent
Col-
our
cod-
ing
14 Power windows (auto-
matic reversing fea-
ture)
30 A Gree
n
15
ESP
®
5 A Brow
n
16 Interior lighting 10 A Red
17 Immobiliser 3 A Vio-
let
18 Electrical exterior
mirror
5 A Brow
n
19 Brake lamps 10 A Red
20 Parking aid, headlamp
settings, Lane
Keeping
Assist
15 A Blue
21 Engine control unit 5 A Brow
n
22 Rear window wiper 15 A Blue
23 Starter motor 30 A Gree
n
24 Central locking 40 A Oran
ge
25 Front windscreen wip-
ers
30 A Gree
n
26 Radio 20 A Yel-
low
27 ‑ ‑ ‑
28 12 V socket, cigarette
lighter
15 A Blue
29 Power supply control
unit
5 A Brow
n
30 Horn 15 A Blue
31 ‑ ‑ ‑
32 Central locking 15 A Blue
184
Fuse allocation
