HAT600N Series ATS Controller User Manual
HAT600N Series ATS Controller Version 1.1 2019-09-05 Page 22 of 24

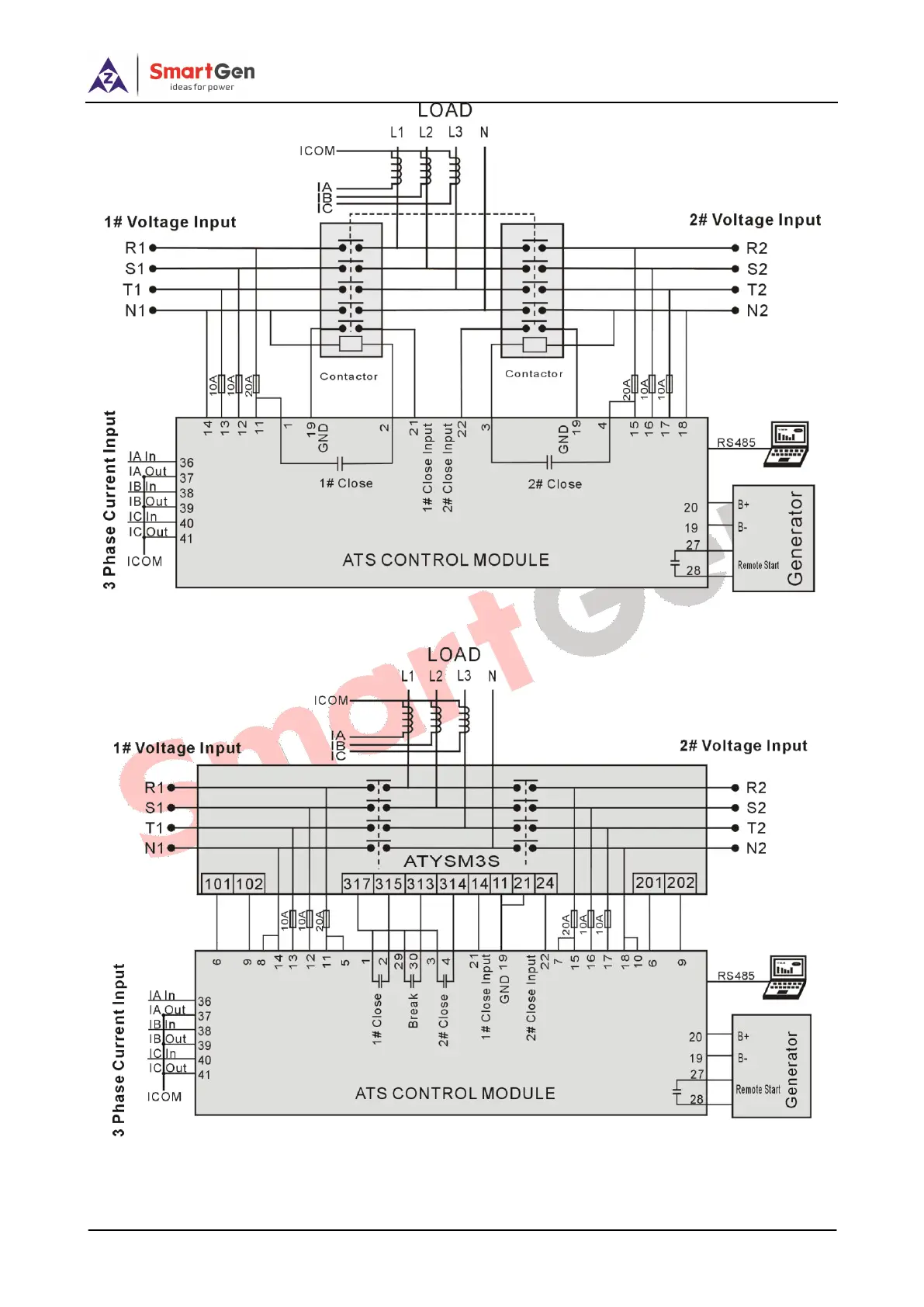

Fig. 7 Contactor Wiring Diagram
Fig. 8 ATYSM3S Wiring Diagram
